Description

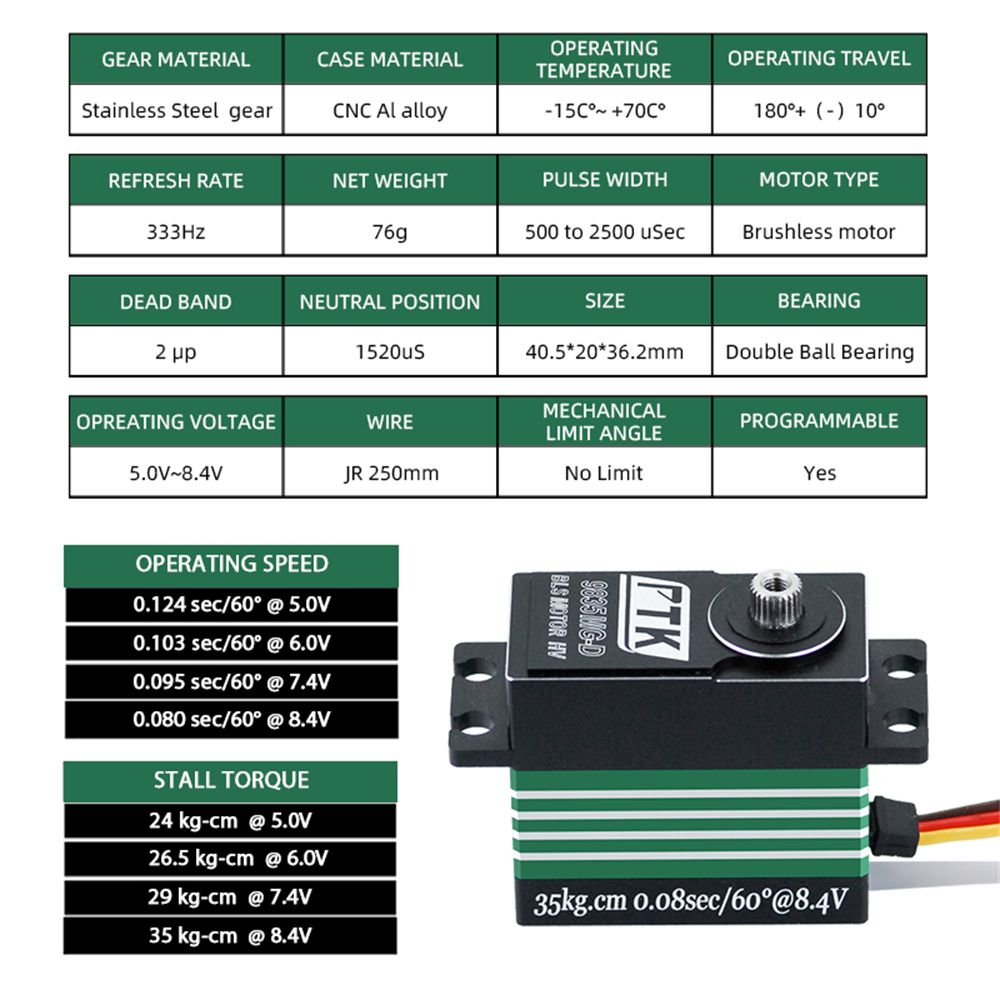

Specification:

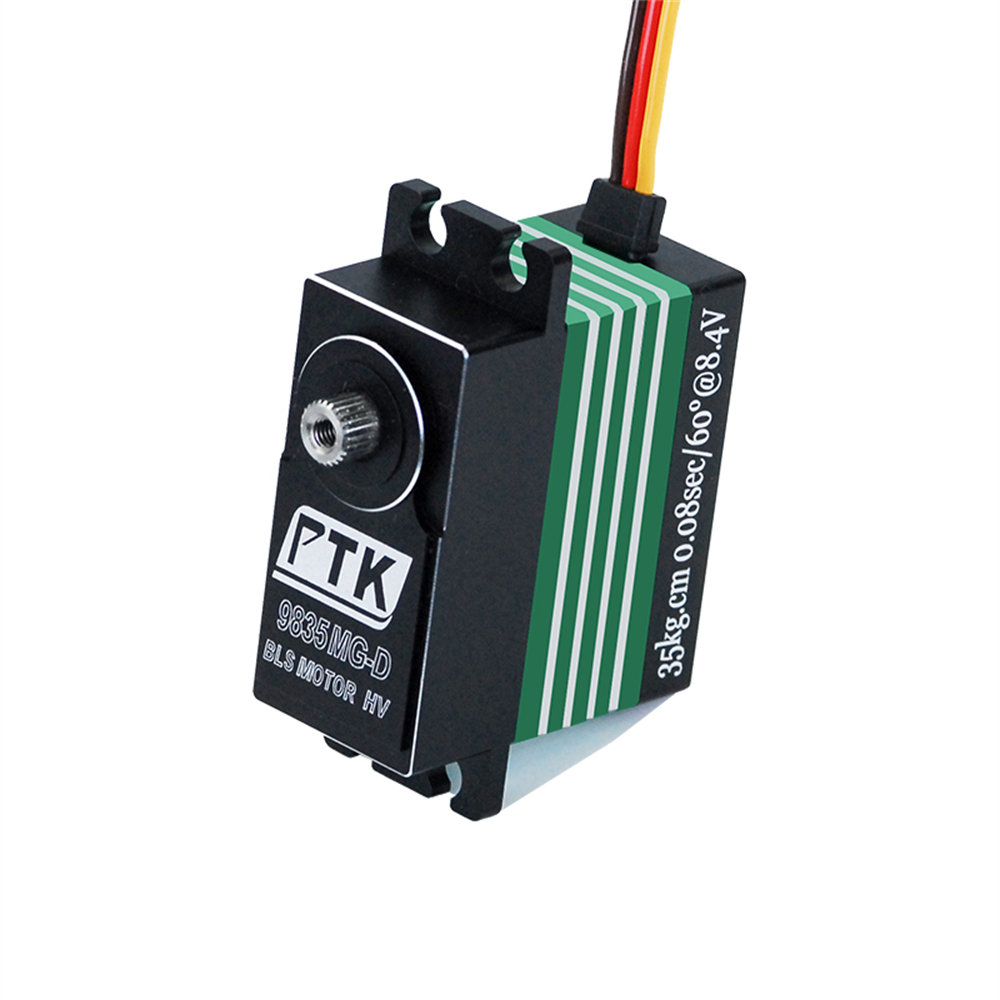

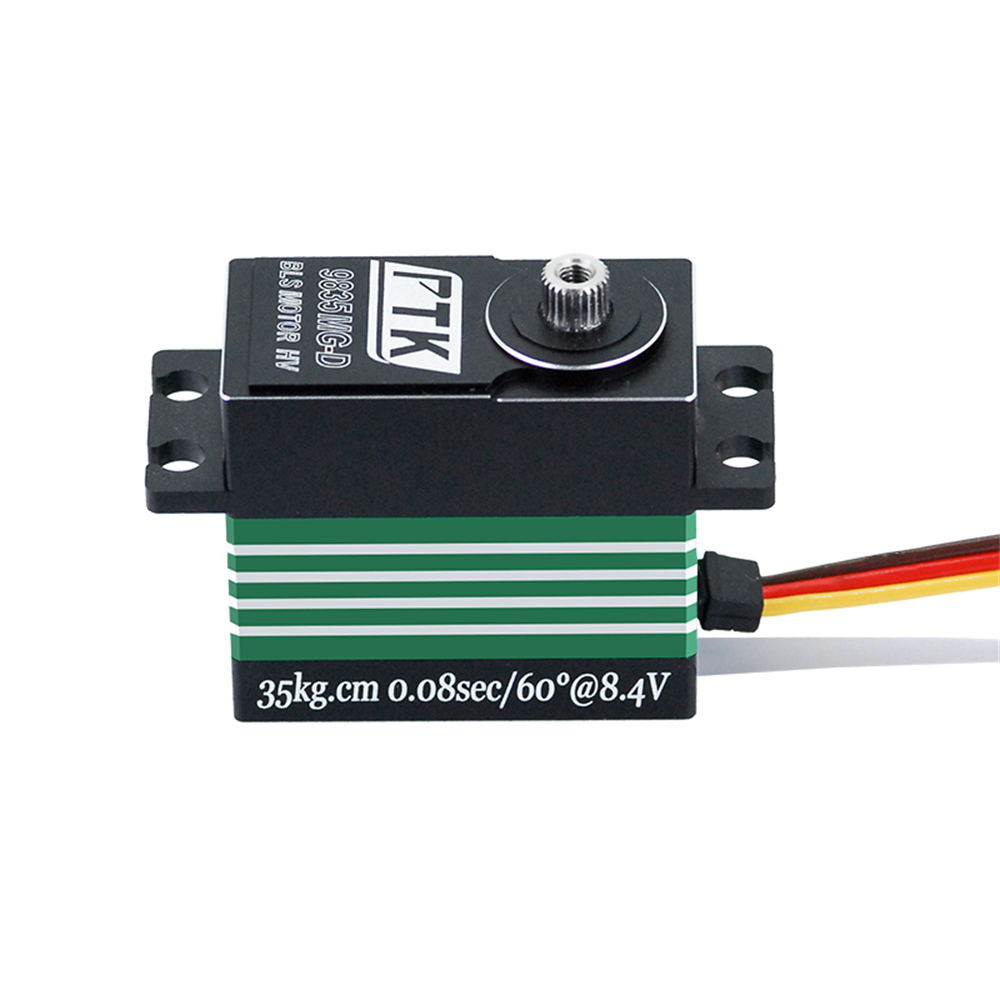

Brand: PTK
Model: 9835 MG-D

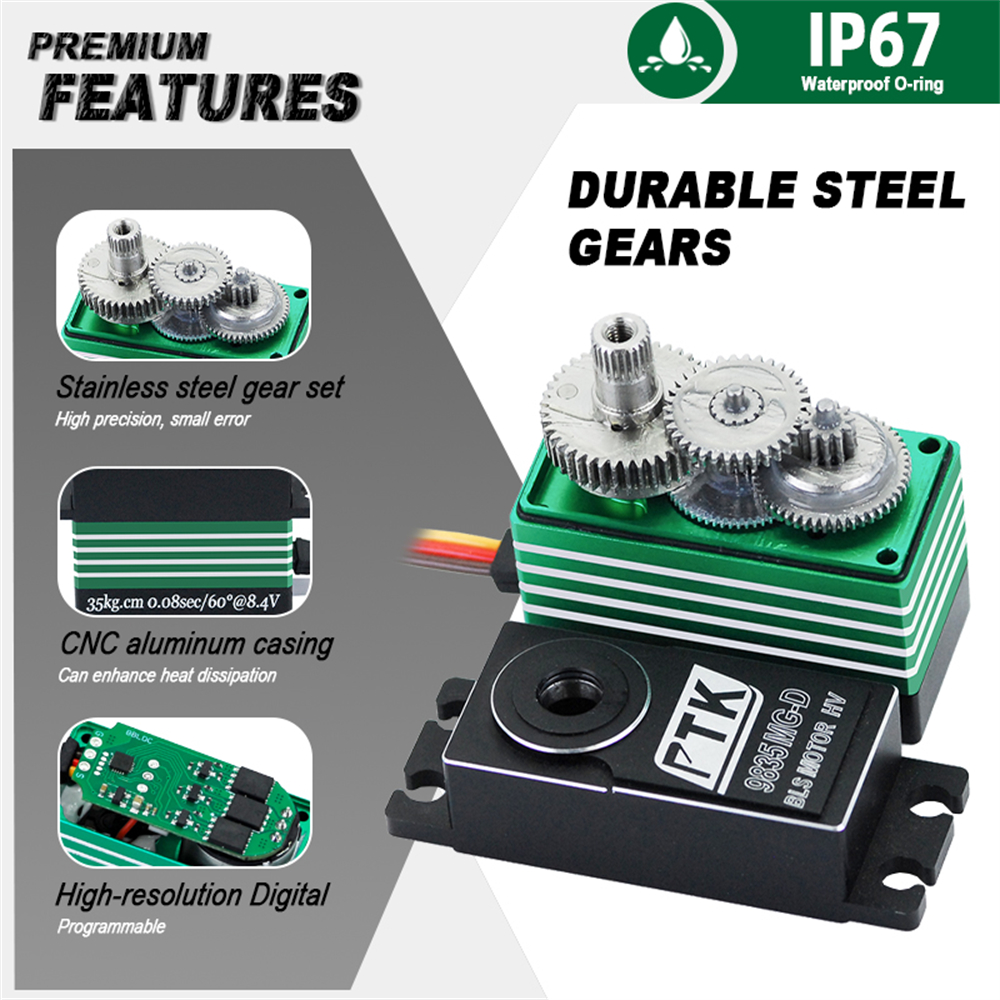

Gear Material: Stainless Steel Gear
Case Material: CNC Al Alloy
Operating Temperature: -15C ~ +70C
Operating Travel: 180 (+/- 10)
Refresh Rate: 333Hz
Net Weight: 76g

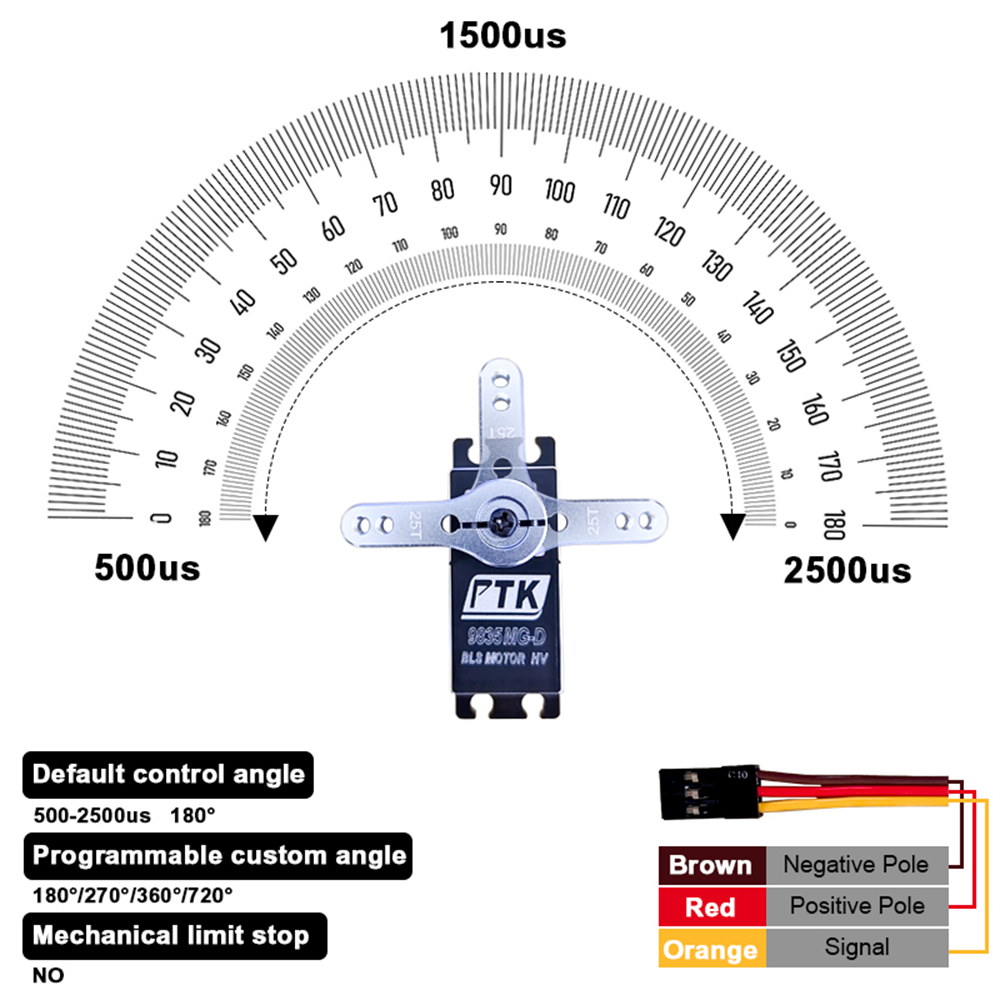

Pulse Width: 500 to 2500 uSec
Motor Type: Brushless Motor
Dead Band: 2 s
Neutral Position: 1520uS

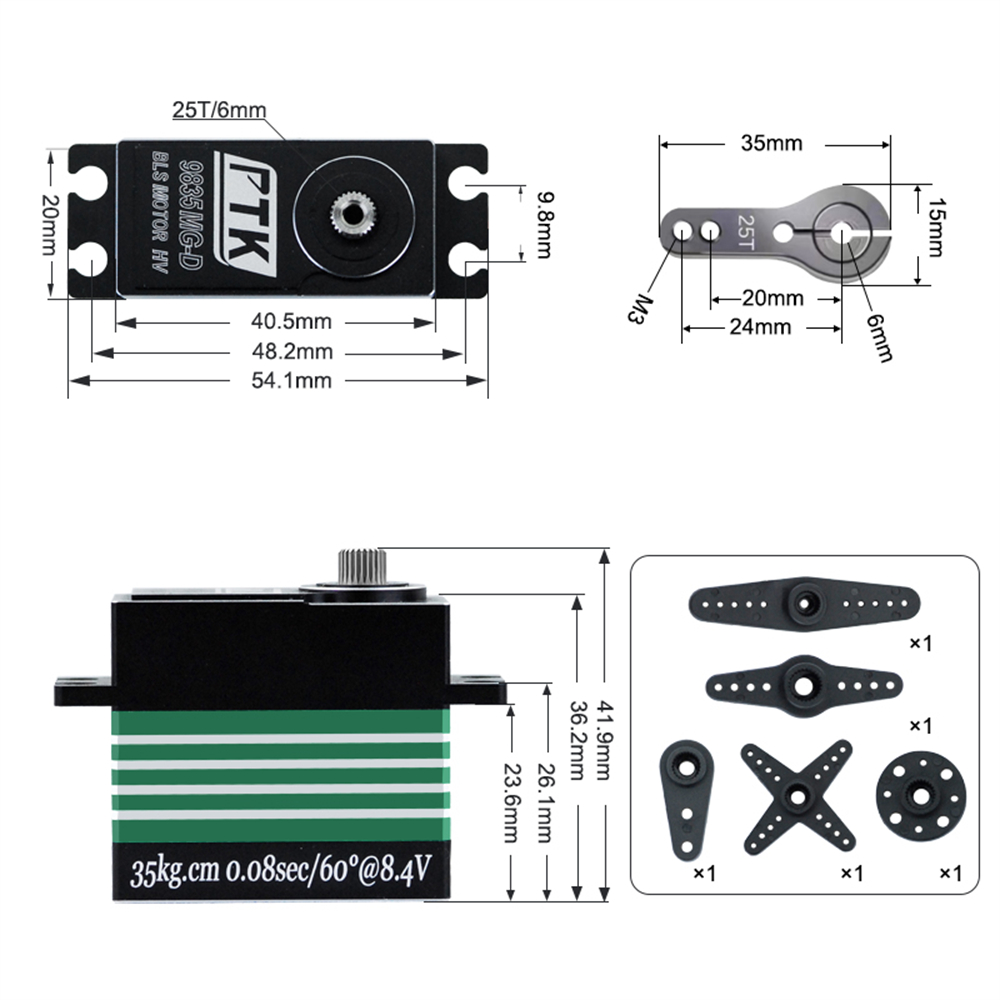

Size: 40.5x20x36.2mm
Bearing: Double Ball Bearing
Operating Voltage: 5.0V ~ 8.4V
Wire: JR 250mm
Mechanical Limit Angle: No Limit
Programmable: Yes
Operating Speed @ 5.0V: 0.124 sec/60
Operating Speed @ 6.0V: 0.103 sec/60
Operating Speed @ 7.4V: 0.095 sec/60
Operating Speed @ 8.4V: 0.080 sec/60
Stall Torque @ 5.0V: 24 kg-cm
Stall Torque @ 6.0V: 26.5 kg-cm
Stall Torque @ 7.4V: 29 kg-cm
Stall Torque @ 8.4V: 35 kg-cm

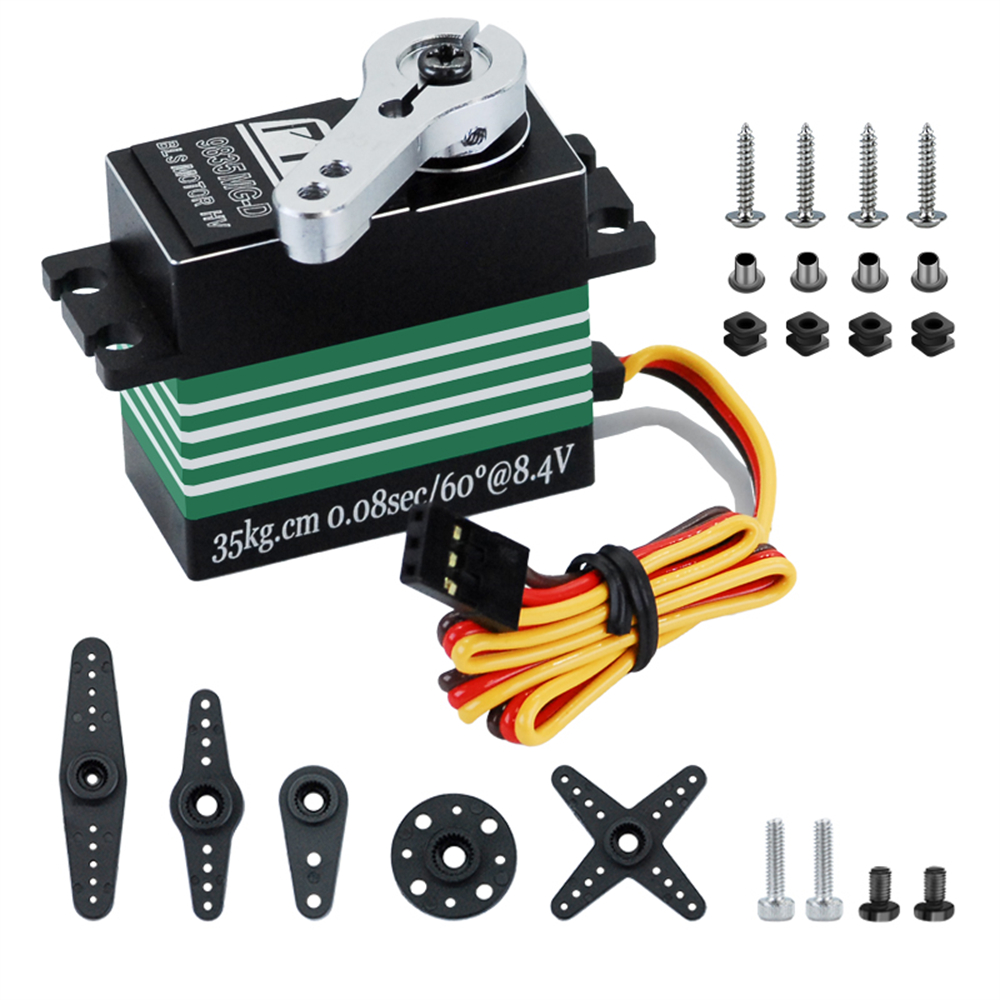

Package included:
1 x RC Servo
