Description
Specification:
Brand: PTK

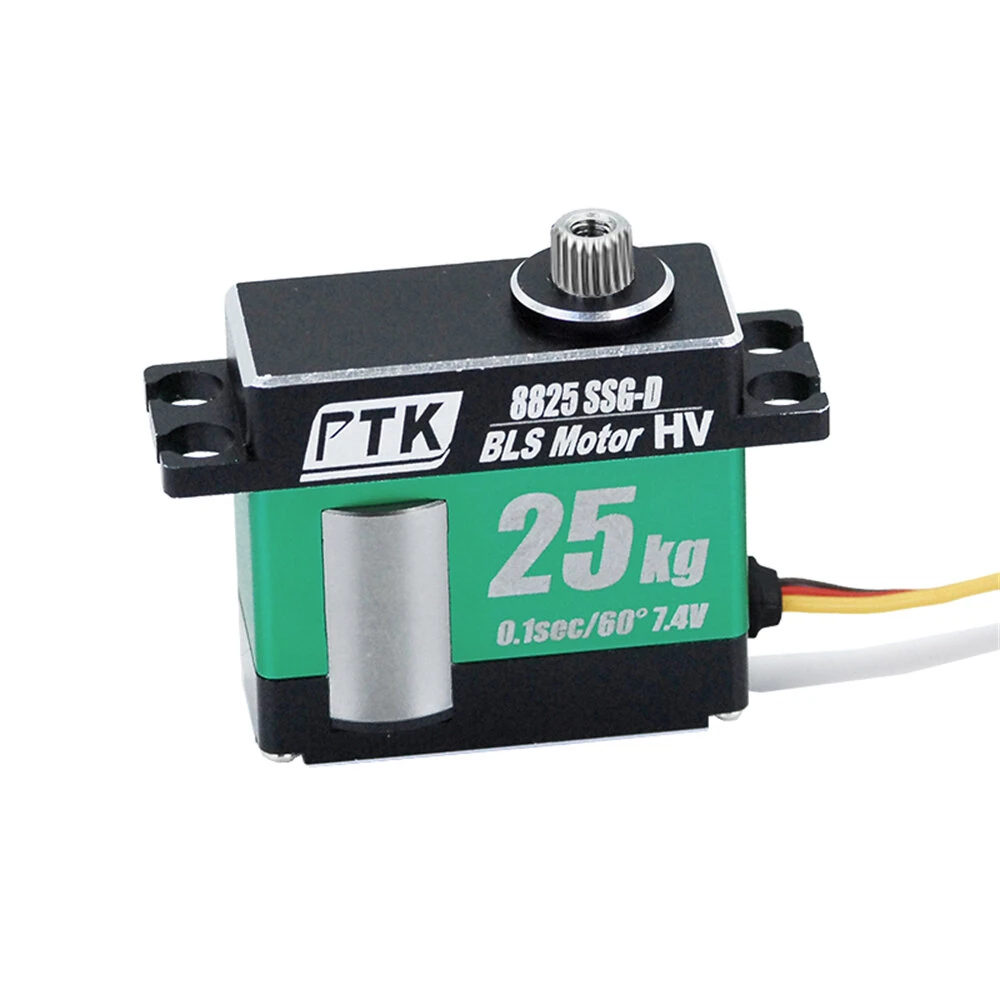

Model: 8825 SSG-D
Gear Material: Stainless Steel Gear
Case Material: CNC Al Alloy
Operating Temperature: -15C ~ +70C
Operating Travel: 180 10
Refresh Rate: 333Hz
Net Weight: 52g
Pulse Width: 500 To 2500 Sec
Motor Type: Brushless Motor
Dead Band: 2 s
Neutral Position: 1520 s
Size: 35.5x15x32.4mm
Bearing: Double Ball Bearing
Operating Voltage: 6.0V ~ 8.4V
Wire: JR 300mm
Mechanical Limit Angle: No Limit
Programmable: Yes
Operating Speed:
0.125 Sec/60 @ 6.0V
0.115 Sec/60 @ 7.4V
0.101 Sec/60 @ 8.4V
Stall Torque:
17 Kg-Cm @ 6.0V
20 Kg-Cm @ 7.4V
25 Kg-Cm @ 8.4V
Package included:
1 x RC Servo
