Description

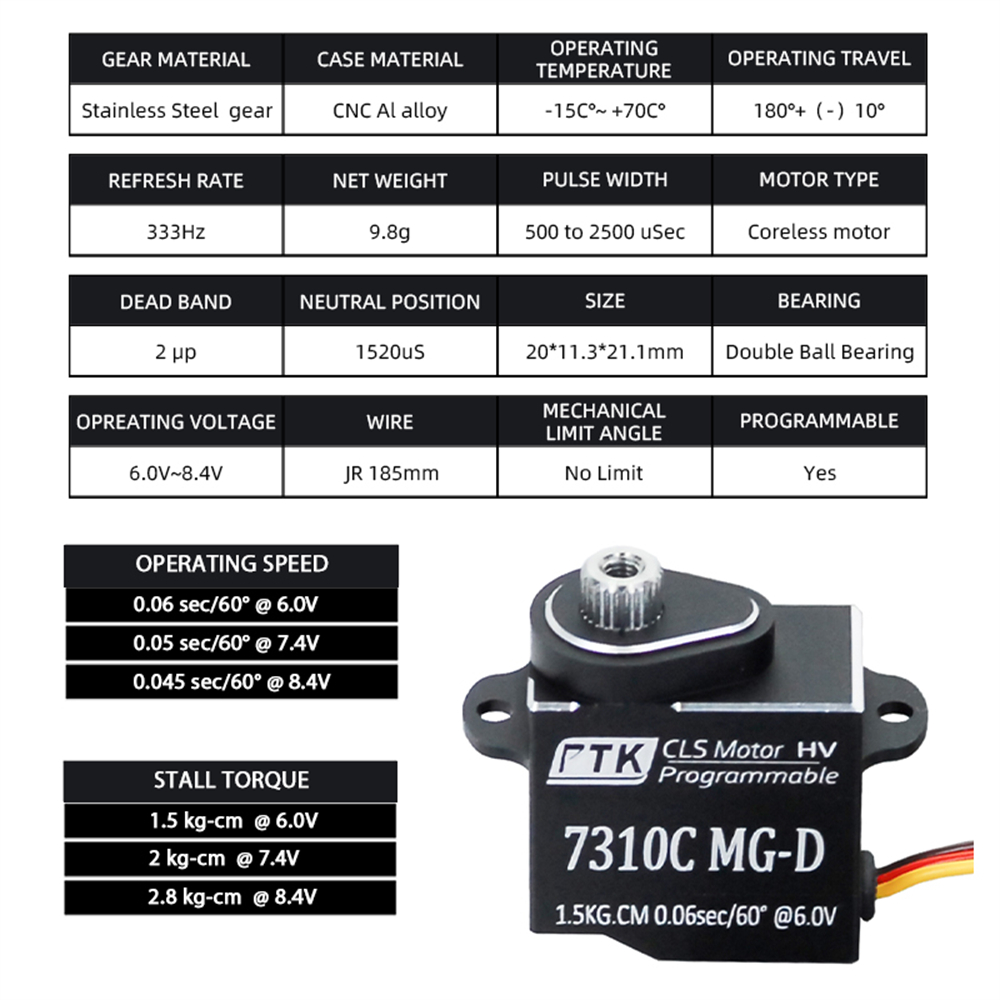

Specification:

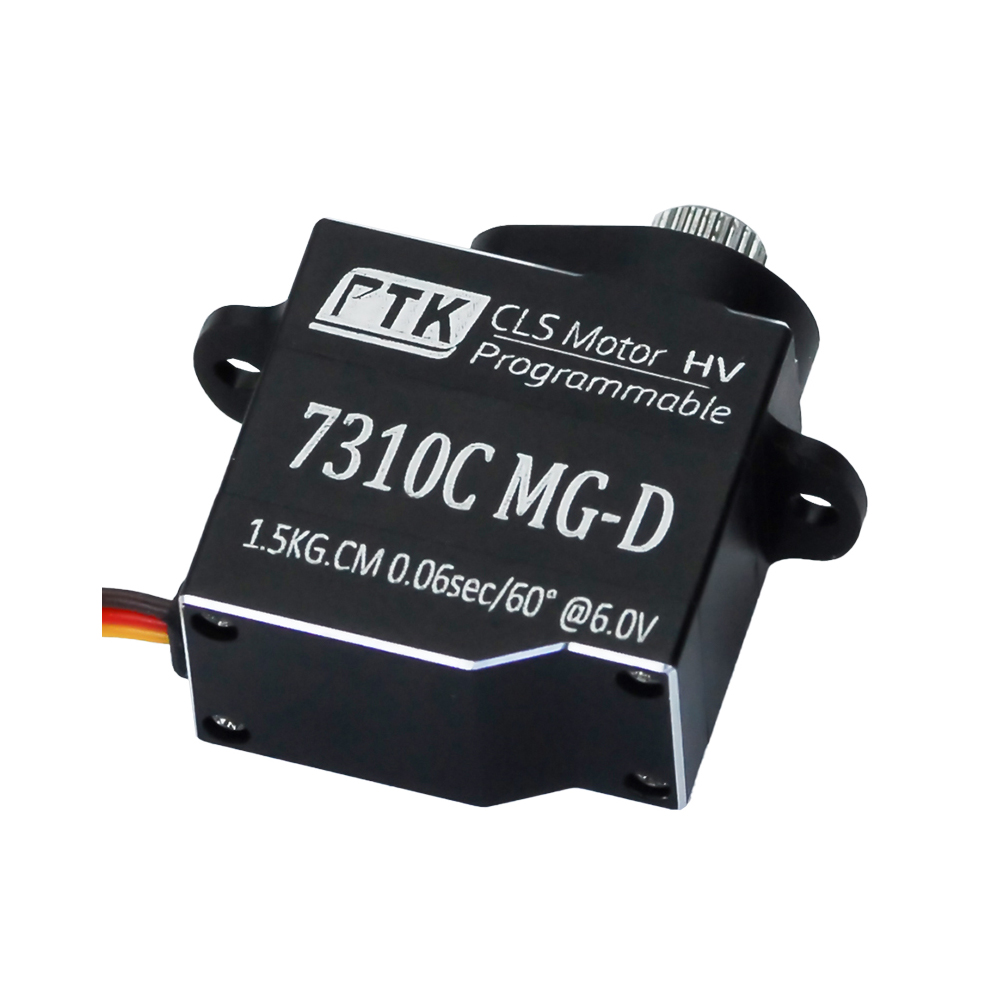

Brand: PTK
Model: 7310C MG-D
Item Name: RC Servo

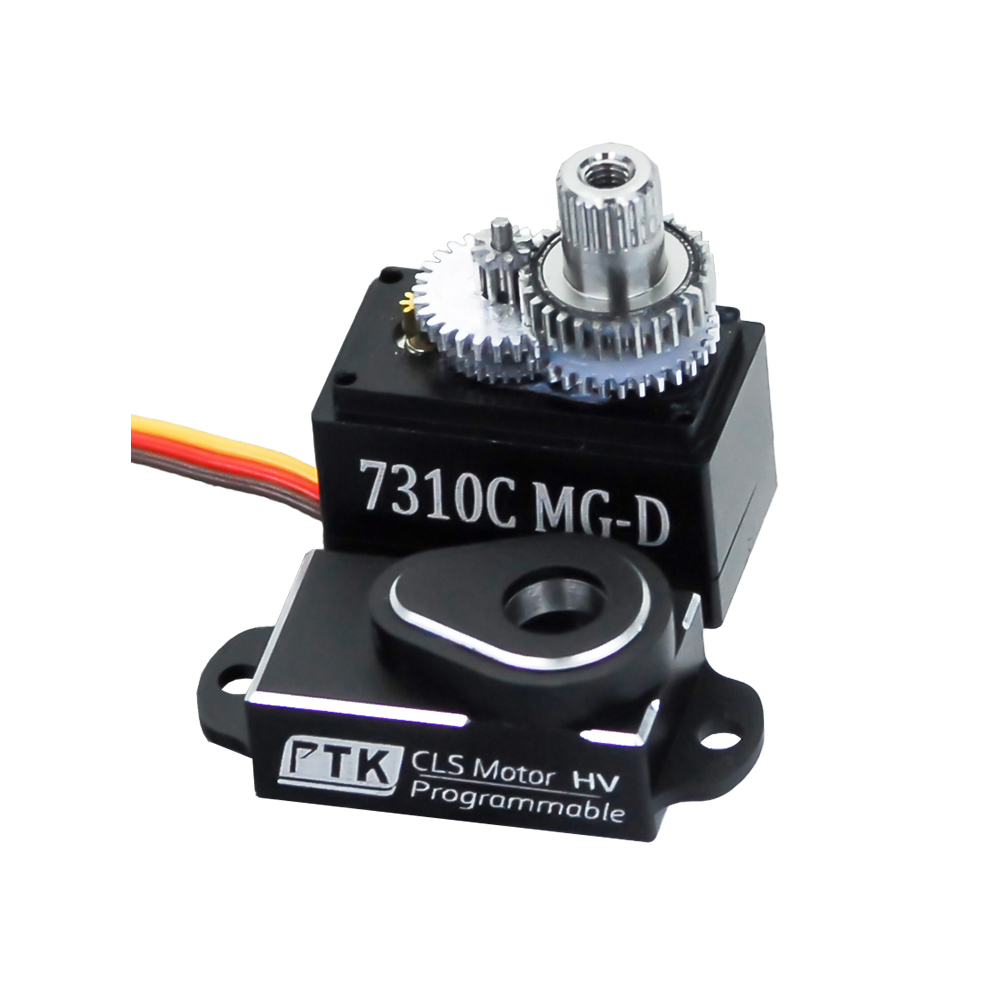

Gear Material: Stainless Steel Gear
Case Material: CNC Al Alloy
Operating Temperature: -15C ~ +70C
Operating Travel: 180 10
Refresh Rate: 333Hz
Net Weight: 9.8g
Pulse Width: 500 To 2500 Sec
Motor Type: Coreless Motor
Dead Band: 2 s
Neutral Position: 1520 s

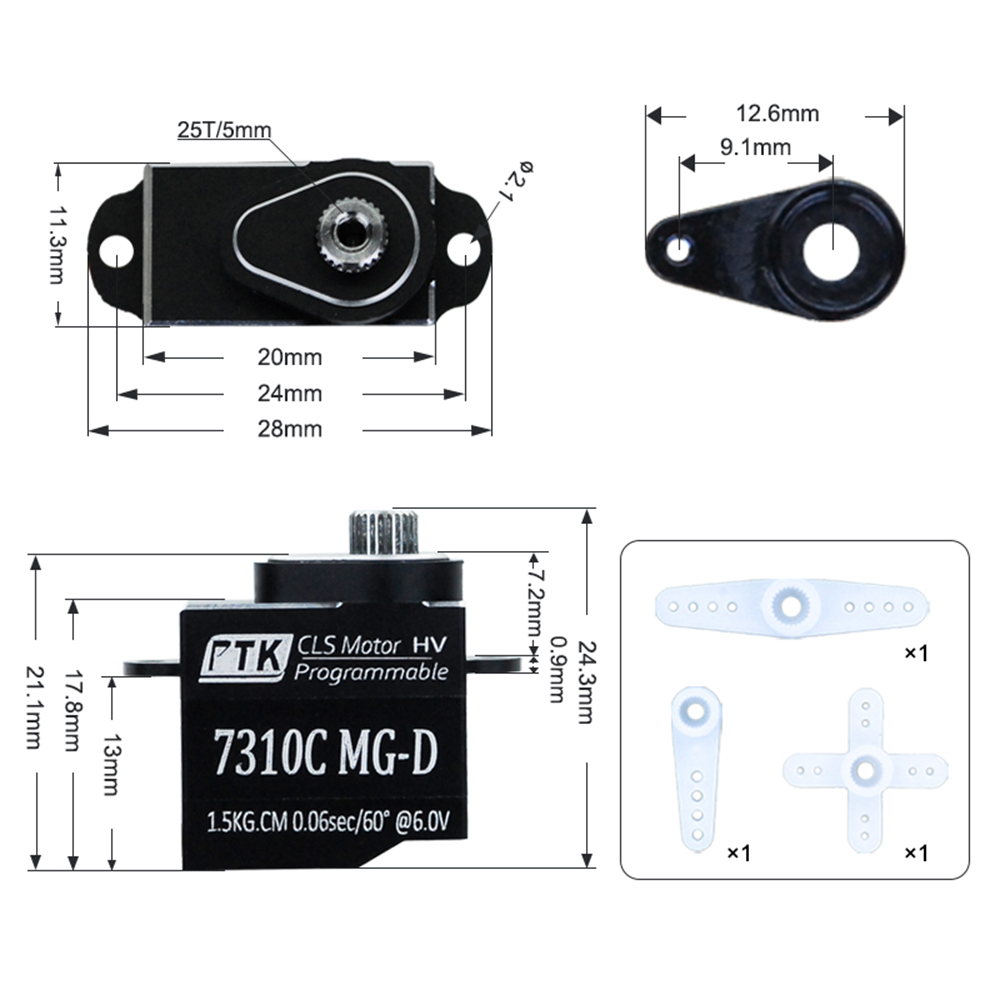

Size: 20*11.3*21.1mm
Bearing: Double Ball Bearing
Operating Voltage: 6.0V ~ 8.4V
Wire: JR 185mm
Mechanical Limit Angle: No Limit
Programmable: Yes
Operating Speed @ 6.0V: 0.06 Sec/60
Operating Speed @ 7.4V: 0.05 Sec/60
Operating Speed @ 8.4V: 0.045 Sec/60
Stall Torque @ 6.0V: 1.5 Kg-cm
Stall Torque @ 7.4V: 2 Kg-cm
Stall Torque @ 8.4V: 2.8 Kg-cm

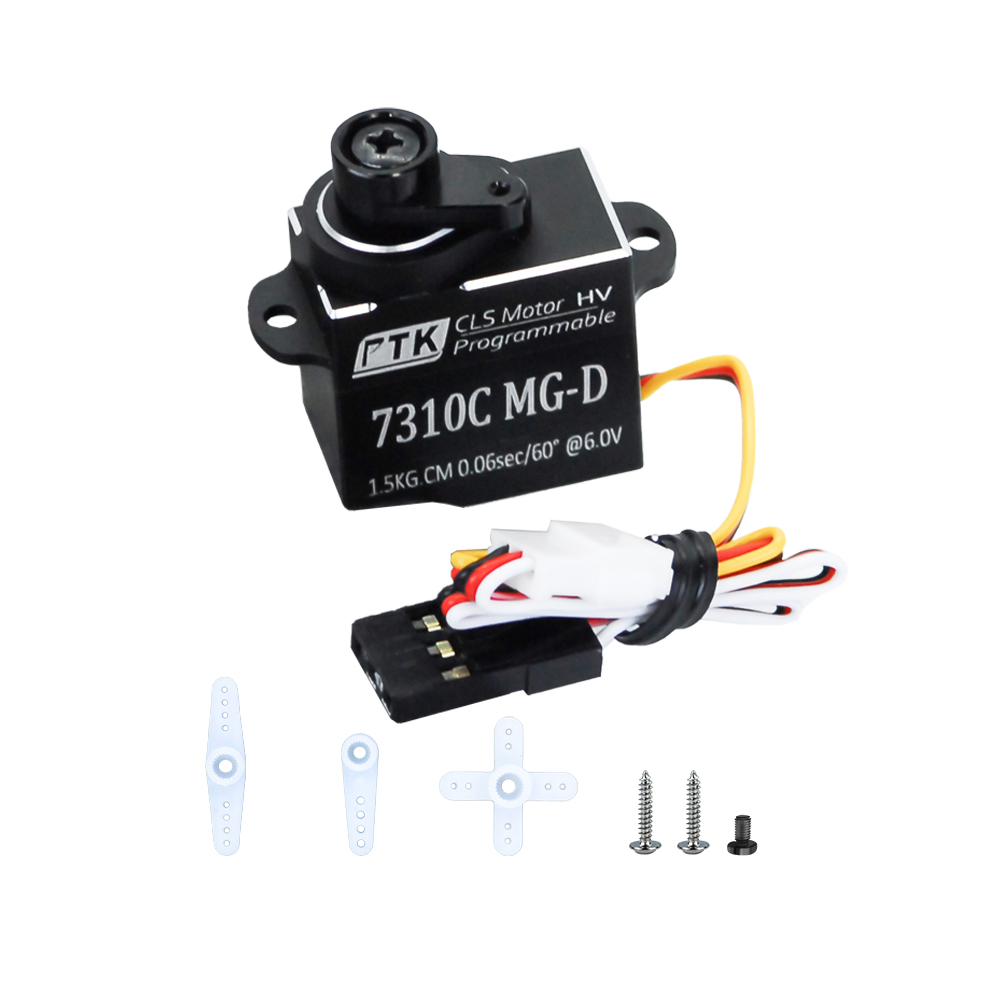

Package included:
1 x RC Servo
