Description
Specification:
Max Angle:160
Pulse width:1000-2000s=90
Pulse width:500-2500s=160
Dead band: 6s
Working frequence: 1520s / 330hz
Motor: Cored Motor
Operating Speed (6.0V): 0.18sec/60
Operating Speed (8.4V): 0.16sec/60
Stall Torque (6.0V): 39kg.cm
Stall Torque (8.4V): 52kg.cm
Dimensions: 63.1X32.2X55.9mm
Weight: 163 g
Connector Wire Length: JR 265 mm
Bearing: 2BB
Gear Teeth:17T
Features:
160 Angle 50kg digital servo
High performance digital standard servo
High-precision Taiwan-made aluminium gears with hard anodizing
CNC aluminium middle Shel
Package Included:

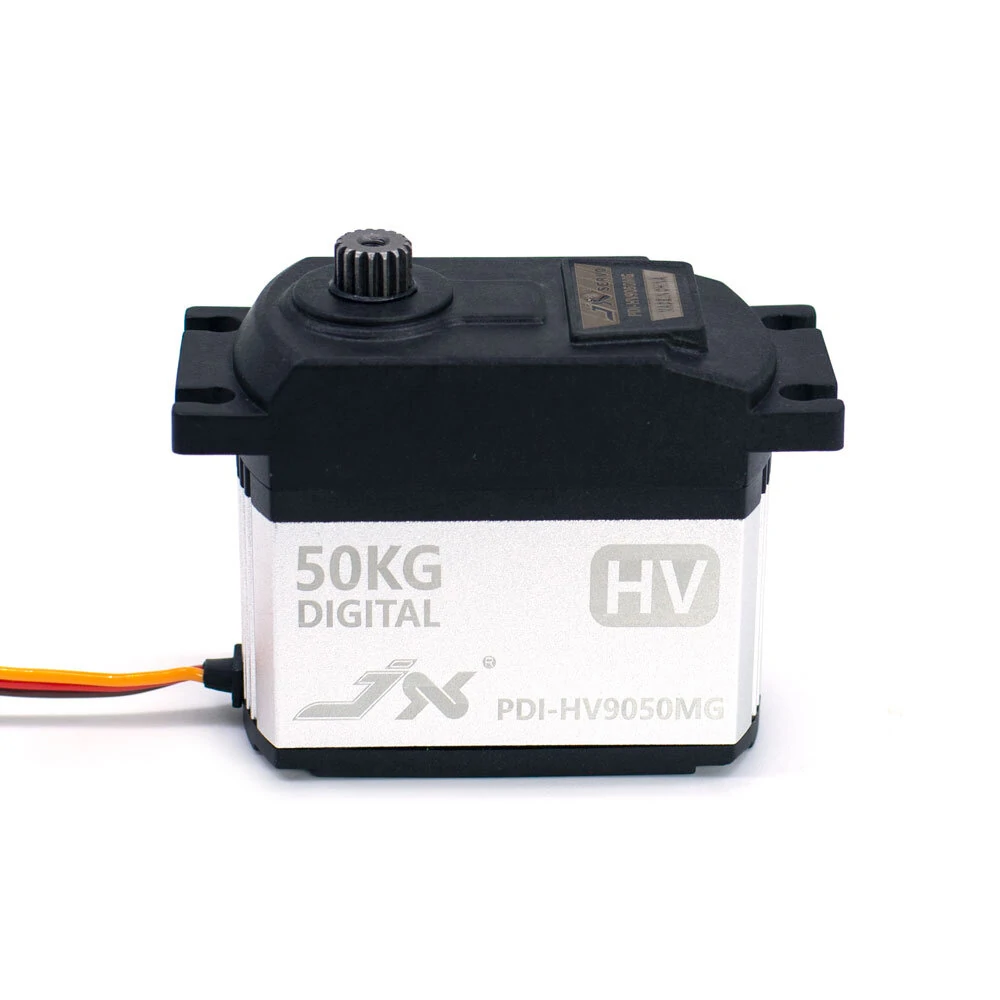

1 x JX PDI-HV9050MG Digital Servo
