Description
Specification:

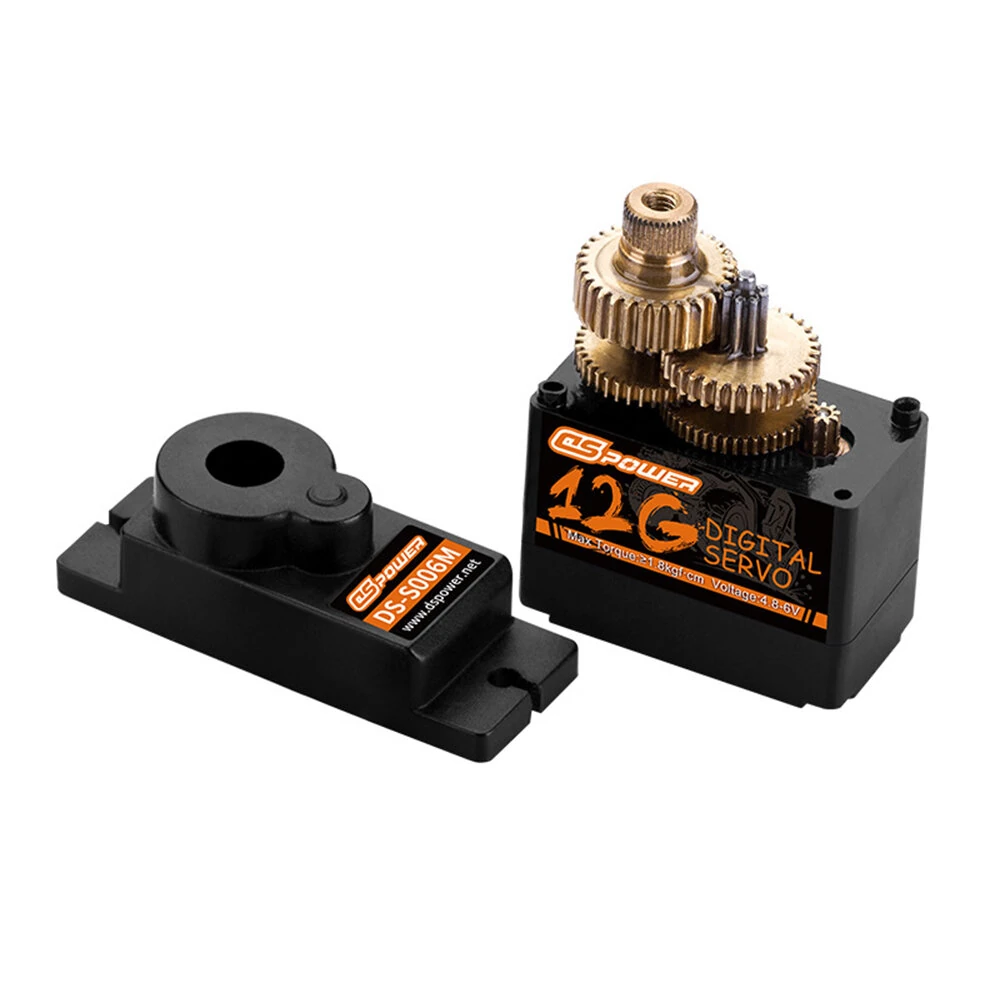

Model: DS-S006M
Operating Voltage: 4.8-6V DC
Static Current: 20mA
Stall Current: 1.1A
Stall Torque: 2.4kgfcm
Rotating Direction: CCW (5002500s)
No-load Speed: 0.14 sec/60
Pulse Width Range: 500~2500s
Operating Travel Angle: 180
Return Angle Deviation: 1
Weight: 14g
Communication Interface: PWM
Wire Length: 250mm
Output Shaft: 40T/4.85mm
Plug: JR2.54
Package included:
1 x RC Servo
