Description
Specifications:

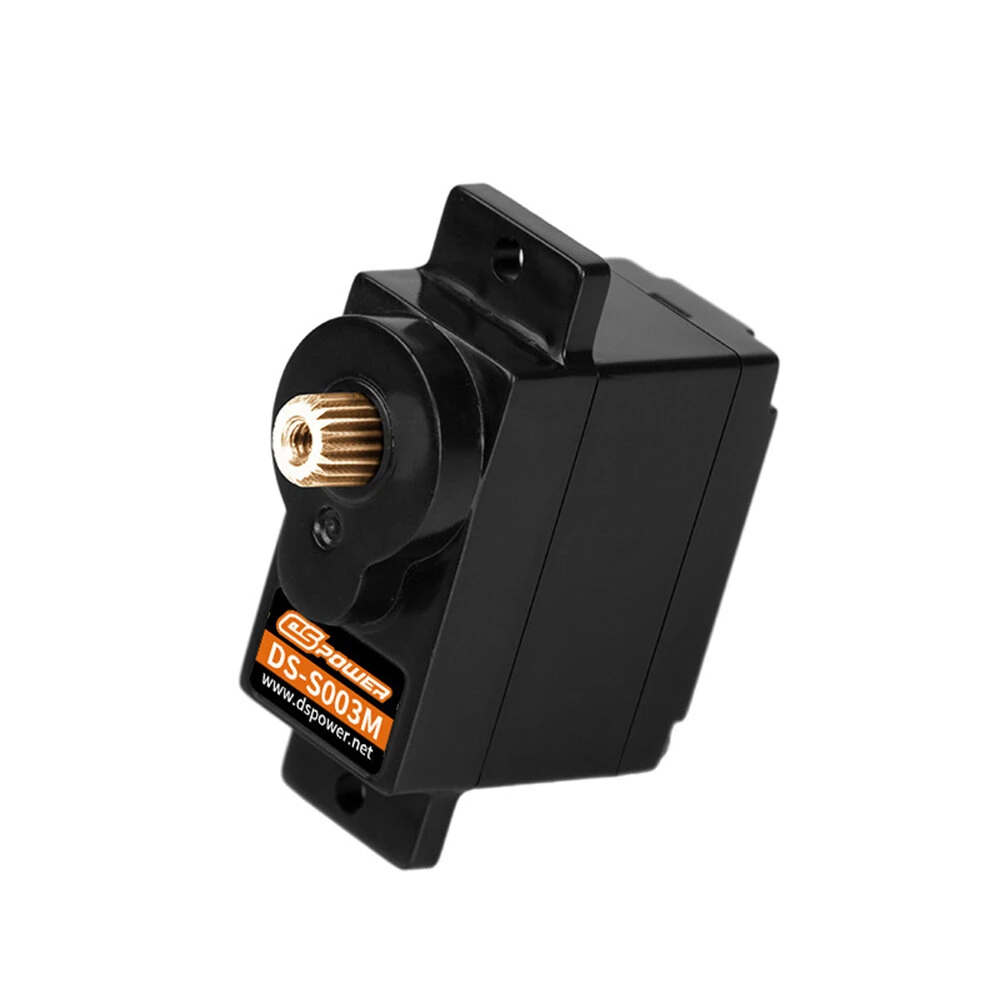

Brand: DS Power
Model: DS-S003M
Operating Voltage: 4.8V – 6.0V DC
No Load Current: 60mA (4.8V), 70mA (6.0V)
Stall Current: 900mA (4.8V), 1A (6V)
Rated Torque: 0.5kgfcm (4.8V), 0.6kgfcm (6.0V)
Rotating Direction: CCW, pulse width 1000~2000s
Operating Travel Angle: 9010
Mechanical Limit Angle: 360
Return Angle Deviation: 1
Weight: 7.8g 0.5g
Communication Interface: PWM
Output Shaft Specification: 28T/3.90mm
Cable Length: JR Connector/2005mm
Package included:
1 x RC Servo
