Description

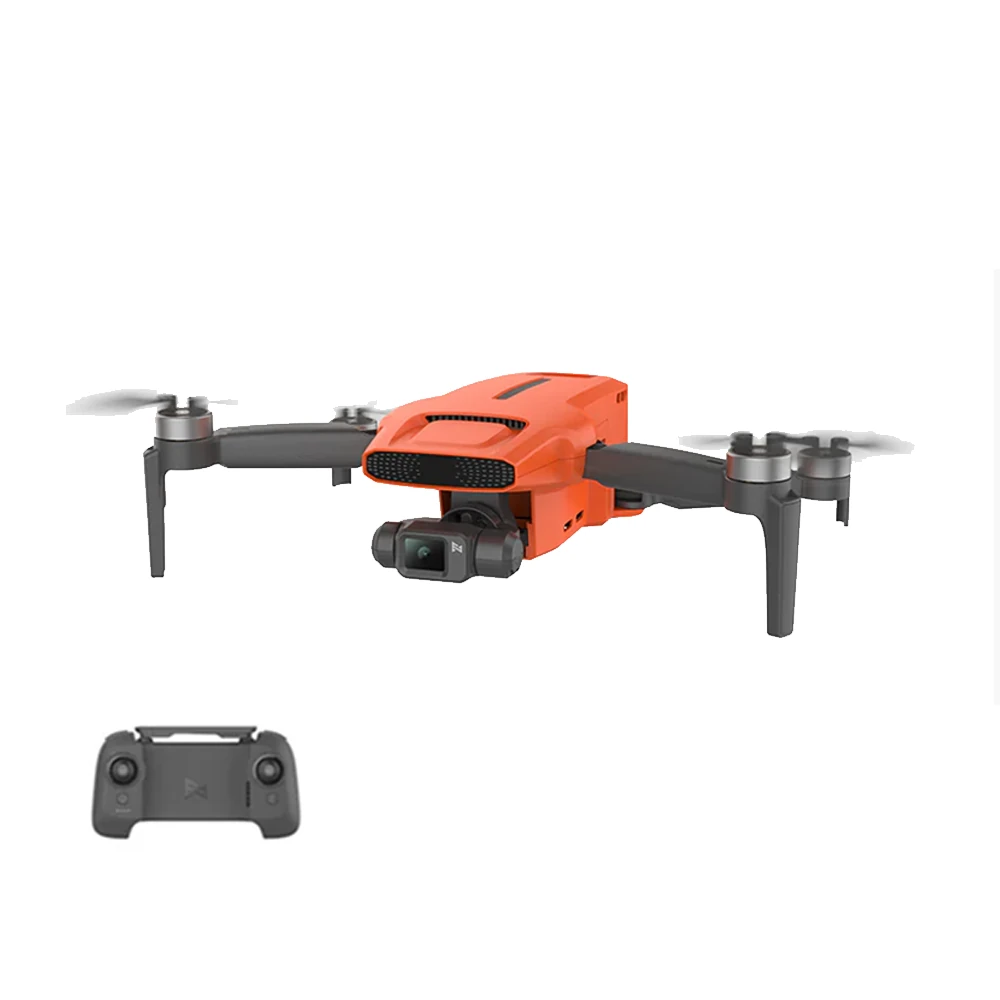

FIMI MINI 3 SE SoLink 9KM FPV With 4K 30fps Camera 3-axis Mechanical Gimbal 29mins Flight Time Visual Tracking 250g Ultralight Foldable RC Drone Quadcopter RTF
Specifications:
Aircraft
|
Dimensions (without propellers) |
145 x 85 x 56mm (Folded) 200 x 145 x 56mm (Unfolded) |
| Color | Orange | |
| Diagonal Distance |
214mm | |
| Takeoff Weight (with battery) |
Approx. 245g |
|
| Max Ascension Speed | 4m/s | |
| Max Descent Speed | 2m/s | |
|
Max Flying Speed |
16m/s (in a windless environment at sea level ) |
|
| Max Takeoff Altitude |
≤ 4000m |
|
| Hovering Accuracy |
Vertical: ±0.1m (when Vision Positioning is active) ±0.5m (when GPS Positioning is active) Horizontal: ±0.3m (when Vision Positioning is active) ±0.5m (when GPS Positioning is active) |
|
| Max Tilt Angle | 35° | |
| Max Wind Speed Resistance | 10.7m/s | |
| Max Hovering Time | 29 minutes | |
| Maximum Flight Time |
32mins |
|
| GNSS | GPS/Galileo/BeiDou/GLONASS | |
| Operation Frequency |
5.725 – 5.825GHz |
|
| Operating Temperature |
0~40℃ |
|
Gimbal Camera
|
Three-axis Mechanical Gimbal |
-110° ~ 40° (Pitch)-40° ~ 40° (Roll)-40° ~ 40° (Yaw) |
| Controllable Rotation Range |
10° ~ -90° (Pitch) |
|
| Angular Vibration Range | ±0.01° | |
| Image Sensor | 1/2.5-inch CMOS | |
| Lens |
FOV 94° |
|
| Aperture | F / 2.2 | |
| Format Length | 2.35mm |
|
| Format Equivalent |
20mm |
|
| Focus | 0.8m to ∞ |
|
| Effective Pixels | 12 million pixels | |
| ISO Range | Video 100-6000Photo 100-6400 | |
| Shutter Speed | 1/8000s – 2s | |
| Max Photo Size | 4000 x 3000 | |
| Max Video Resolution | 3840 x 2160 @30/25/24fps | |
| Max Video Bitrate | 100Mbps | |
| Supported File System |
FAT32/exFAT |
|
| Photo Format |
JPEG |
|
| Video Format |
MP4 |
|
| Digital Zoom | 6X | |
| Recommended Memory Card |
Micro SD 8-256GB (U3 and above) |
|
Remote Controller
|
Model |
FMYKQ04A3 |
| Weight | About 260g | |
| Dimensions |
165 x 89 x 47mm |
|
| Operation Frequency |
2.4000 GHz – 2.4835 GHz5.725 GHz – 5.850 GHz |
|
| Battery Type | Li-ion | |
| Capacity | 3500mAh | |
| Nominal Voltage | 3.7V | |
| Input |
5V=2A |
|
| Max Battery Life | 8 hours (without charging the mobile device)4 hours (charging the mobile device) |
|
| Max Signal Effective Range FCC(No interference, No obstruction) |
Approximately 9KM |
|
| Minimum Latency | Approx. 120 milliseconds | |
| Supported Mobile Device Interface Types | Lighting,USB-C | |
| Operating Temperature |
0 – 40℃ |
|
| Charging Temperature | 5 – 40℃ |
|
Intelligent Flight Battery
|
Battery Type |
Li-ion 2S |
| Weight |
Approx. 85g |
|
| Capacity |
2200mAh |
|
| Nominal Voltage |
7.7V |
|
| Charging Limited Voltage |
8.8V |
|
| Energy |
16.92Wh |
|
| Charging Temperature Range |
5 – 40℃ |
|
APP |
FIMI Navi Mini Mobile Device System Requirements |
iOS 12.0 or later, Android 9.0 or later |
Features:
mso-font-kerning:1.0000pt;’>1. 250g-Class Ultralight Designmso-font-kerning:1.0000pt;’>
mso-font-kerning:1.0000pt;’>With a compact and lightweight design under 250g, it doesn’t require training, exams, or flight permits in most areas. It’s as small as a smartphone, highly portable, and folds easily for storage, letting you fly anytime and anywhere you want. *Please refer to local regulations for actul usage.mso-font-kerning:1.0000pt;’>
mso-font-kerning:1.0000pt;’>2. 4K/30fps Videomso-font-kerning:1.0000pt;’>
mso-font-kerning:1.0000pt;’>Capture stunning high dynamic range video in 4K at 30fps, with each frame showcasing fine details. Even the smallest elements are vivid and in 4K ultra-high definition, making every recording appear as a real moment before your eyes.mso-font-kerning:1.0000pt;’>
mso-font-kerning:1.0000pt;’>3. 9km Video Transmissionmso-font-kerning:1.0000pt;’>
mso-font-kerning:1.0000pt;’>The FIMI Mini 3 SE, featuring the new SoLink HD digital transmission technology, offers real-time high-definition transmission up to 9 kilometers away. It supports dual-band switching between 2.4GHz and 5.8GHz, and advanced encoding and decoding optimization techniques reduce latency to just 120 milliseconds. This ensures stable, smooth video transmission and an immersive flying experience.mso-font-kerning:1.0000pt;’>
mso-font-kerning:1.0000pt;’>4. Support USB Type C Fast-Chargingmso-font-kerning:1.0000pt;’>
mso-font-kerning:1.0000pt;’>The USB Type C charging port on the battery supports 9V/3A rapid charging. This enables you to experience fast and convenient charging wherever you are, allowing you to charge your spare batteries effortlessly even while your drone is in flight.mso-font-kerning:1.0000pt;’>
mso-font-kerning:1.0000pt;’>5. Visual Tracking and Other Flight Modesmso-font-kerning:1.0000pt;’>
mso-font-kerning:1.0000pt;’>Supports multiple intelligent flight modes, such as the smart tracking modes, powerful flight plan shooting, SAR mode, precision landing, timelapse, one-tap video, panorama and so on.
mso-font-kerning:1.0000pt;’>
Function: 9KM Distance, 3-axis Gimbal, 29-Minute Flight Time, 250g-Class Ultralight Design, Smart Tracking Modes, One-Tap Video, Night Shooting, Powerful Flight Plan Shootingmso-font-kerning:1.0000pt;’>
mso-font-kerning:1.0000pt;’>
mso-font-kerning:1.0000pt;’>
Package Included:
One Battery Version:1 x MINI 3 SE Quadcopter (with camera)1 x Remote Controller1 x Battery1 x USB Cable2 x Spare Propeller2 x RC Connected Cable1 x Gimbal Cover1 x ManualTwo Batteries Version:1 x MINI 3 SE Quadcopter (with camera)1 x Remote Controller2 x Battery1 x USB Cable2 x Spare Propeller2 x RC Connected Cable1 x Gimbal Cover1 x Manual
