Description

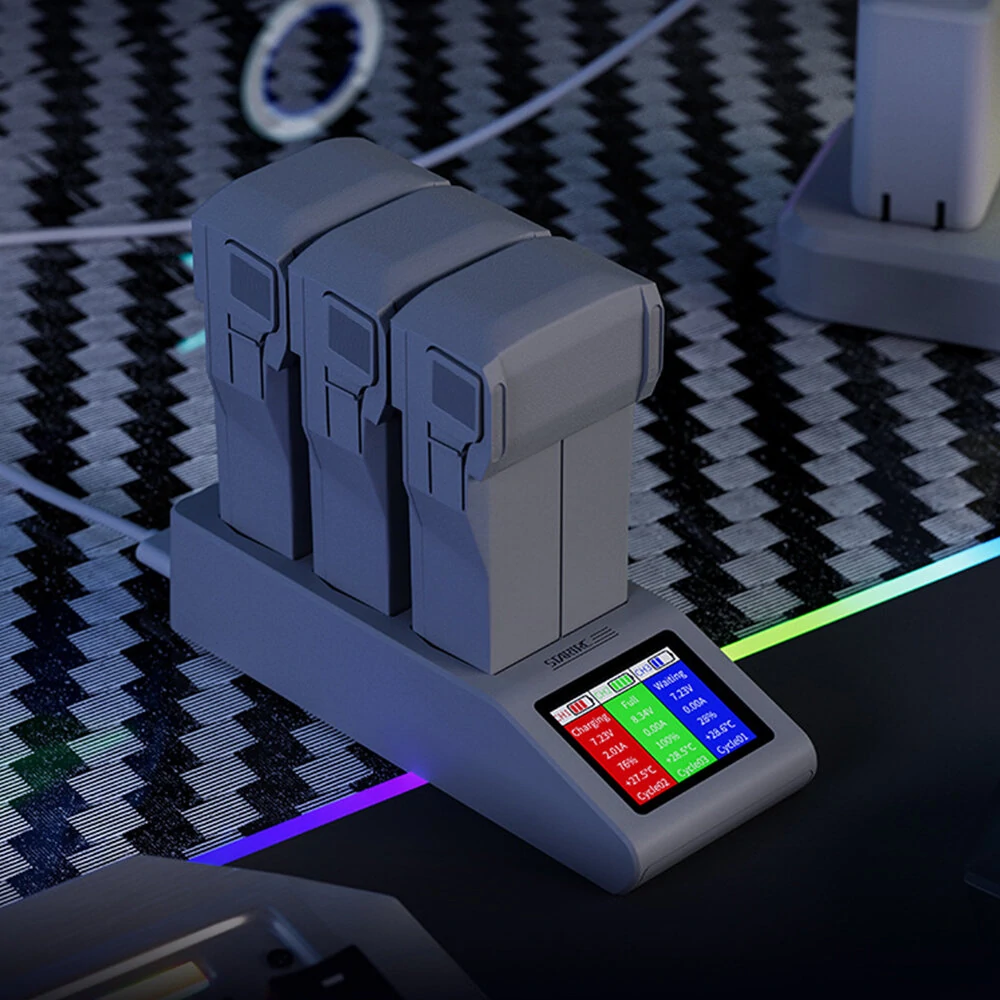

STARTRC 3-in-1 Intelligent Fast Charging Hub Battery Car Charger LED Screen Digital Display Housekeeper Power Supply Station for DJI Mini 4 PRO / Mini 3 PRO RC Drone Quadcopter
Specifications:
Brand Name: STARTRC
Item Name: Screen Charger
Item NO.: ST-1124255
Material: ABS
Color: Grey
Input: 5V / 9V / 12V / 20V 3A, Support PD Fast Charging(Max)
Output: 8.5V 4.0A (Max)
Recommended Charger: DJI 30W USB-C charger or chargers supporting USB PD fast charging protocol
Operating Temperature Range: 7C-40C
Size: 151 x 56 x 33mm
Net Weight: 109g
Package Size: 125 x 40 x 175mm
Package Weight: 195g
Usage: for DJI Mini 4 PRO / Mini 3 PRO / Mini 3 Drone Batteries
Features:
– Compatible with the Mini 3 series battery, including intelligent flight batteries.
– Compact size for easy storage and transportation.
– Charges three batteries sequentially with automatic detection, prioritizing higher battery capacity.
– On-screen charging manager displays voltage, current, battery level, and temperature during charge.
– Easy battery level check via function button no wiring required.
How to Use:
Install the battery into the charging hub, and it works after connecting it (Prioritize charging batteries with high remaining power) .
1. Charging time: single battery with capacity of 2453mAh– 45 minutes.
2. Charging time: single battery with capacity of 3850mAh– 65 minutes.
3. Simultaneously insert 3 batteries with a capacity of 2453mAh–3X45=135 minutes.
4. Simultaneously insert 3 batteries with a capacity of 3850mAh–3X65=195 minutes.
5. Insert the battery into the charging manager and press the function button to check the battery level, without the need for wiring.
Cautions:
1: When charging, please place the charging hub smoothly and do not cover it with other items to ensure the normal heat dissipation of the charging manager;
2: It is prohibited to charge batteries with surface damage to avoid battery short circuits and fire hazards:
3:This product is only for indoor use and should not be exposed to rain or snow;
4: Do not disassemble or assemble the charging manager without permission;
Note:
Package Only the Charger. NOT Included the Batteries!
Package Included:
1 x Charging Hub with Monitor
1 x Charging Cable (USB-A to USB-C)
1 x Charging Cable (USB-C to USB-C)
1 x User Manual
