Description
Description:
H1 PRO as the second generation cost-effective of the Flywing H series flight control system, has a built-in suspended independent IMU and can externally expand dual GNSS modules. It adopts the new generation of control and IMU algorithms, and provides a more stable experience and broader compatibility.
H1 PRO Control System consists of a main controller (built-in suspended IMU, barometer, compass), a serial GNSS module, and a CAN protocol GNSS-Compass module (with high-brightness LED indicator light).
The H1 Pro is the next evolutions of the well provens H1 Heli flight controller with next generation sensors, anti-interference CAN GPS Bus. It supports new features like Wireless Calibration, Assisted Co-ordinated turn, three flight sensitivies and soft take-off/landing which can be selectively turned on or off as per your preference.
Specification:
Brand: Flywing
Model: H1 Pro Flight Controller
Helicopter type: HR3/H3 Swashplate
Battery Type: 3S,4S,65,12S Lithium polymer battery
Receiver type: S-BUS/PPM/I-BUS/WBUS/SUMD/ELRS/DSM2/DSMX
Software system: Win10, Win11(64-bit)
Power consumption: 2W
Voltage input: 6V-13V, ESC BEC power supply
Operating temperature: -10C to 55C
Size:
Main controller: 48mm x 31mm x 18.5mm
CAN GPS: 47 mm x 30 mm x 14mm
UART GPS (optional): 37 mm x 30 mm x 13.5mm
Weight:
Main controller: 34g
CAN GPS: 33g
UART GPS (optional): 21.5g
Maximum flight angle: soft 25; standard 35; sport 40
Hover accuracy (GPS mode): Vertical direction:0.5m, horizontal direction:1.5m
Feature:

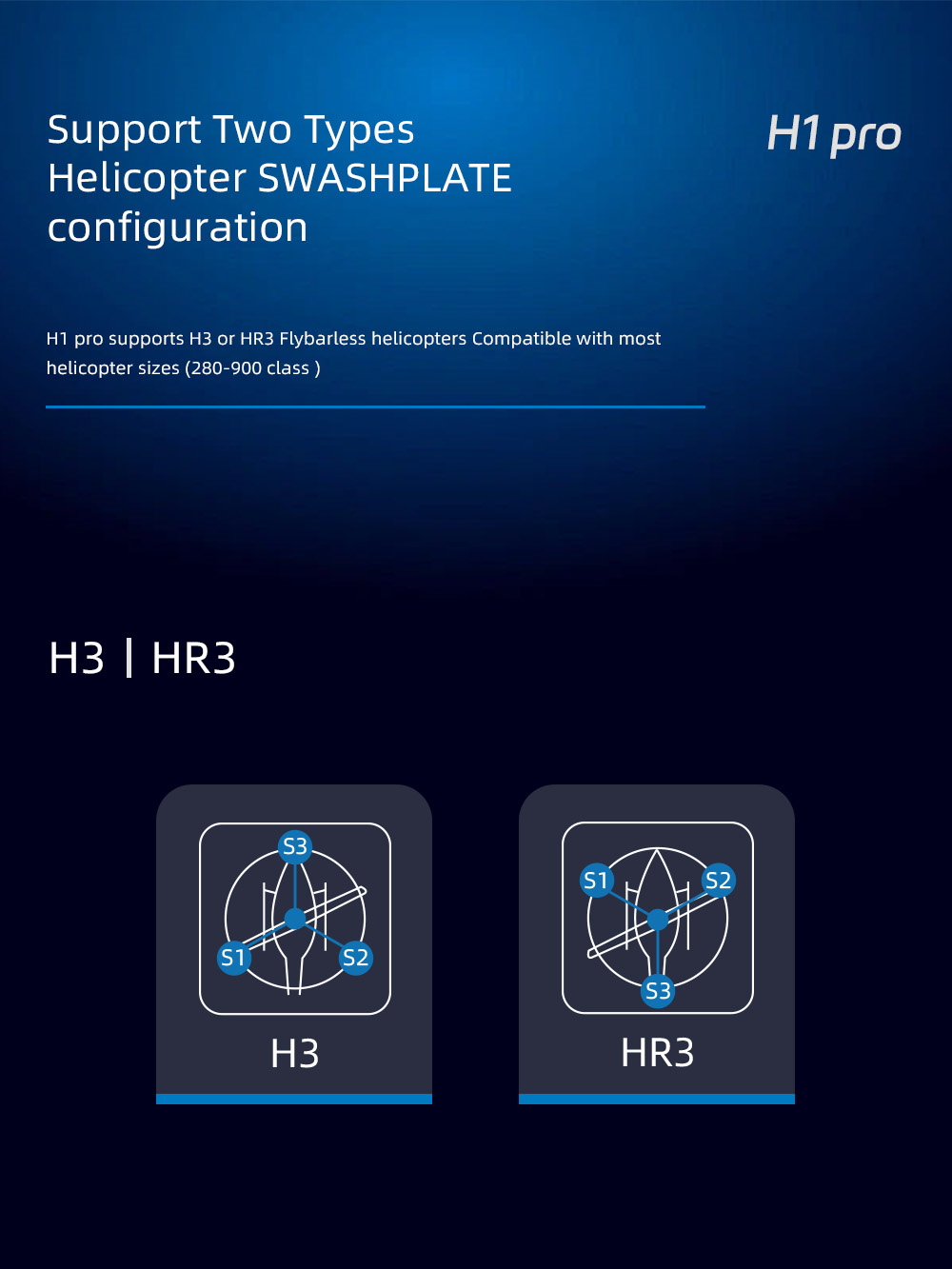

1. Supports H3 and HR3 Configurations
Compatible with 280-900 class flybarless helicopters using H3 or HR3 swashplate setups.
2. Enhanced Sensor Precision
Features ICM42688P gyroscope, IST8310 compass, and MS5611 pressure sensor for improved accuracy and interference resistance.

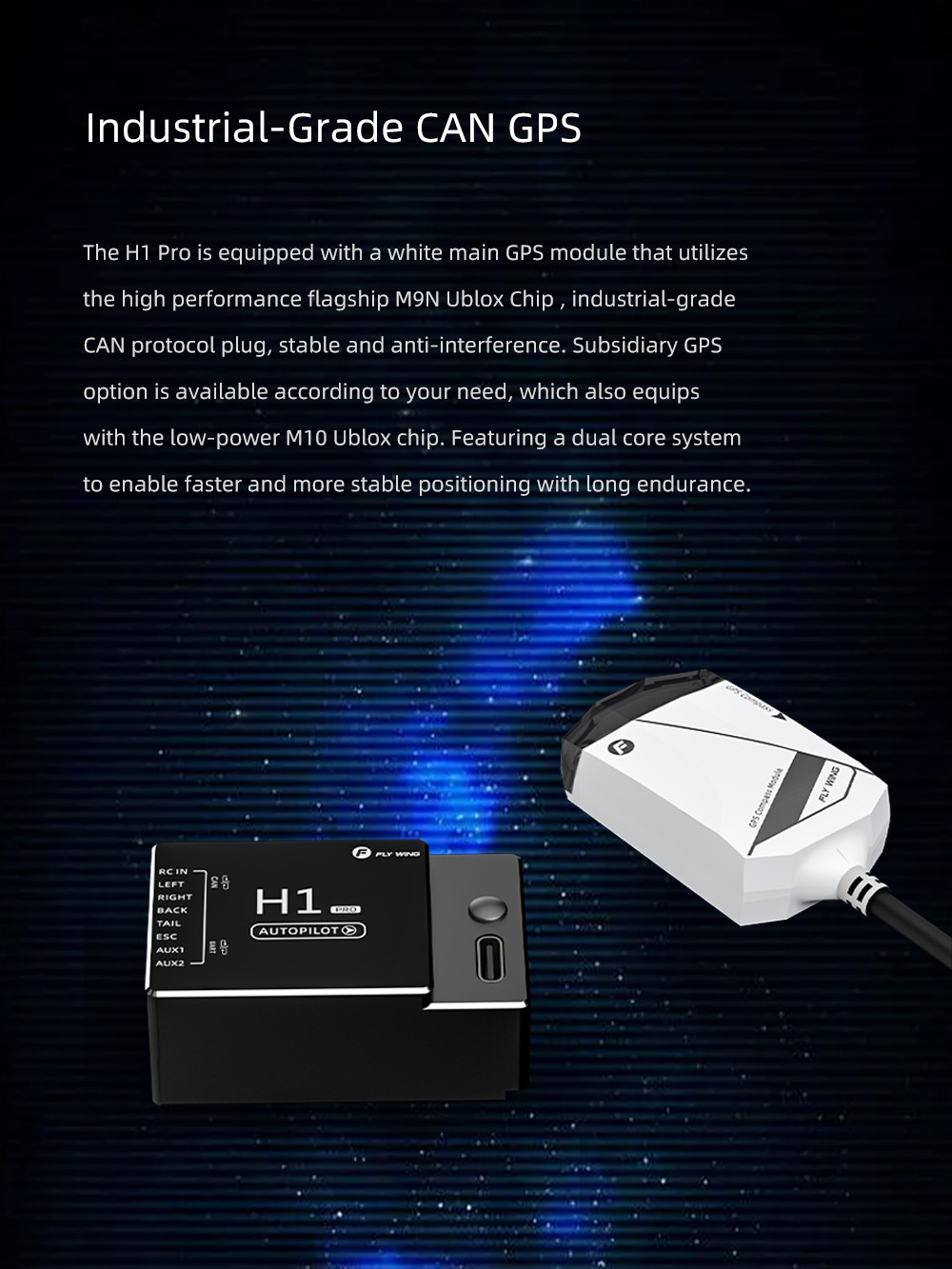

3. Industrial-Grade GPS Module
Equipped with a high-performance M9N Ublox chip, supporting CAN protocol for stable navigation and anti-interference performance.
4. Dual GNSS Module Option
Optional secondary GPS with low-power M10 Ublox chip for long-endurance and rapid positioning.
5. Specializeds Servo Ports Design
Fool-proof specializeds connectors with wider spacing accommodate up to 12V servos (BEC required).
6. Versatile Flight Modes
Includes GPS Mode, Angle Mode for self-leveling, and traditional 3D Acros Mode for sports-like maneuvering.
7. Enhanced Control Featuring Coordinated Turns
Flight controller dynamically adjusts helicopter roll angles for optimized real-helicopter-like turns.
8. Multi-Level Sensitivity Settings
Choose between soft, standard, and sport flight feels with one switch for tailored control.
9. Wireless Compass Calibration
Activate calibration directly via transmitter toggling; verifies process through LED gradient light.
10. Soft Take-Off and Landing
Simulates realistic helicopter ascents and proportional descent for smooth take-off and landing.

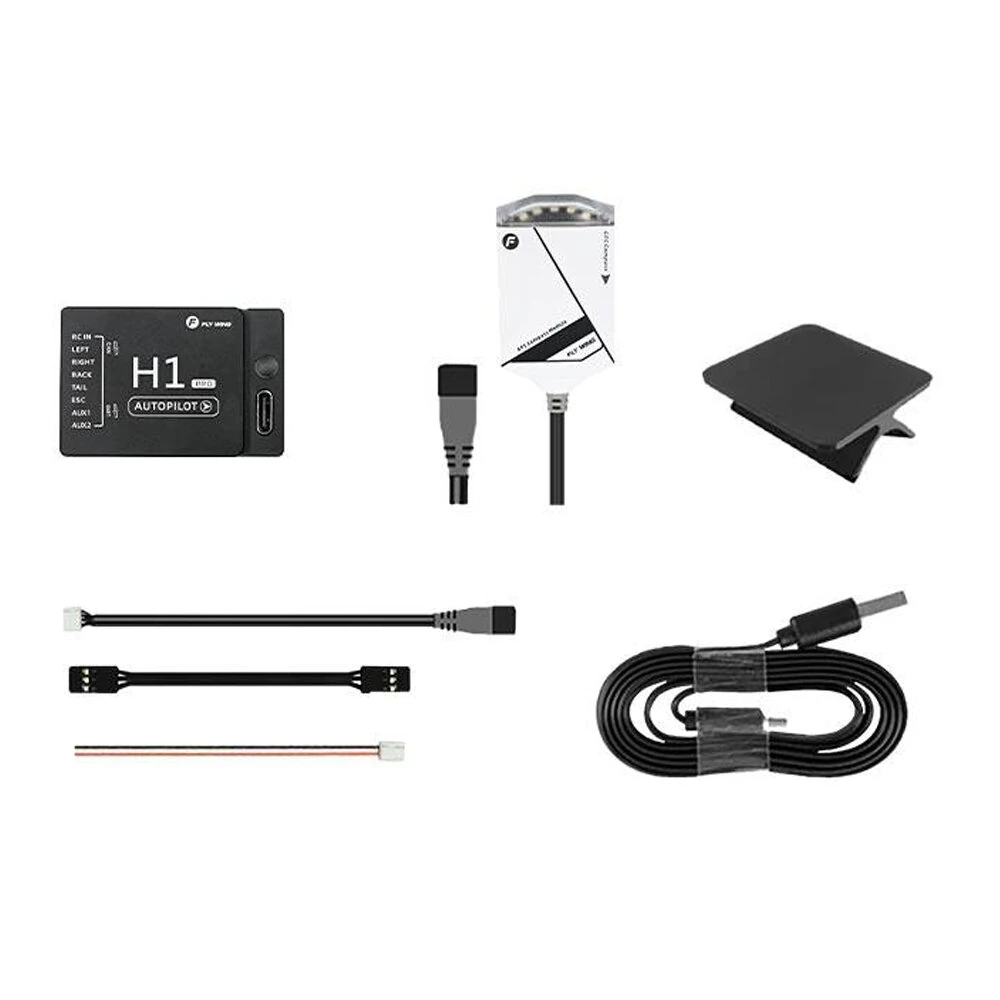

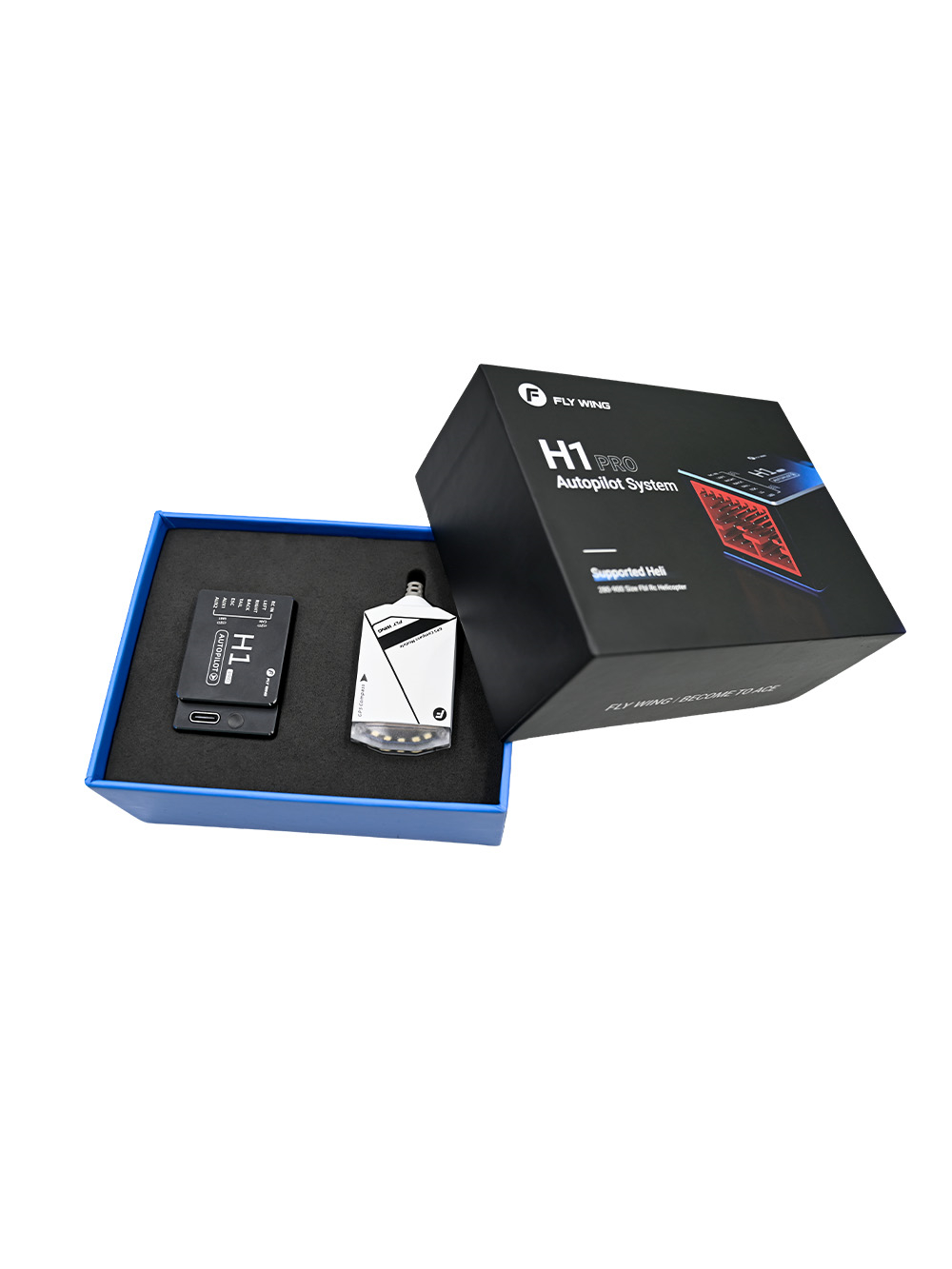

Package included:
1x H1 Pro Flight Controller
1x CAN GNSS Module
1x GNSS Mounting Base
1x Cables Package (GPS sensor cable, JR cable, Battery sensor cable, USB type-C cable)
