Description
Description:
Upgrade your H1 Flight Controller on your FLY WING FW450 or Scale helicopter to the new ACE Flight Controller system which incorporates technologies derived from the H2 Flight controller. The ACE flight controller is equipped with the most advanced M10N GPS module, which enables fast positioning and stable flight performance. By utilizing the omni-directional positioning technology of the ACE flight controller, it can achieve automatic rolling and precise hovering at a fixed point.
Specification:
Brand: FLY WING
Model: ACE Flight Controller GPS Locking FBL Gyro
Type:
H-ACE SCALE: For all FLY WING Scale Helicopters (Bell-206, Bell-412, UH1, BO-105, EC-135)
H-ACE FW450L: For FLY WING FW450L v3
Feature:
– GPS Positioning mode
In GPS mode, the Helicopter is as simple and easy to fly as a drone. It supports M10 GPS positioning assist and barometric altitude assist enabling stable hover at fixed location and altitudes. Stick inputs move the helicopter. Releasing the stick inputs brings the helicopter to a stop and steady hover.
– ATTitude Self-Leveling mode
The ATTitude Self-leveling mode utilizes a high-precision gyroscope + accelerometer and barometer working in tandem to automatically correct flight attitude in real-time. Unlike GPS mode, releasing the control sticks will not trigger automatic braking, instead, the helicopter returns to a level attitude autonomously. Compared to manual mode it offers significantly reduced difficulty but still offers more hands-on engagement than GPS mode.
– AERObatics Mode (FW450 only)
The AERObatics mode has altitude hold function but allows beginners to perform flips and rolls by pushing the cyclic stick to full deflection. Releasing the stick during upright/inverted flight triggers upright/inverted hovering at a fixed point.
Co-ordinated Turns
When you combine forward stick with rudder to initiate a turn, the flight controller continuously measures speed and automatically applies the precise amount of Roll. This keeps the fuselage smoothly banked throughout the maneuver, cutting the turning radiuss while maintaining a graceful, scale-like flight path. The result is tighter more aerobatic looking turns without any extra stick input from you just push forward and yaw.
– 3 New Flight Sensitivity modes:
The helicopter has built-in three flight sensitivities, which can be switched by the remote control switch.
* Soft Mode: the maximum flight speed, maximum flight angle and reaction speed of the helicopter will be limited. This mode is very suitable for the novice to operate the helicopter.
* Normal mode: the maximum flight speed, the maximum flight angle and the reaction speed of the helicopter are faster than the soft mode, and the mode is very suitable for daily helicopter flight.
* Sport mode: the maximum flight speed, maximum flight angle and reaction speed of the helicopter will all reach the maximum flight control value. At this time, the helicopter is very flexible and the flight speed is very fast. It is recommended that experienced players use it in an open field.
– Soft take-off/landing
When the helicopter takes off and lands, the flight control takes over the vertical rate completely, and when the altitude reaches 1m, it switches to the proportional control of the remote controller. It can solve the problem that the helicopter takes off too fast.
– Return to Home
The helicopter can automatically return to the take off location and land safely on the flip of a switch or when Battery voltage reaches a certain set voltage value.
Package included:

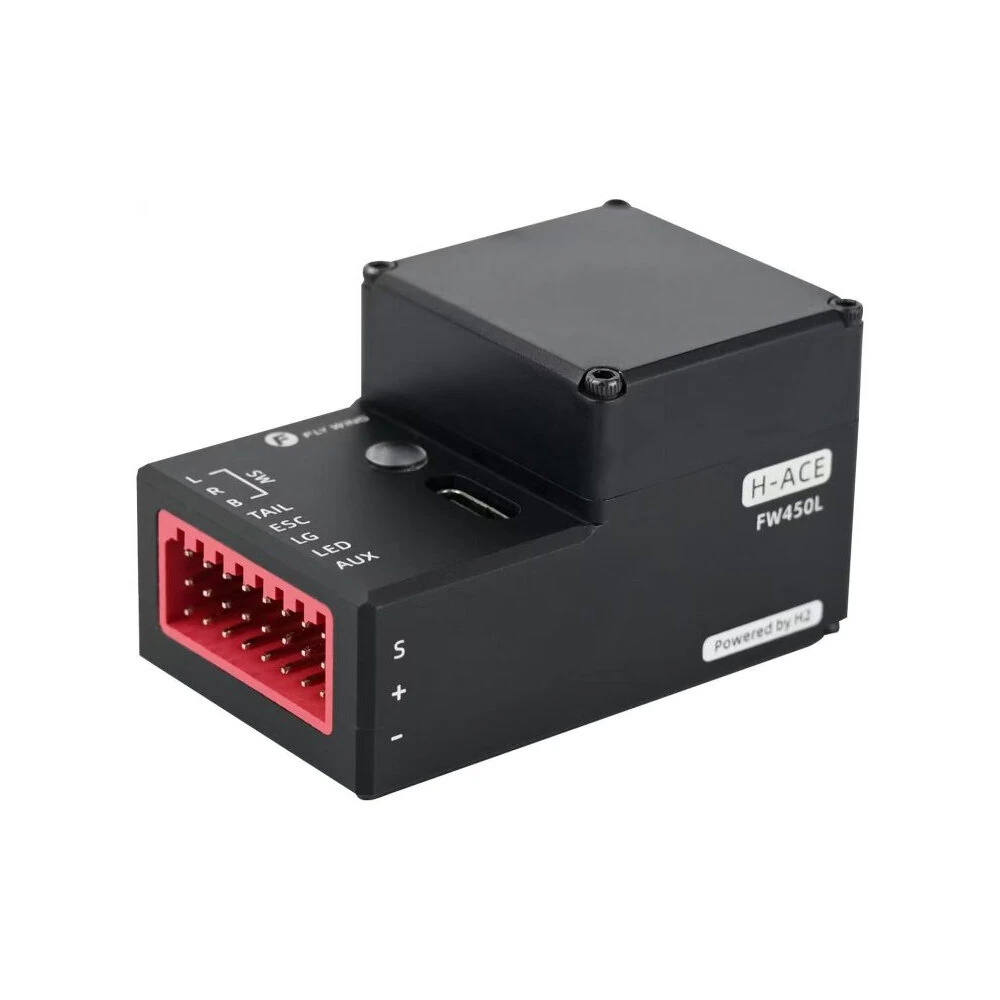

1 x ACE Flight Controller with integrated M10N GPS
1 x Receiver adapter board
1 x Switch Label Sticker sheet to update Remote Controller labels
