Description

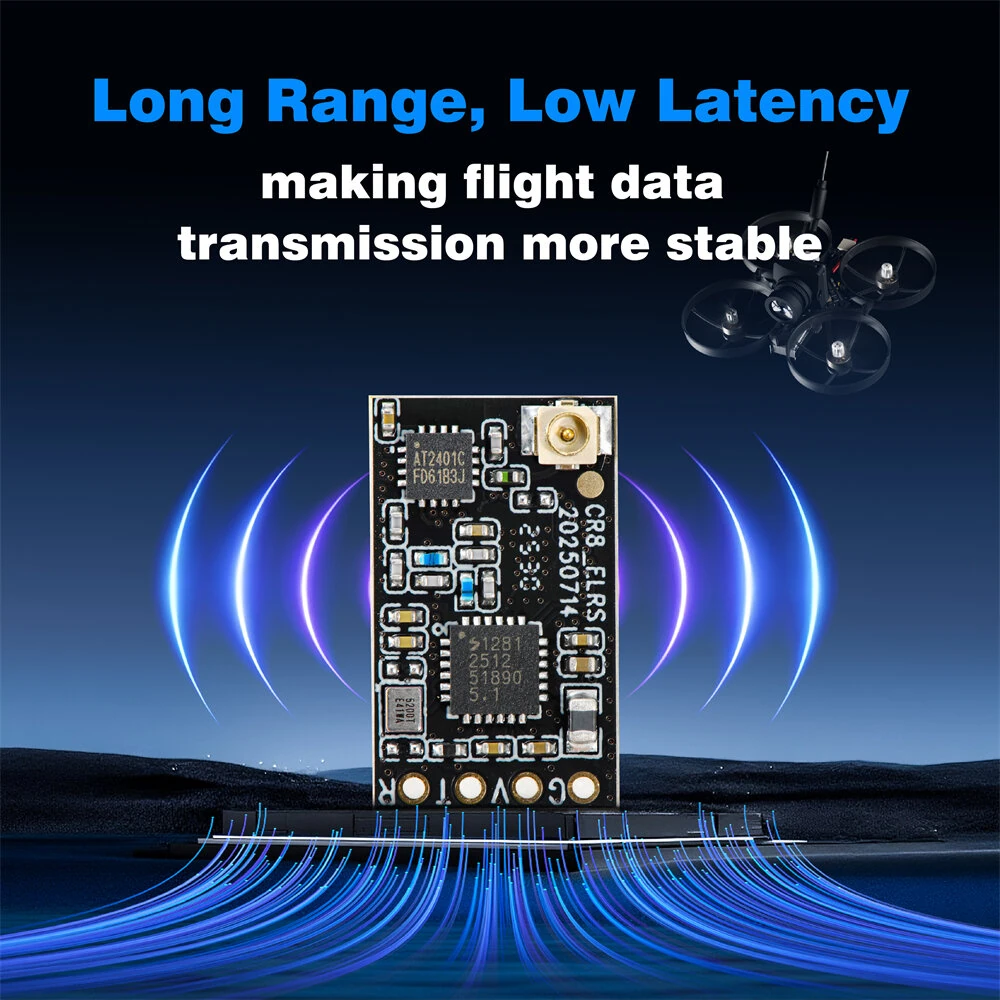

STARTRC CR8 2.4GHz ELRS 0.8g Ultra Lightweight Long Range Low Latency Nano Receiver for FPV Racer Drone RC Airplane Helicopter
Specification
Brand: STARTRC
Name: CR8 ELRS Nano Receiver
Chip: ESP8285 + SX1281
Crystal Oscillator: Epson Crystal Oscillator
Frequency Band: 2.4GHz
Antenna: T-Type Antenna
Antenna Connector: IPEX-MHF
Transmission Power: 100mW
Refresh Rate: 50Hz – 1000Hz
Input Voltage: DC 5V
PCBA Weight: 0.8g
Dimensions: 18.9mm x 11.2mm x 1mm
Firmware Version: ExpressLRS V3.3
Firmware Upgrade: Supports WiFi Upgrade
Feature:
– Nano Compact Design: Ultra-lightweight receiver with a 0.8g size ensuring effortless integration into small RC models.
– ELRS Protocol Compatibility: Seamlessly supports FPV drones, RC cars, boats, helicopters, and multi-rotor applications.
– Immersion Gold PCB: Enhanced conductivity, oxidation resistance, and reliable performance under varying conditions.
– Long Range Low Latency: Provides stable wireless communication for extended distances without compromising speed.
– Built-in Epson Crystal Oscillator: Offers superior stability and precision for consistent signal transmission.
Package included:
1 x STARTRC CR8 Receiver
1 x T-Antenna
1 x SH1.0 Terminal Silicone Wire
1 x Soldered Silicone Wire
1 x Instruction Manual
