Description

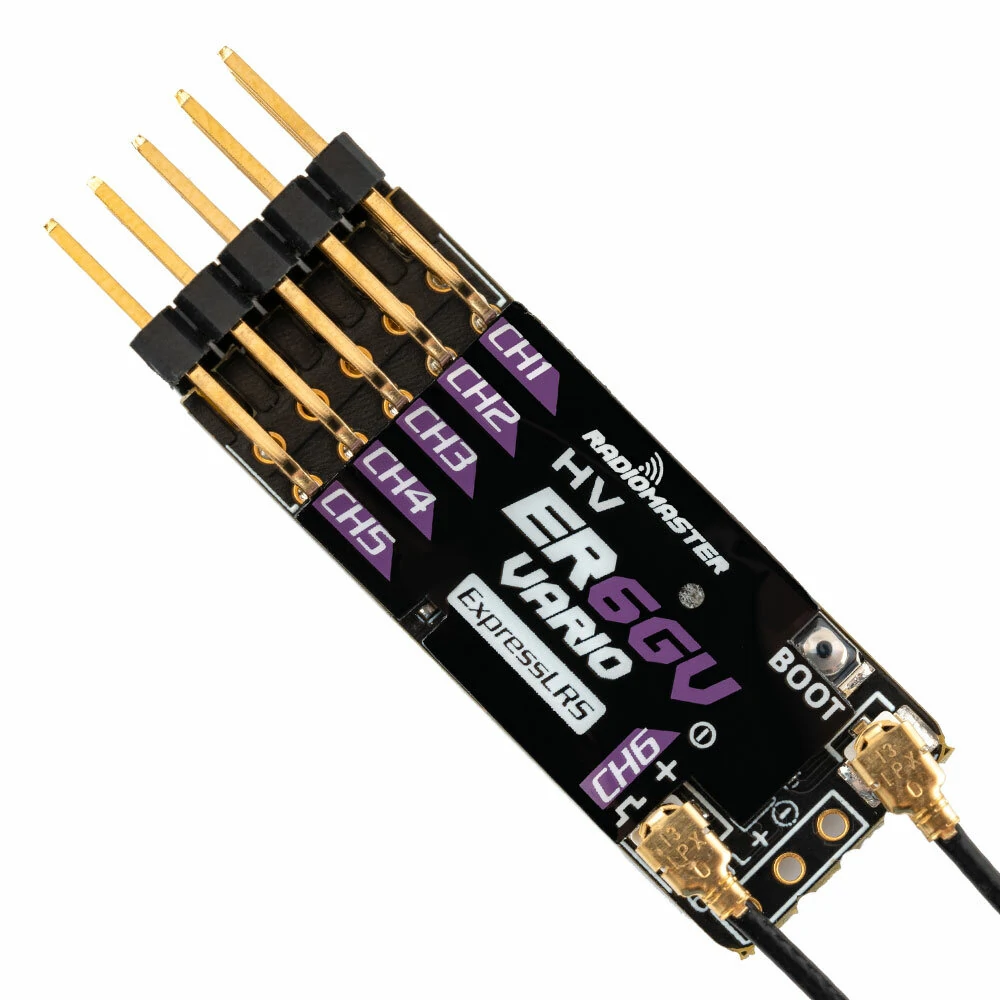

Radiomaster ER6-G/ER6-GV 2.4GHz 6CH ExpressLRS ELRS RX 50mW PWM Receiver Support Voltage Telemetry for FPV RC Drone Airplane Glider
The RadioMaster ER series of PWM receivers are based on the revolutionary ExpressLRS system. It offers high performance, high reliability, flexible configuration, quick response speed and ultra-long range bringing you brand new experience with your hobby.The ER6G & ER6GV receiver have been specially designed for glider pilots who require a compact and slim receiver. It can drive up to 6 servos and has built-in receiver voltage telemetry and flight battery telemetry with the ability to automatically detect which voltage input to use. Both ER6G & ER6GV feature a dual-antenna with telemetry power up to 50mw and can work stably with a 1S Lipo receiver battery.The ER6G Receiver has the same functionality as the ER6GV only without a built in Vario for competitions that prohibit the use of a Vario or simply for users who do not need a vario on their receiver.
Description:
Brand: RadioMaster
Model: ER6-G/ ER6-GV (Optional)
Specification (ER6G)Item: ER6G 2.4GHz ELRS PWM ReceiverPower supply: DC 3.5 – 8.4VAntenna type: 15cm high sensitivity antennaWireless protocol: ExpressLRS 3.2 pre-installedOutput channel: 6CH PWMReturn power: maximum 50mw (LUA Adjustable)Battery voltage detection range: DC 4.0 – 35VWeight: 5.0 gramsDimensions: 42*13*8mmFirmware: Device Category: Radiomaster 2.4Ghz / Device: Radiomaster ER6G
Specification (ER6GV)
Item: ER6GV 2.4GHz ELRS PWM Receiver
Power supply: DC 3.5 – 8.4V
Antenna type: 15cm high sensitivity antenna
Wireless protocol: ExpressLRS 3.2 pre-installed
Output channel: 6CH PWM
Return power: maximum 50mw (LUA Adjustable)
Built-in high-precision air pressure sensor (Vario)Battery voltage detection range: DC 4.0 – 35VWeight: 5.0 gramsDimensions: 42*13*8mmFirmware: Device Category: Radiomaster 2.4Ghz / Device: Radiomaster ER6GV
Features:
* Based on the Revolutionary ExpressLRS System.
* High performance, high reliability, flexible configuration, quick response speed and ultra-long range.
* Support 6 PWM Channels.
* Optimized ground up PCB design.
* Automatically voltage telemetry of external battery voltage or built-in receiver voltage.
* ER6GV Receiver is built-in high-precision air pressure sensor (Vario).
* Supports Wi-Fi updates and WEBUI configuration.
* High quality 2.54 mm connector.
* Standard 15 cm High Sensitivity Antenna.
* For fixed-wing aircraft and gliders
Package Included:
1 * ER6G or ER6GV 2.4GHz ELRS PWM Receiver1 * Voltage telemetry wire (Type-A)2 * Heat-shrink tube1 * User Card
