Description
Introduction:

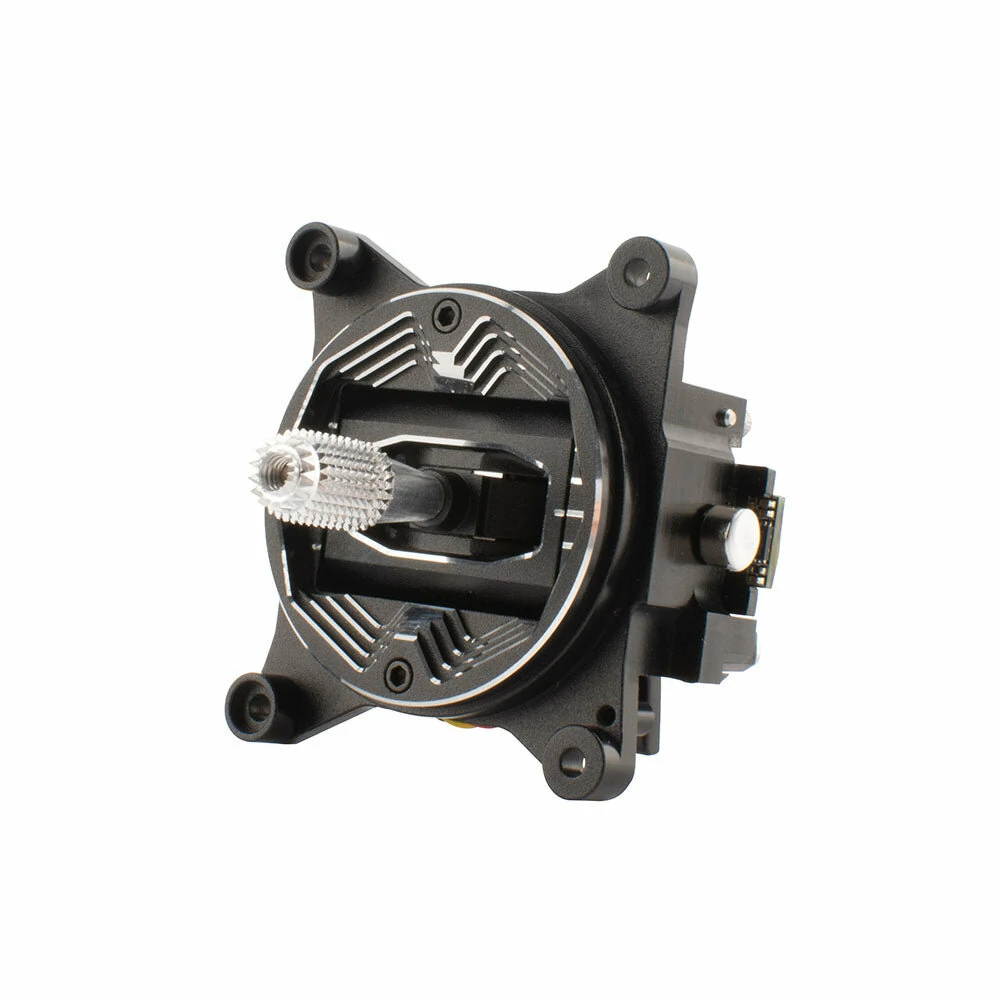

The long-awaited AG01 Mini is finally here! Custom designed for the RadioMaster Zorro and TX12, these gimbals allow for unparalleled precision and stick feel.
From the aviation-grade aluminum construction, non-contact hall sensors, and pre-installed Sticky360 Mini Gimbal Sticks, be prepared to revolutionize your compact radio experience!
Please note: AG01 MINI gimbals are expected to ship in mid May.
Key Features:
– Made with CNC processed aviation grade aluminum.
– Sticky360 Mini Gimbal Sticks as standard.
– Non contact hall sensors for accurate control inputs and precise centering.
– Quad precision bearings for unparalleled stick feel.
– Adjustable vertical travel angle (Min. 38, Max. 54).
– Custom designed for RadioMaster Zorro , TX12.
Specification:
Name: AG01 Mini CNC Hall Gimbal
Sensor type: Hall Sensor
Working voltage: DC 3.3V
Linearity: Real-time (No delay)
Adjustable vertical travel range: 3854
Self-centering adjustment: Yes
Easy mode adjustment
Adjustable tension & ratchet: Yes
Quad bearing: Yes
Temperature range: -20C-85C
Size: 49*42*48mm
Weight: 42g(0.3g)
Package Included
2 * AG01 Mini Hall CNC Gimbal
2 * Hex tool
8 * Installation screw
2 * Spare normal tension spring
2 * Throttle tension screw
