Matek Systems MR24-30-TX MLRS MAVLink 2.4GHz TX Module Kit Receiver for FPV Drone
Specifications:
Brand: Matek
Item Name: MATEKSYS mR24-30-TX mLRS 2.4GHz TX module KIT
mR24-30
STM32G431KB
LoRa SX1281 w/TCX0
PA/LNA SKY68383-11
RF Frequency: 2.4GHz ISM
RF power: 13dBm(min)/ 20dBm / 24dBm / 27dBm / 30dBm(1000mW)
mRx-Tx Adapter
Built-in HC-04 Bluetooth module & Fan Controller
Power supply: 5-13V DC @ JR PIN3(VIN)
Antenna connector: IPEX MHF-1 to SMA / RP-SMA
mLRS Target: tx-matek-mr24-30-g431kb-default
LED Status:
[Red flashing 2Hz], not connected to transmitter
[Green flashing 1Hz], connected to transmitter
[Red and Green alternately ], Binding mode enabled
Binding:
After powering on, press the bind button (for about 4 seconds) on the receiver. When in bind mode, the green and red LEDs will blink alternatively with 2.4GHz.
Note:
This Product no SMA Antenna & 3D Printed Case Packed.

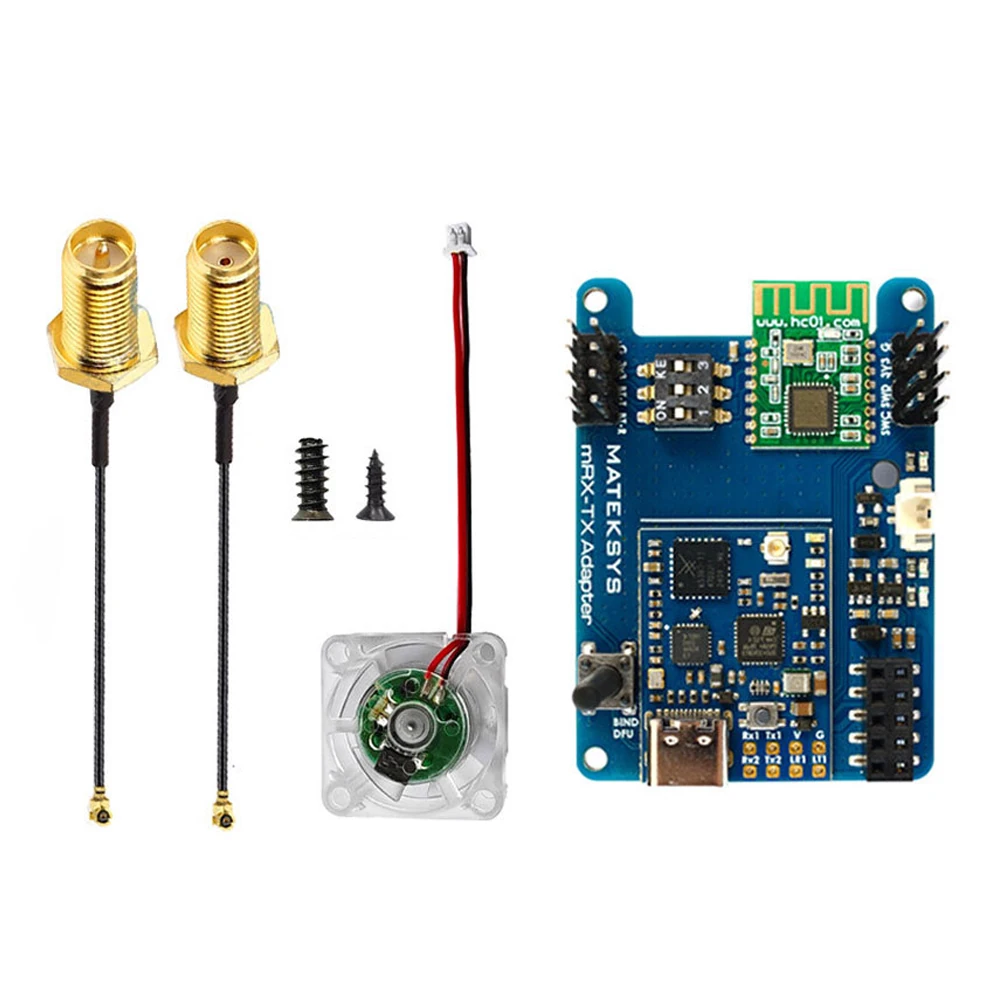

Package included:
1x mR24-30-TX
1x IPEX MHF1 to SMA Adapter Cable 5cm
1x IPEX MHF1 to RP-SMA Adapter Cable 5cm
1x 5V Fan (25*25*10mm) and Some Screws
