Description

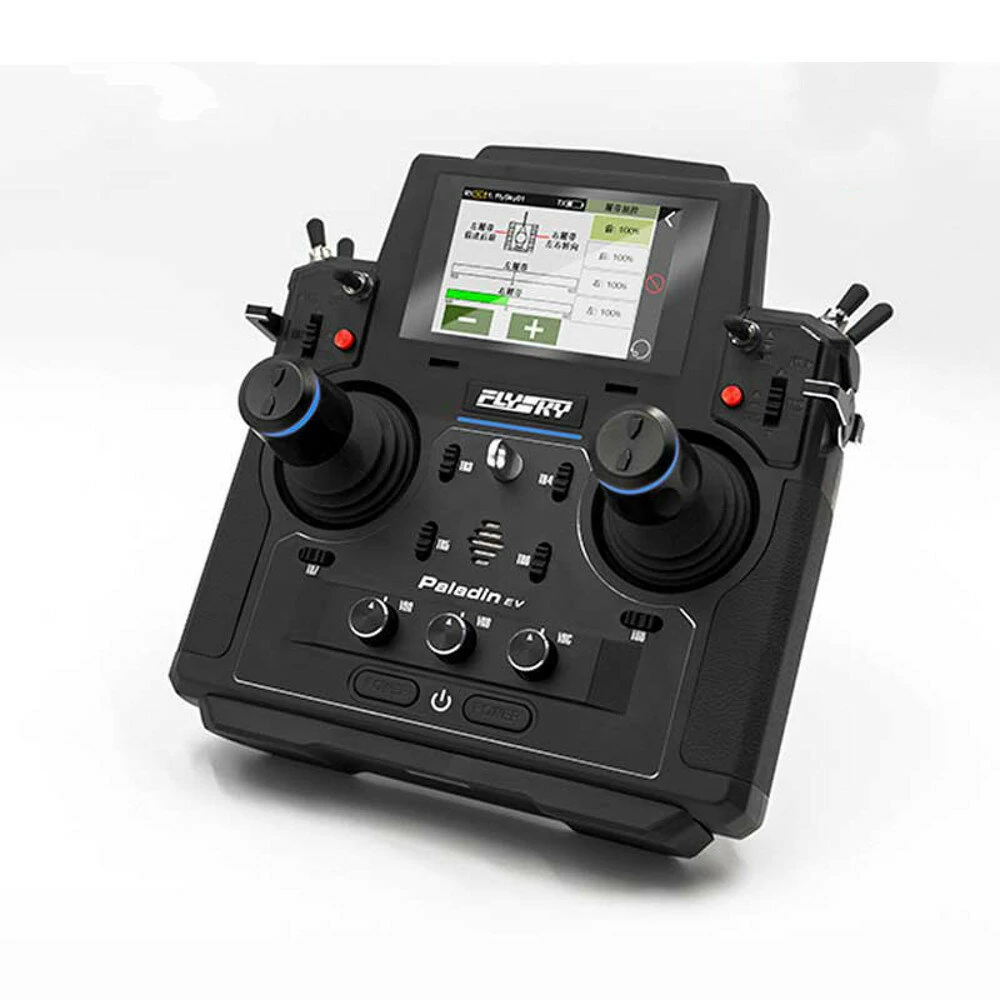

FLYSKY Paladin PL18 EV 2.4G 18CH 5D Hall Sensor Gimbals AFHDS 3 Radio Transmitter 3.5 Inch TFT Touch Screen for RC Engineering Vehicle
Overview:
PL18EV is an 18-channel transmitter dedicated to engineering vehicles, equipped with 2.4GHz AFHDS 3 (third-generation automatic frequency hopping digital system). The standard conguration is an FGr12B receiver!
AFHDS3 (third-generation automatic frequency hopping digital system) is a newly developed digital wireless system. It is compatible with single antenna bidirectional real-time data packet transmission and data stream transmission. With the advantages that come with the WS2A wireless system and the new 2.4GHz chip, the system can dynamically set: number of channels, channel resolution, range, anti-interference requirements and latency to meet the needs of dierent users.
Features:
– Metal Hall multi-dimensional joystick.
– Double metal toggles with self-return.
– Dual 18CH dual-models remote control mode.
– Mechanical model exclusive structure.
– Track mixed control function.
– Full-colour touch screen in English and Chinese.
Hardware highlights:
Rocker type: 5D Hall waterproof rocker + 2 levers
The third rocker: one on the left and one longitudinal centering lever
Other controls: 6 gear switches (the length of the gear is not the same as the reset, accessories can be modified) + 3 knob keys + 2 self-locking buttons + 8 fine-tuning buttons (two-way buttons)
Display screen: 3.5-inch TFT color screen, 320*480 dot matrix, LCD white backlight, capacitive touch screen
Vibration/sound alarm: adjustable vibration intensity + different alarm sounds and real voice ic alarm and prompt sound
Other accessories: The flagship version comes standard with a bracket with hand rest + shoulder strap
Charging: Support Mirco USB and Q1 wireless charging
Battery: Built-in 4300mAh high-capacity lithium battery
Software highlights:
Number of channels: 18 ratio channels
Dual model control: support
Data backup and setting sharing and storage capacity: Fusi remote control butler realizes model data backup and sharing. The remote control can store 20 sets of models
Upgrade: USB connected to the computer through the Fusi remote control butler, software network upgrade
Additional functions: timer, logic switch, simulator
Custom function + control All channels can be customized function + custom allocation control and fine-tuning
Unique model function: double ratio curve + delay function + 20 groups of customizable mixing control + track mixing control function
Paladin PL18 EV Transmitter Specification:
Brand: FlySky
Product Model: Paladin PL18 EV
Channels: 18
Adaptable receivers: all AFHDS 3 receivers
Model Type:
RF: 2.4GHz
RF Power: < 20 dBm
2.4GHz Protocol: AFHDS 3
Distance: >300m (open without interference ground)
Channel Resolution: 4096
Battery: 1S (3.7V) * 4300mAh (built-in)
Charging Interface:Micro USB/wireless charging
Charging Time: 4h@5V*2A/7h@5V*2A (wireless charging)
Life time: >5.5h (standard accessories)
Low Voltage Warning:< 3.65V
Antenna Type: Dual antenna
Display:HVGA 3.5 TFT320*480
Language: Chinese and English
Simulator: USB Simulator
Data Interface: USBNon-standard interfaceUSARTPHJACKPPM
Temperature Range: -10+60
Humidity Range: 20%-95%
Online Update: Yes
Color: black
Standard version size: 290*260*165MM
Standard version weight: 2.5KG
Certication:CEFCC IDN4ZFT1800
FGr12B Receiver Specification:
Model Type: FGr12B
PWM Channels: 12
RF: 2.4GHz ISM
2.4GHz Protocol: AFHDS 3
Distance: >500mopen without interference ground
Antenna Type: Single antenna
Power: 3.5v-9V
RSSI: Yes
Data Interface: i-BUS/S.BUS/PPM/PWM
Temperature Range: -10+60
Humidity Range: 20%-95%
Online Update: Yes
Size: 37mm*25mm*17.5mm
Weight: 11.2g
Certication: CEFCC ID:N4ZFGR12B
Paladin PL18 EV Manual and Upgrade, click here
Note:
1. Please understand the product might have some colour difference due to different monitors and scenes.
2. Please allow slight deviation for the measurement data.
Package Included:
Standard Version:
1x PL18 EV transmitter with 301 high frequency + high frequency fixing plate + thin hand glue
1x FGR12B receiver
1x Quick Operation Guide
1x Micro USB cable
1x LOGO sticker 1 (pure logo)
1x LOGO sticker 2 (with other designs)
1x PL18 body sticker
Flagship Edition:
1x PL18 EV transmitter with 301 high frequency + high frequency fixing plate + thin hand glue + large hand glue
1x FGR12B+FGr8B receiver + cable
1x wireless charging dock
1x Quick Operation Guide
1x Micro USB cable
3x Toggle switch rubber cover
1x tray (with hand rest)
1x Tray strap
1x LOGO sticker 1 (pure logo)
1x LOGO sticker 2 (with other designs)
1x PL18 body sticker
1x Aluminum box
