Description
Description:

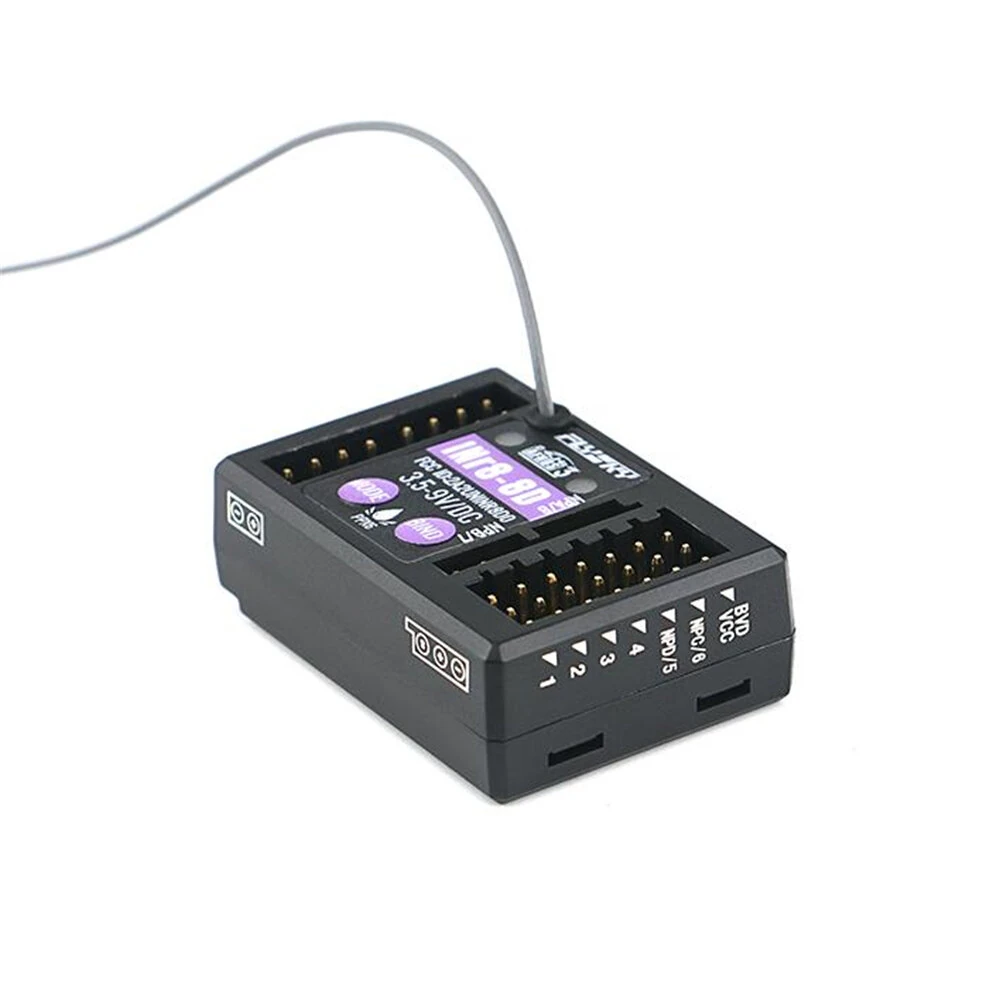

The INr8-8D adopts AFHDS 3 and is a versatile 8-channel receiver. It uses a single-antenna bidirectional transmission system,supporting 4 Newport function connectors and offering 8 function connectors.Taking the control of LED lights through D1~D8 connectors as an example,this device can be used as a receiver with lighting control functions, as a standalone LED light unit compatible with third-party receivers, or as an S.BUS/i-BUS out/PPM signal to PWM converter compatible with third-party receivers.
Specification:
Brand: Flysky
Product Model: INr8-8D
Compatible Transmitters: Noble NB4 Series and other AFHDS 3 protocol transmitters This receiver is currently only compatible with the Noble NB4 series transmitter for modifying lighting functions.
Resolution: 4096
Distance: 300m (Ground distance without interference)
Antenna: Single Antenna
Operating Voltage: 3.5 9V /DC
Mode 2/Mode 3 Compatibility: FGr8B and other AFHDS 3 protocol receivers, FS-SR8 and other ANT protocol receivers, other non-Flysky receivers with S.BUS signal connectors.
Compatible RC Model: Car
Number of PWM Channels: 8
Maximum Power: <20dBm (e.i.r.p.) (EU)
RF: 2.4GHz ISM
RF Protocol: AFHDS 3
Data Output: PWM/PPM/i-BUS2/S.BUS/i-BUS
Temperature Range: -10 ~+60
Humidity Range: 20%~95
Firmware Update: Yes
Dimensions: 41*28.3*13.3mm
Weight: 12.2g
Color: Black
Certification: CE, FCC ID: 2A2UNINR8D0
Package Included:
1 x Flysky INr8-8D Receiver
