Description
CYCLONE EP1/EP2/NANO 2400RX 2.4GHz/915MHz ExpressLRS ELRS RX 100mW Mini Long Range Receiver For FPV Racing Drone
Specifications:
NANO 2400RX
Name: BETAFPV 2400RX
Type: ISM
Antenna Interface: IPEX1
MCU: ESP8285
Frequency Range: 2400 MHz to 2500 MHz
Maximum receive refresh rate: 500Hz
Minimum receiver refresh rate: 25Hz
Working voltage: 4-5.5v
Weight: 0.65gram
Dimension: 17mm*10.5mm*3mm
Peak gain: 3.7dB
Working Agreement: CRSF(Beatflight)

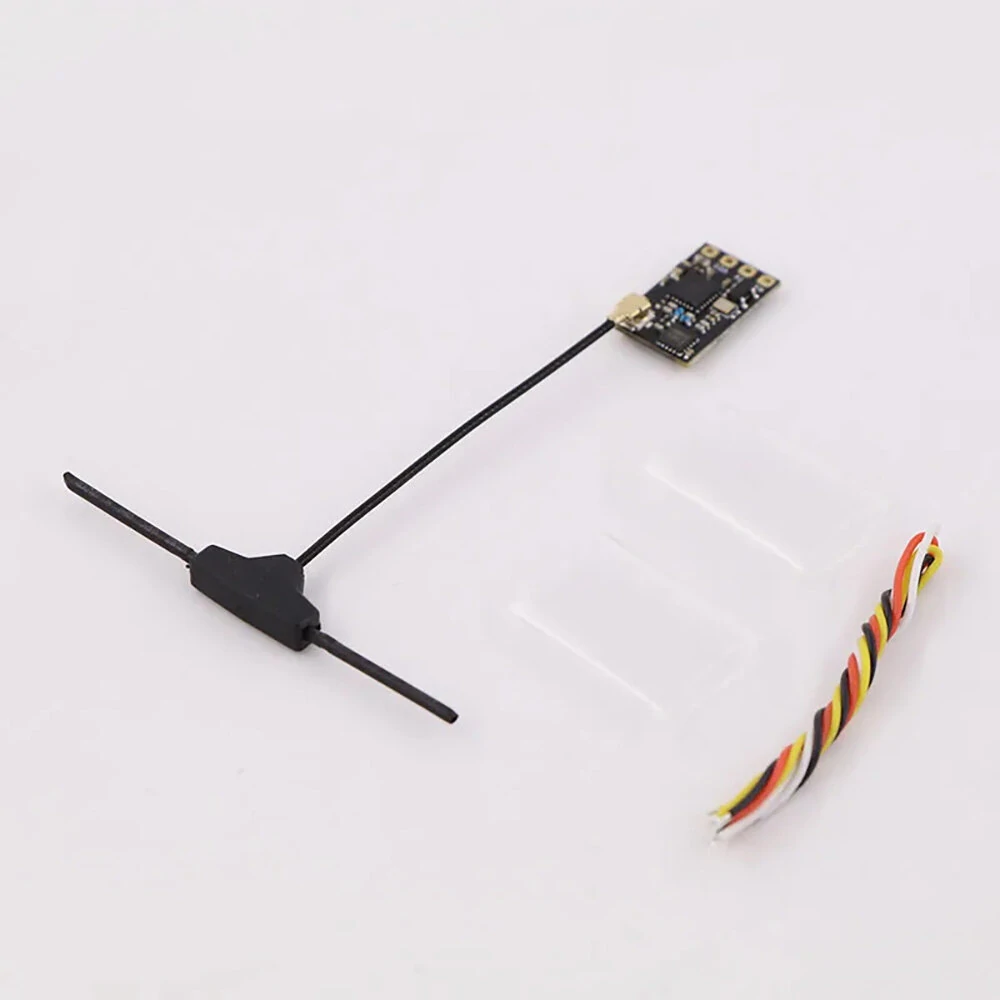

Package Included:
1x NANO 2400RX Receiver
1x Dipole T-type Antenna
4x 30# Connecting Wire (Black, Red, White, Yellow)
1x Heat Shrink Tube
EP1_2400RX
Name: BETAFPV 2400RX
Type: ISM
Antenna Interface: IPEX1
Frequency Range: 2400 MHz to 2500 MHz
Maximum receive refresh rate: 500Hz
Minimum receiver refresh rate: 25Hz
Working voltage: 4-5.5v
Weight: 0.41gram(without antenna)
Dimension: 10mm*10mm*3mm
Working Agreement: CRSF(Beatflight)
Package Included:
1x EP1 2400RX Receiver
1x Dipole T-type Antenna
4x 30# Connecting Wire (Black, Red, White, Yellow)
1x Heat Shrink Tube
EP2_2400RX
Name: BETAFPV 2400RX
Type: ISM
SMD2.4GHz Chip Ceramic Antenna
Frequency Range: 2400 MHz to 2500 MHz
Maximum receive refresh rate: 500Hz
Minimum receiver refresh rate: 25Hz
Working voltage: 4-5.5V
Weight: 0.41gram
Dimension: 10mm*10mm*6mm
Working Agreement: CRSF(Beatflight)
Package Included:
1x EP2 2400RX Receiver
4x 30# Connecting Wire (Black, Red, White, Yellow)
1x Heat Shrink Tube
ELRS 915MHZ Receiver
Name: BETAFPV 900RX
SMD2.4GHz Chip Ceramic Antenna
Maximum receive refresh rate: 500Hz
Minimum receiver refresh rate: 25Hz
Working voltage: 4-5.5V
Weight: 1.65gram(with antenna)
Dimension: 17mm*10.5mm(without antenna)
Working Agreement: CRSF(Beatflight)
Package Included:
1x ELRS 915MHZ Receiver
1x T-type Antenna
4x 30# Connecting Wire (Black, Red, White, Yellow)
2x Heat Shrink Tube
