Description
Specification:
Brand: T-Motor
Model: P1804

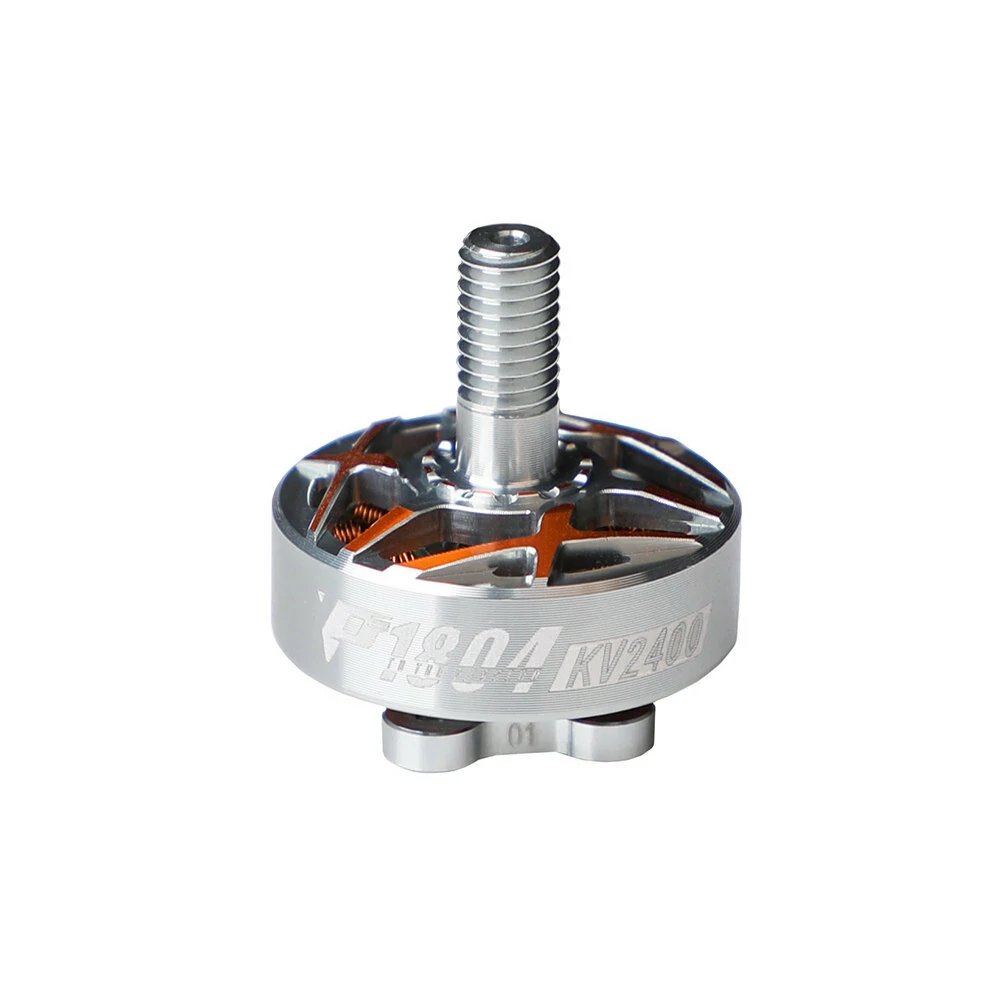

Item Name: 1804 2400KV 6S / 3400KV 4S Brushless Motor
KV: 2400KV / 3400KV ( Optional)
Shaft Diameter: 1.5mm / 5mm ( Optional)
Configuration: 12N14P
| KV | Shaft Diameter | Voltage |
Weight ( incl. cable) |
Cable |
Idle Current (10V) |
Max. Power (10S) |
Peak Current ( 10S) |
|
| 2400KV | 1.5mm | 6S | 13.78 | 24AWG 110mm | 0.45A | 379.8W | 16A | |
| 3400KV | 1.5mm | 4S | 14.3 | 24AWG 110mm | 0.8A | 318.3W | 20.2A | |
| 2400KV | 5mm | 6S | 14.3 | 24AWG 150mm | 0.51A | 379.8W | 16A | |
| 3400KV | 5mm | 4S | 14.9 | 24AWG 150mm | 0.79A | 318.3W | 20.2A |
Features:
– Suit For 3 3.5 4 inch Fpv Drone
– Light weight design
– Unibell Desigh
Diagram Picture and Test Table
Package Included:
1x P1804 Motor
1x bag of Screws
