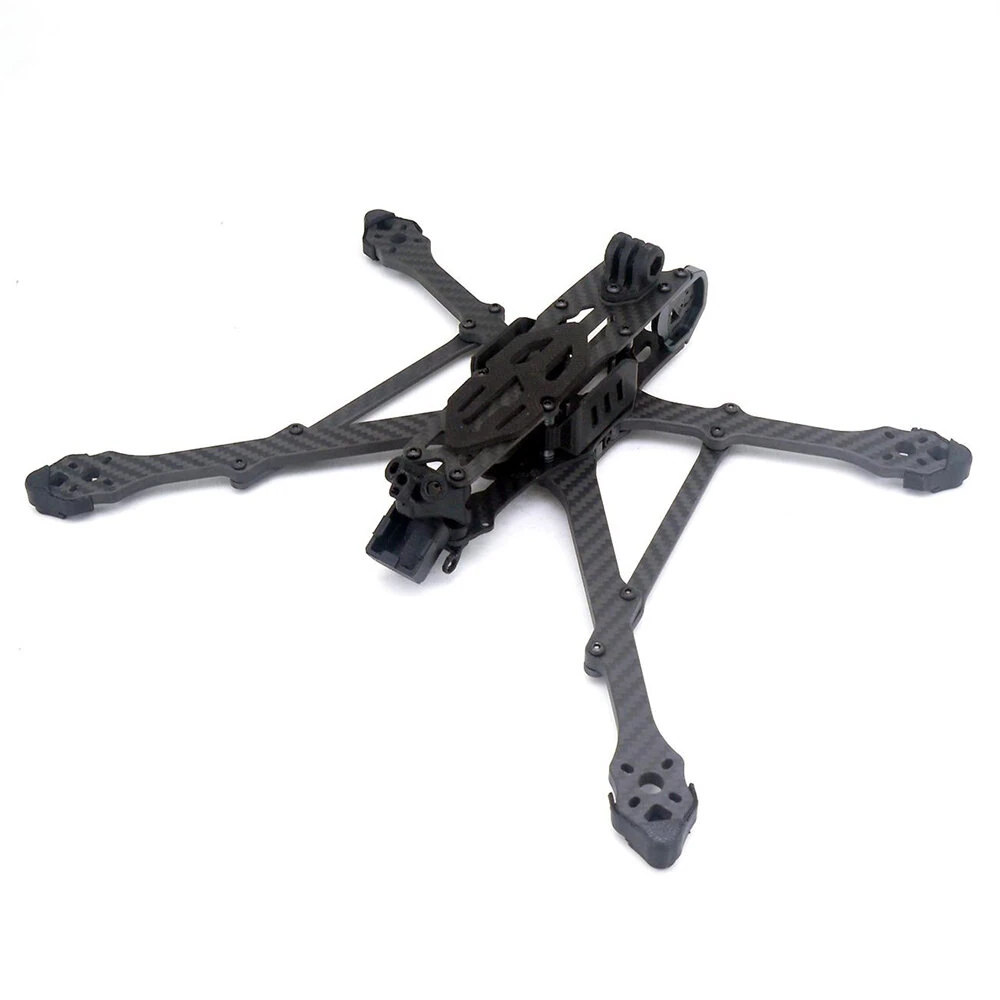

QAVS3 220mm 5 Inch 300mm 7 Inch Frame Kit for DIY RC FPV Racing Drone Compatible with DJI O4 PRO/ DJI O3 / Snail / Nebula / Aurora / Vista System

Model

Parameter

5 Inch

Model: QAVS3 5 Inch Frame Kit

Wheelbase: 220mm

Structure: X-shaped

Weight: Approx.173g

Thickness: Arm 6.0mm, Base Plate 3.0mm, Upper Plate 2.0mm, Clamp Plate 2.0mm

Propellers: 5.0-inch Propellers

FC Hole Spacing: 20*20mm (M3), 30.5*30.5mm (M3)

Tail VTX Mounting Holes: 20*20mm (M2), 25.5*25.5mm (M2), 30.5*30.5mm (M3)

Camera Mounting Width: 19/20mm

Motor Mounting Holes: 16*16mm (M3), 19*19mm (M3)

Aluminum Column Height: M3*23mm

Compatible VTX: DJI O4 PRO, DJI O3, Snail, Nebula, Aurora, Vista Sky System, etc.

Compatible GPS: BZ181

Aluminum Material: 7075 Magnsium Alloy CNC

Printed Parts List: Universal Action Camera Mount x1, BZ181 GPS Mount x1, Motor Protectors x4, ELRS915/2.4g Receiver Antenna Mount x1, Side Panel Lens Mount x2, Enclosure Guards x2, Universal Antenna Mount x1 (Adapts to Dual and Single Antennas)

7 Inch

Model: QAVS3 7 Inch Frame Kit

Wheelbase: 300mm

Structure: DC-type

Weight: Approx.210g

Thickness: Arm 6.0mm, Base Plate 3.0mm, Upper Plate 2.0mm, Clamp Plate 2.0mm, Reinforcement Rod 3.0mm

Propellers: 7.0-inch Propellers

FC Hole Spacing: 20*20mm (M3), 30.5*30.5mm (M3)

Tail VTX Mounting Holes: 20*20mm (M2), 25.5*25.5mm (M2), 30.5*30.5mm (M3)

Camera Mounting Width: 19/20mm

Motor Mounting Holes: 16*16mm (M3), 19*19mm (M3)

Aluminum Column Height: M3*23mm

Compatible with VTX: DJI O4 PRO, DJI O3, Snail, Nebula, Aurora, Vista Sky System, etc.

Compatible with GPS: BZ181

Aluminum Material: 7075 Magnsium Alloy, CNC-machined

Printed Parts List: Universal Action Camera Mount x1, BZ181 GPS Mount x1, Motor Protectors x4, ELRS915/2.4g Receiver Antenna Mount x1, Side Panel Lens Mount x2, Enclosure Guards x2, Universal Antenna Mount x1 (Adapts to Dual and Single Antennas)
