Description
Note: The RUSH antenna, camera, and receiver antenna are for display purposes only and are not included with the frame.
Specifications:
Brand: Noowa
Model: F5

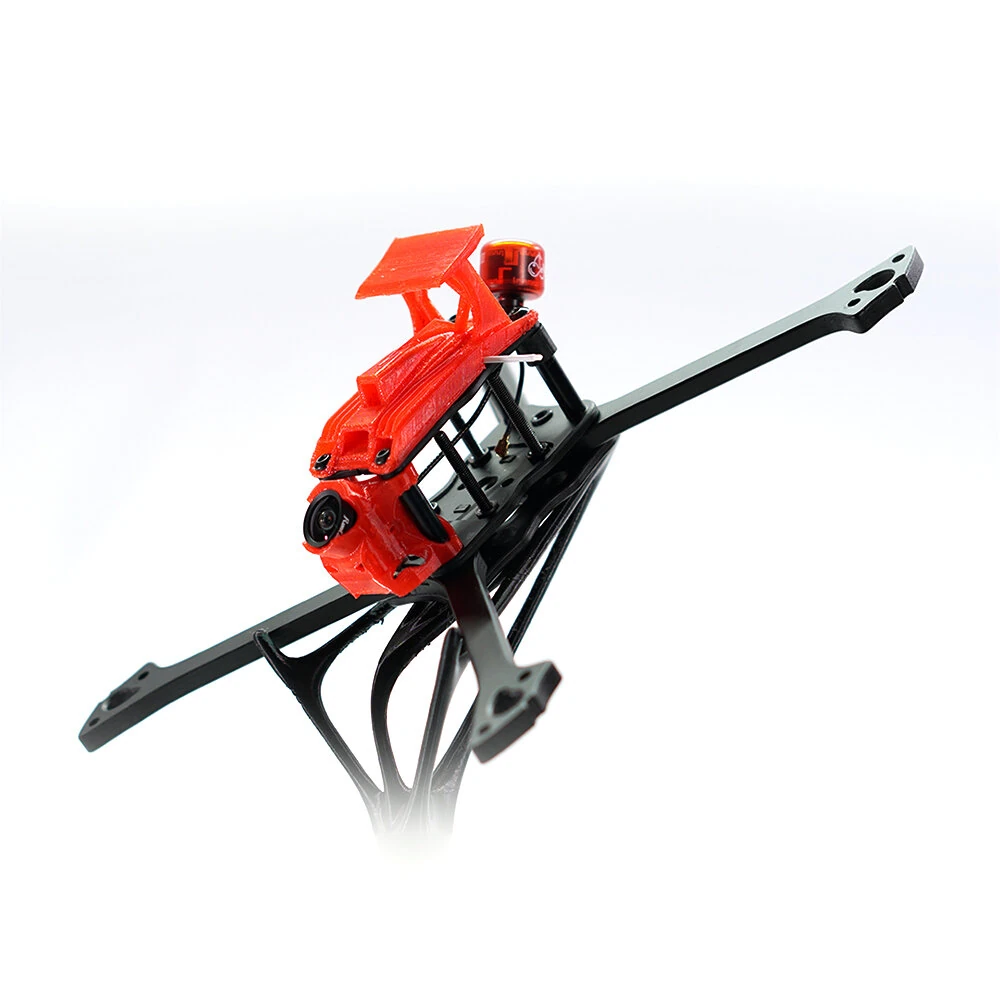

Item Name: 5 Inch FPV Racing Drone Frame Kit
Frame Thickness: Bottom Plate – 2.5mm / Middle Plate – 2.5mm / Top Plate – 2mm / Arms – 5mm
Motor Mounting Holes: 16 x 16 (M3 Holes)
Frame Wheelbase: 189mm
Camera Specifications: 14mm (HDzero Nano 90 V2 recommended)
Carbon Plate: T700
Camera Cover Angle: 51/53
Recommended Propellers: GEPRC 51377/GEPRC 5129
Aluminum Posts: 21mm x 5mm (M3 Holes)
3D Printed Part Color: Red
Stack Mounting Hole Spacing: 20 x 20 (M3 hole)
Supplied Screws: M3x20 (Stack)
Frame Weight: 50g (without printed parts)
Recommend Parts ( NOT Included):FC & ESC: 20x20mm SpeedyBee F405 Brushless Motor: iFlight XING-E Pro 2207 1800KV 3-6S Brushless MotorPropeller: GEMFAN Hurricane MAX 51377 5 Inch 3-Blade PC Propeller
/ HQProp Ethix P2 5129 5.1 Inch Poly 3-Blades Pickle Propeller Camera: Eachine TX06 700TVL FOV 120 5.8Ghz 48CH 25mW FPV Camera
Package included:
1x Frame Kit
