Description
Notice:
1.Comes unassemble. Need build by yourself.
2. The product has been upgraded from AOS Cine25 EVO to AOS Cine25 V5, which is compatible with DJI O4 Pro Air Unit.
Description:

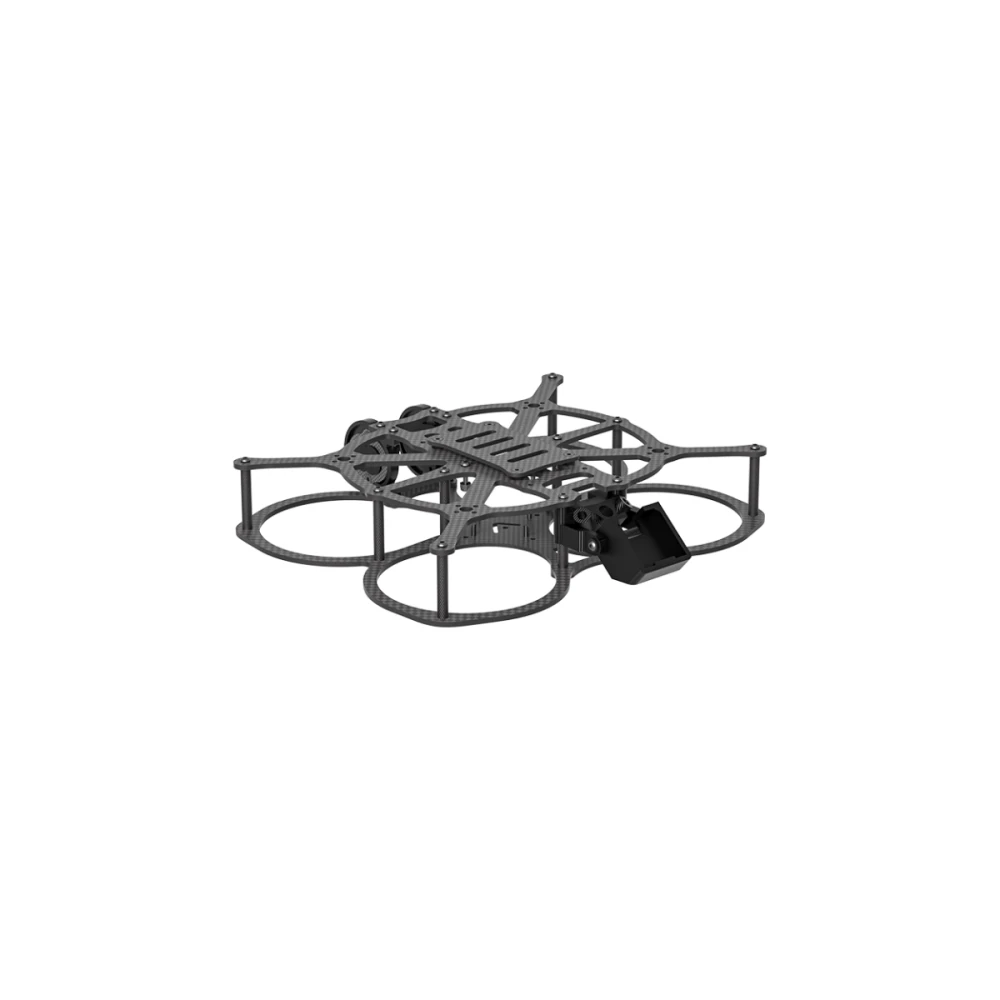

The AOS Cine25 V5 strikes the perfect balance between compact size and enhanced flight performance, supporting up to 2.5 Inch propellers.
Features:
Front and rear GoPro mountingThe AOS Cine25 V5 supports both forward and reverse camera mounting so you can record the road ahead as well as capture the perfect chas shot with the same drone.Lightweight, Durabl Propeller ProtectionThe AOS Cine25 V5 features integrated carbon fiber prop guards, providing durabl yet lightweight protection. Reinforced screw holes eliminate weak points in the structure, and the airflow around the propeller is optimized for maximum efficiency.Durabl and Versatile 7075 Aluminum Camera CageProtecting your camera, the 7075 aluminum camera cage accommodates all 19-20mm cameras, ensuring broad compatibility with various camera systems. It includes an integrated soft mount specifically designed for the DJI O3 and O4 camera, complete with full ND filter support. For users with different FPV systems, the frame supports hard mounting for all popular camera options, including Analog, WS Avatar, HDZero, and DJI. Additionally, 14mm cameras are supported with a 3D-printed mount (STL file available under 3D Prints).
Immersive 155 FPV ExperienceEnjoy a 155-degree field of view (FOV) with no props in view, perfect for DJI O3 and O4 users. This feature offers an immersive flight experience, ensuring you capture stunning, unobstructed footage.Flexible battery mountingWith multiple options for lengthwise or toilet tank battery mounting, its easier than ever to balance your drones center of mass, regardless of the camera setup. Captive battery straps ensure quick and easy battery swaps, so you can spend more time flying.
Specifications:
Brand: iFlight
Model: AOS Cine25 V5
Product Name: 2.5 Inch Frame KitFrame wheelbase: 120mmFrame Dimension: L171*W147*H34 mmTop Plate Thickness: 2mmBottom Plate Thickness: 1.5mmBattery Plate Thickness: 1.5mmMaximum Flight Stack Height: 25mmMaximum VTX Height: 25mmFlight Stack Mounting: 20*20 2mm / 25.5*25.5/2mmVTX Mounting: 20*20 2mm / 25.5*25.5 2mmMotor Mounting: 9x9mm -2Weight: 88gCompatibility: DJI O4 Air Unit Pro/DJI O3 Air Unit/HD Vista/BLITZ Whoop 1.6W VTX
Recommend Parts ( NOT Included):
FC & ESC: 25.5*25.5mm SpeedyBee F405 40A AIO
20*20mm Axisflying ARGUS F745 Flight Controller with 5V 12V BEC Output & 40A 4-6S ESC Stack
Brushless Motor: iFlight XING 2 1404 3000KV 3800KV 4600KV 2-4S Motor
Propeller: iFlight Nazgul Cine 2525 2.5×2.5 2.5 Inch 3-Blade Propeller
5.8G VTX: iFlight BLITZ 5.8G 40CH 1.6W VTX FPV Transmitter
HD Digital: DJI O3 Air Unit HD Digital System / DJI O4 Air Unit PRO / HD Vista
Lipo Battery: iFlight FULLSEND 14.8V 850mAh 95C 4S Lipo Battery
Packing List:
1 x AOS Cine25 V5 Frame Kit1 x TPU Parts1 x Screw Bag2 x Battery Strap2 x Anti-slip Battery Pad
