Description
Features:
– 7075 Aluminum alloy Side Plate, more durable and Pretect FPV Camera more effectively
– X Frame Arm design, flying more stable and flexible
– Compatible with DJI / Vista HD digital System and Analog VTX
– 19-20mm Camera Mounting Width
– Support 16x16mm and 19x19mm Motor Mounting Hole
– With TPU Mounting Base for Gopro
Specification:
Brand: HSKRC
Model: MAK5

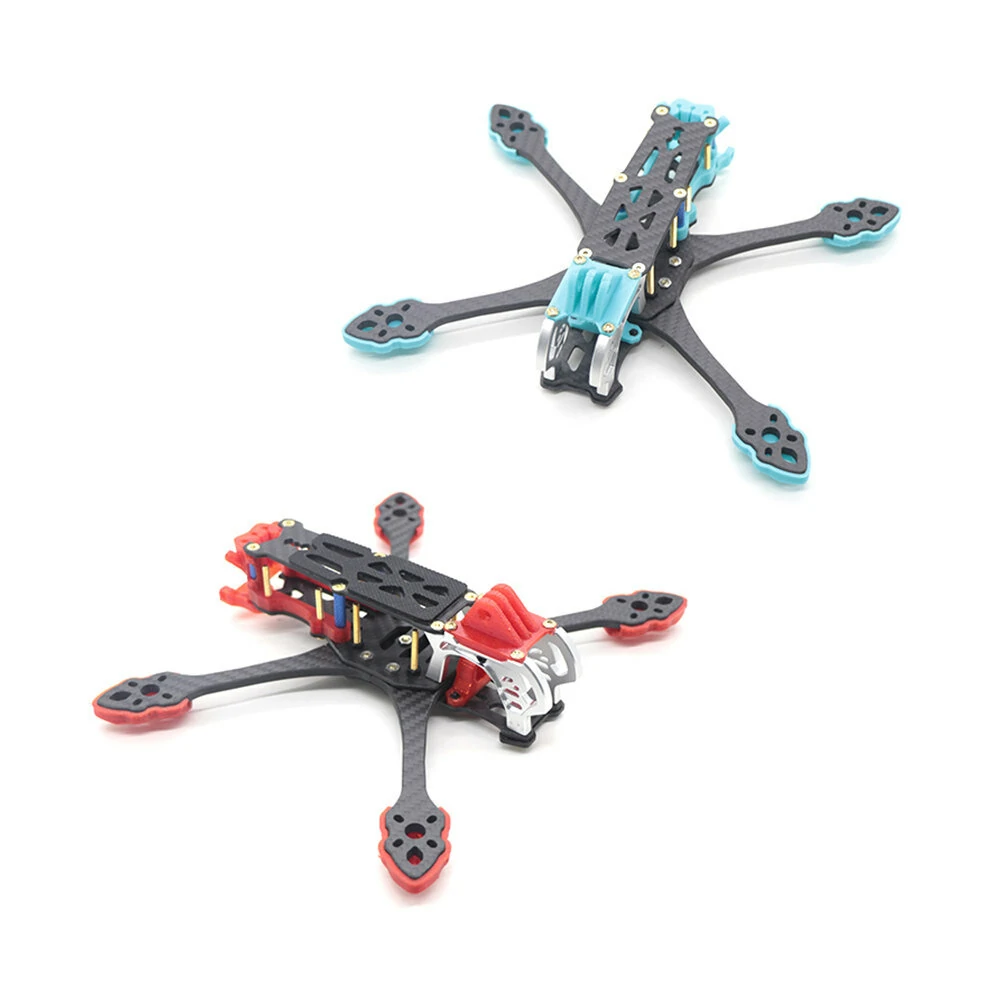

Item Name: 225mm Wheelbase 5 Inch Frame Kit
Wheelbase: 225mm
Material: 3K Carbon Fiber
Upper Plate Thickness: 2.5mm
Bottom Plate Thickness: 2.5mm
Arm Plate Thickness: 5mm
Weight: 170g approxi. ( include 3D Printing Parts)
Flight Controller Mounting Hole: 30.5×30.5mm
VTX Mounting Hole: 30.5×30.5mm, 20x20mm
Motor Mounting Hole: 16x16mm, 19x19mm
Camera Mounting Hole: 19-20mm
Inner Height: 25mm
Screw Size: M2 and M3
Recommend Parts: ( NOT Included)
| FC & ESC |
iFlight BLITZ F7 V1.1 FC & 45A BL_S 4In1 ESC Stack VTX | HGLRC Zeus F748 Stack F722 F7 FC & 48A 4in1 ESC |
| Brushless Motor | iFlight XING-E Pro 2306 1700KV 3-6S Motor | iFlight XING2 2207 1855KV / 2755KV 4-6S Brushless Motor |
| Propeller | Gemfan Windancer 5043 5×4.3 5 Inch 3-Blade Prop | iFlight Nazgul 5030 5 Inch 5x3x3 3-Blade Propeller |
| VTX & Camera | Caddx Ratel 2 1/1.8” Starlight 1200TVL | RunCam Air Unit |
| Lipo Battery | TATTU R-LINE Version 3.0 14.8V 1300mAh 120C 4S Lipo | iFlight FULLSEND 22.2V 1300mAh 130C 6S Lipo |
Package Included:
1x HSKRC MAK5 Frame Kit
