Description
Specification:
Brand: GEPRC
Model: TAKER S60 / S80 / S100
Item Name: 60A / 80A / 100A ESC
|
Item |
Parameter |
|

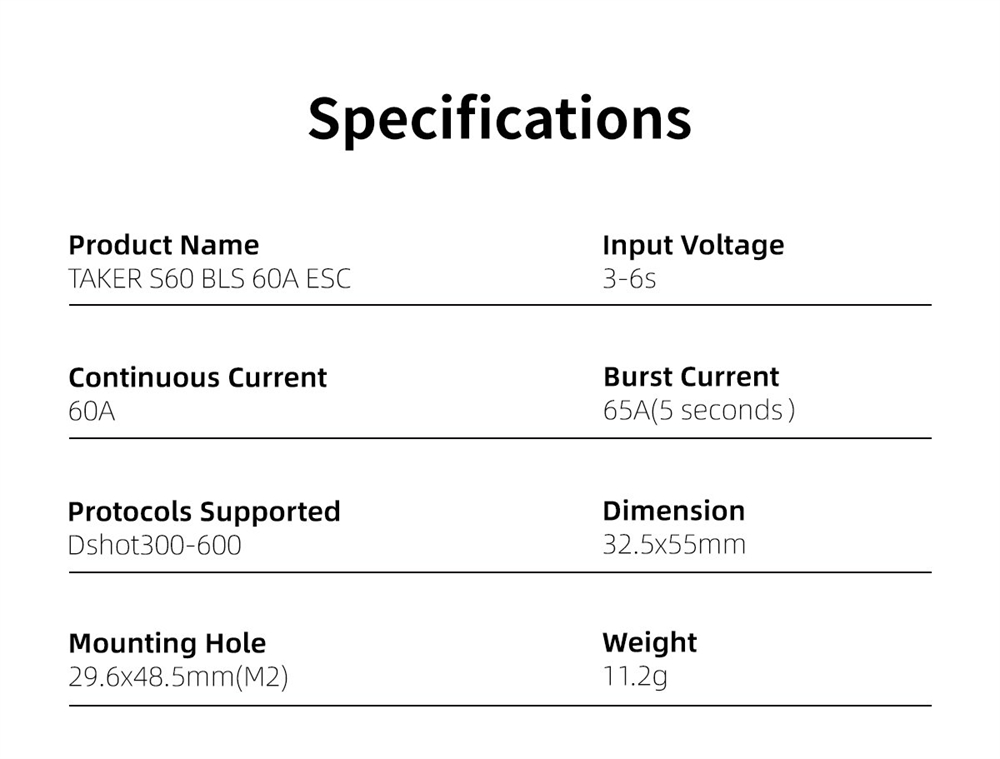

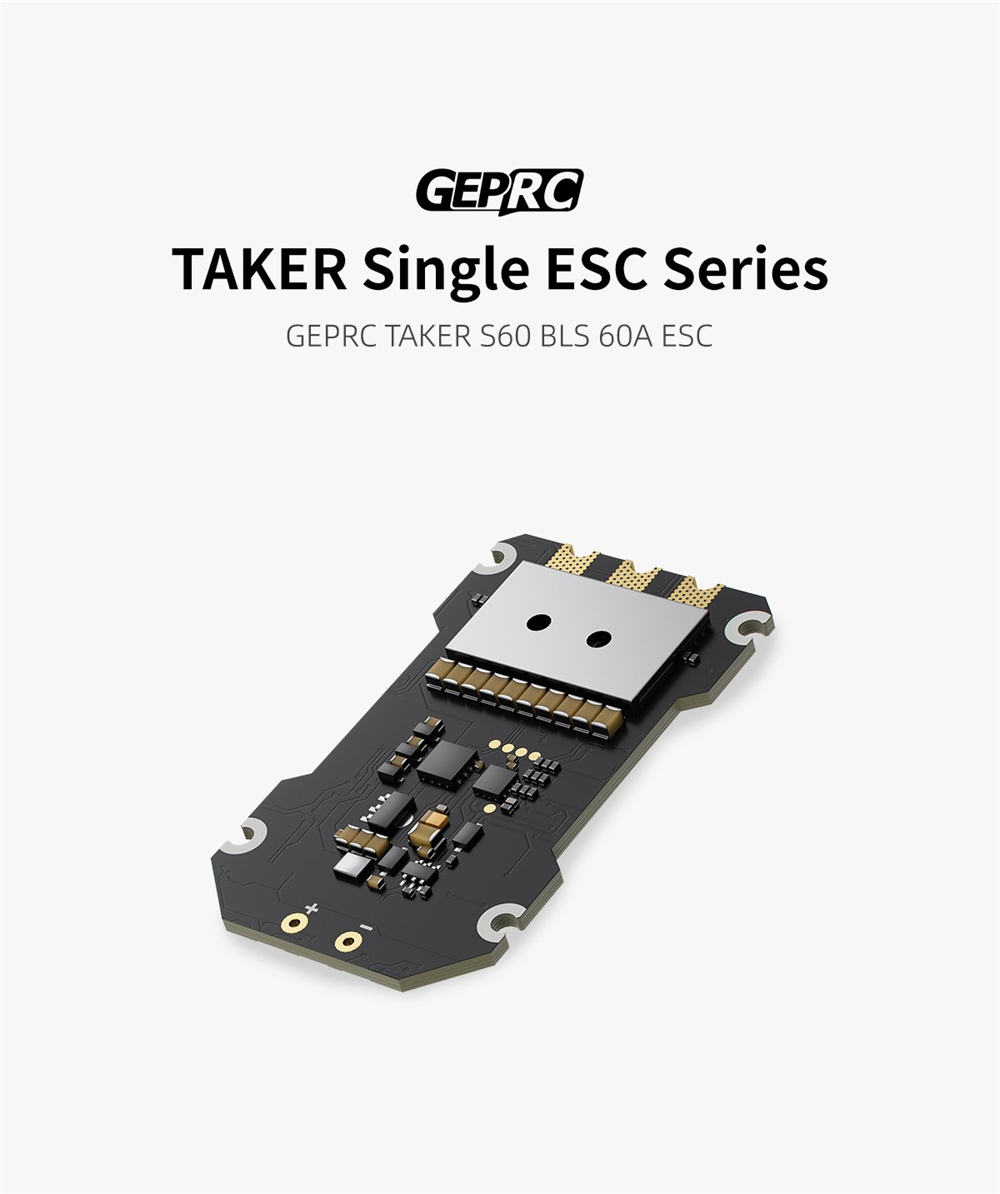

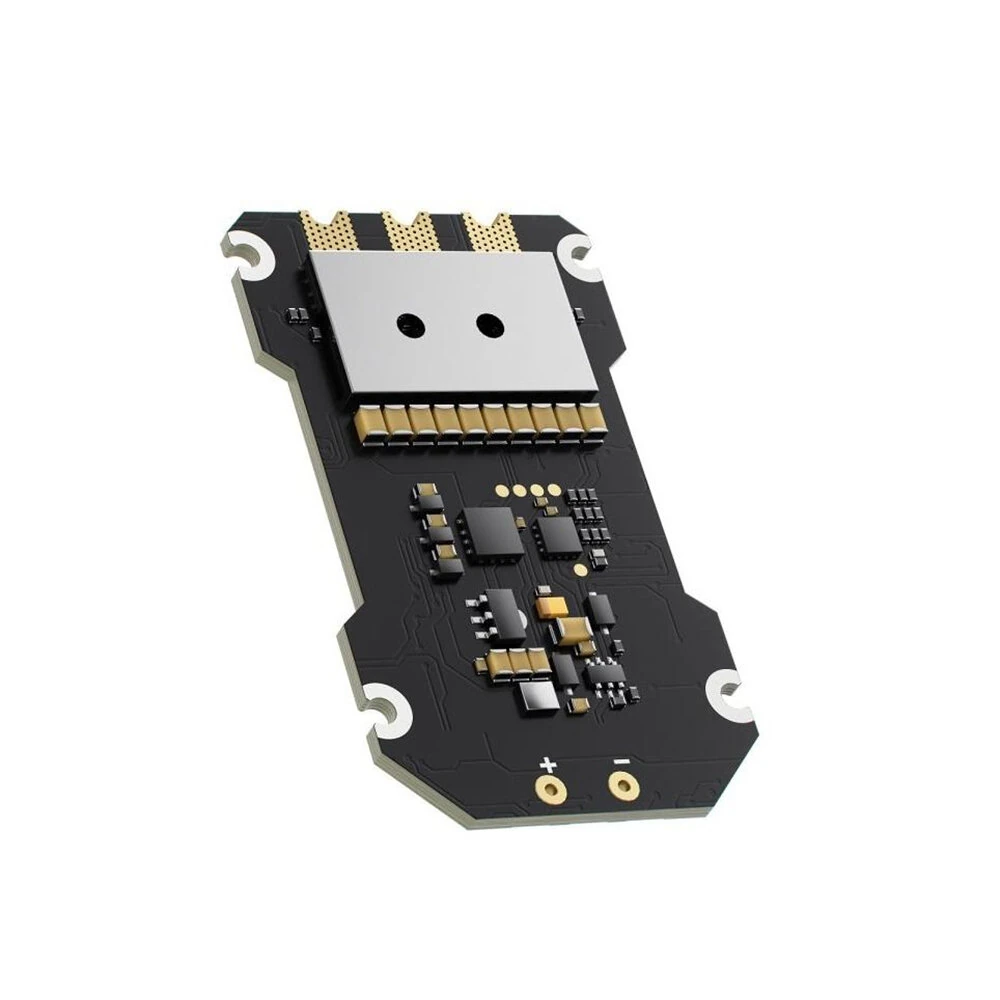

TAKER S60 6S BLS 60A ESC |
Input Voltage: 3-6S Lipo Ammeter: Not Supported Continuous Current: 60A Burst Current: 65A(5 seconds Protocols Supported: Dshot 150/300/600 Dimension: 32.5x55mm Mounting Holes: 29.648.5mm Weight: 11.2g |
|

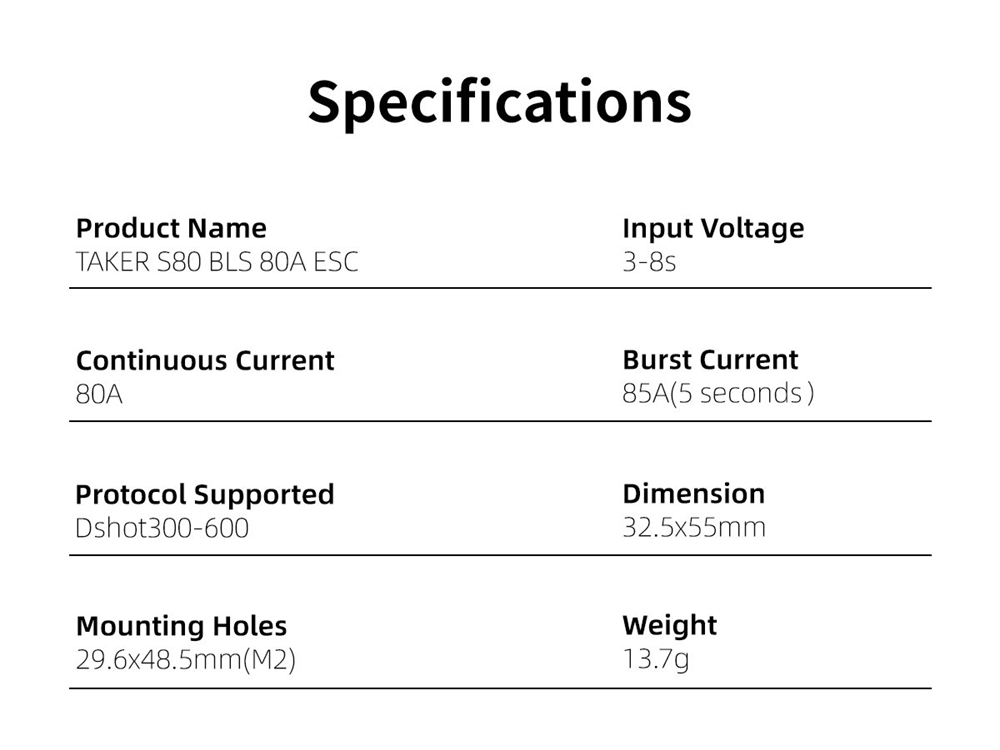

TAKER S80 8S BLS 80A ESC |
Input Voltage: 3-8S Lipo Ammeter: Not Supported Continuous Current: 80A Burst Current: 85A(5 seconds Protocols Supported: Dshot 150/300/600 Dimension: 31.5554.6mm Mounting Holes: 29.648.55mm Weight:13.7g |
|

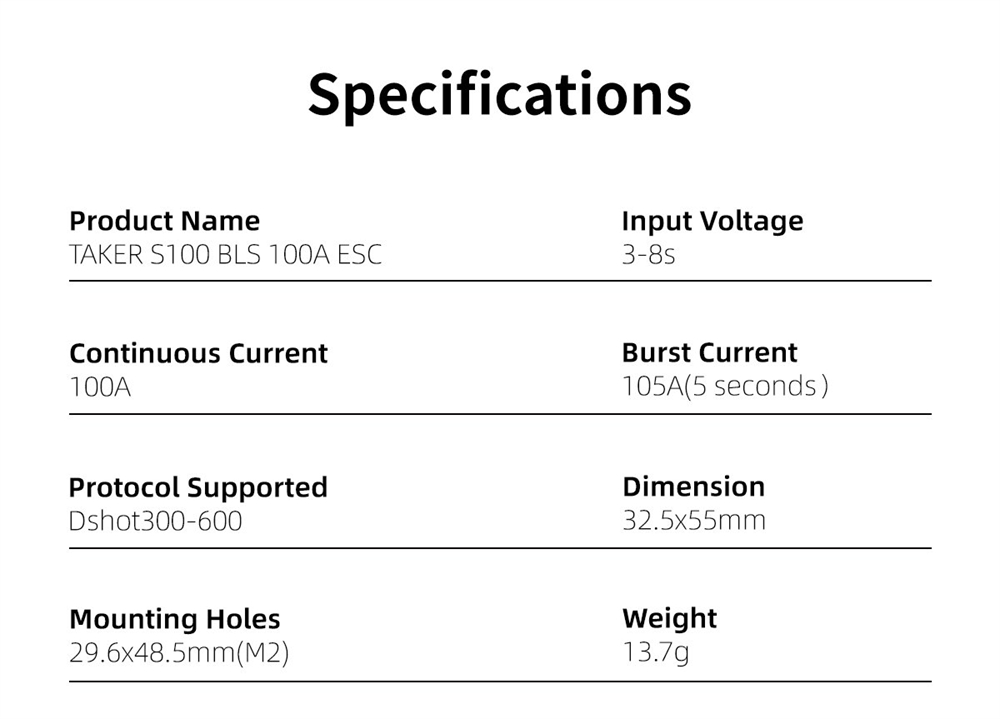

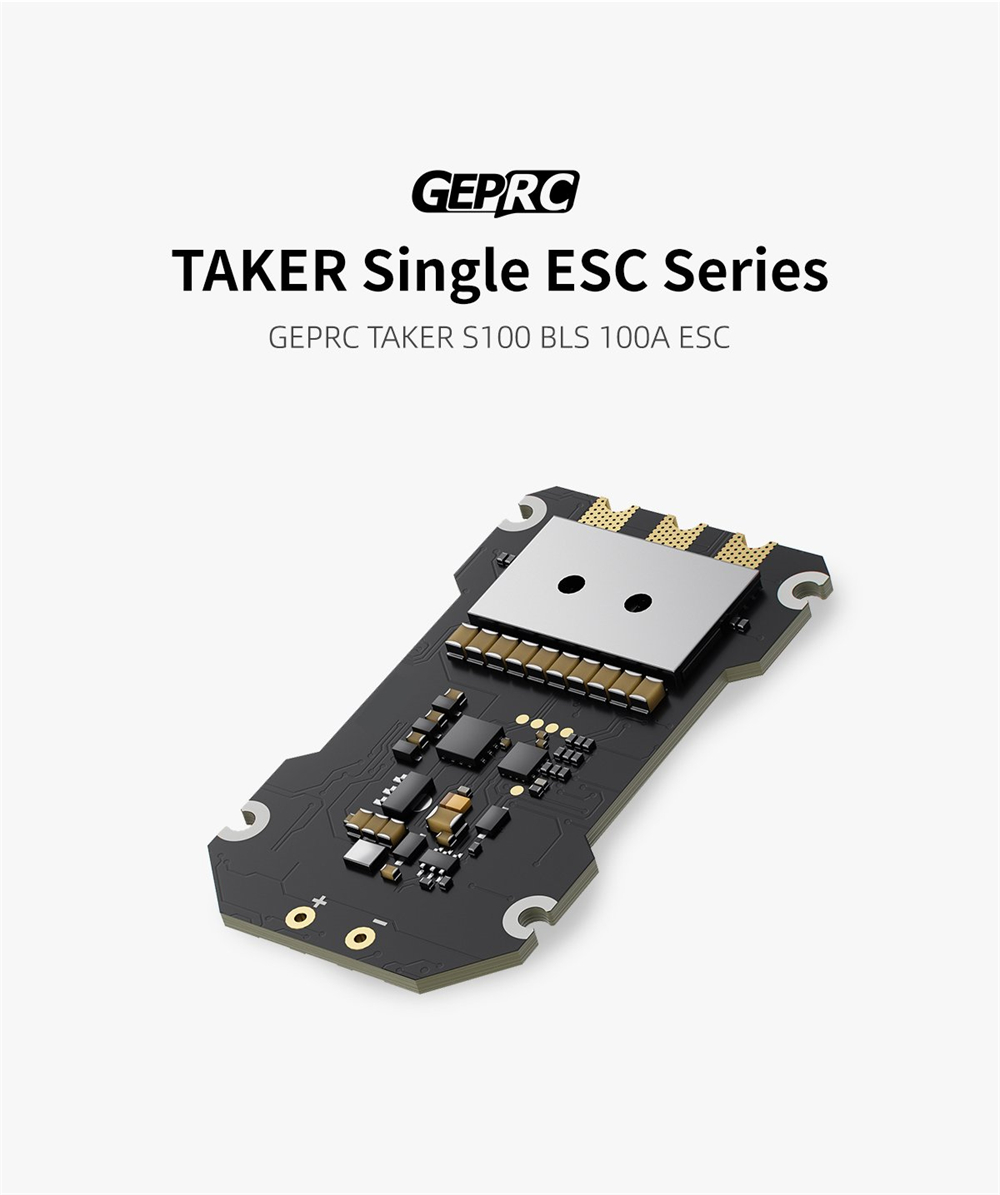

TAKER S100 8S BLS 100A ESC |
Input Voltage: 3-8S Lipo Ammeter: Not Supported Continuous Current: 100A Burst Current: 105A(5 seconds Protocols Supported: Dshot 150/300/600 Dimension: 32.5x55mm Mounting Holes: 29.648.5mm Weight: 13.7g |
|

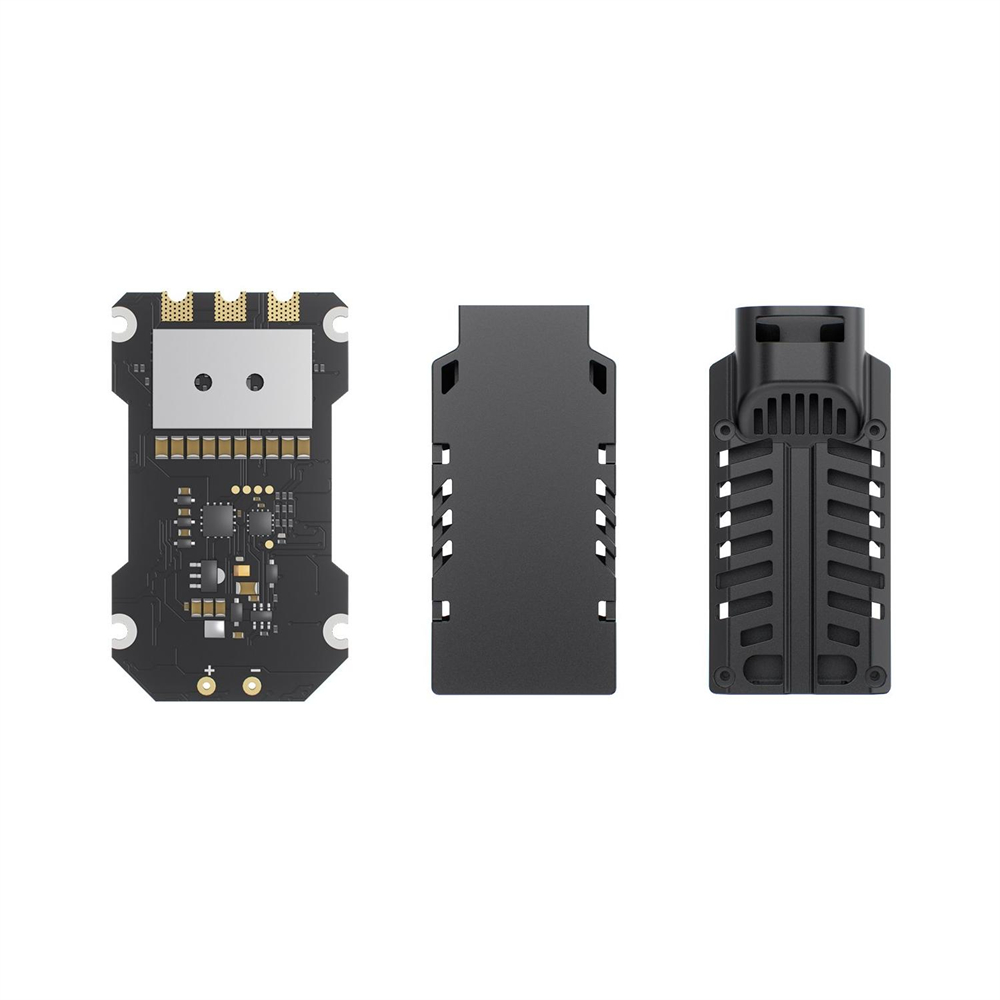

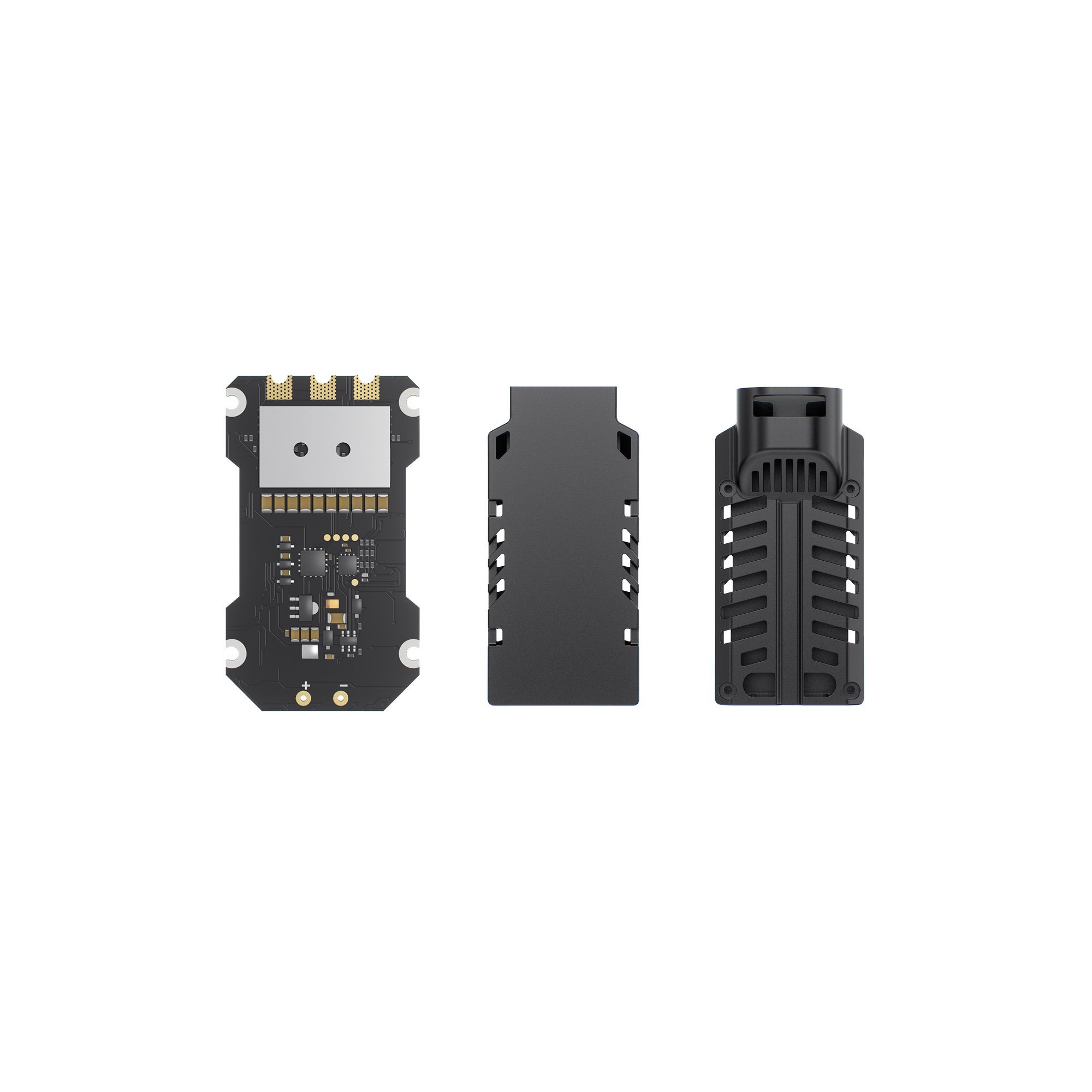

TAKER S60 BLS 60A ESC (With Case Version) |
Input Voltage: 3-6S Lipo Ammeter: Not Supported Continuous Current: 60A Burst Current: 65A(5 seconds Protocols Supported: Dshot 150/300/600 ESC Dimension: 32.5x55mm Mounting Holes: 29.648.5mm Case Material: PC Case Dimension: 36x76mm Weight: 11.2g
|
|
TAKER S80 BLS 80A ESC (With Case Version) |
Input Voltage: 3-8S Lipo Ammeter: Not Supported Continuous Current: 80A Burst Current: 85A(5 seconds Protocols Supported: Dshot 150/300/600 ESC Dimension: 32.5x55mm Mounting Holes: 29.648.5mm Case Material: PC Case Dimension: 36x76mm Weight: 28g |
|
TAKER S100 BLS 100A ESC(With Case Version) |
Input Voltage: 3-8S Lipo Ammeter: Not Supported Continuous Current: 100A Burst Current: 105A(5 seconds Protocols Supported: Dshot 150/300/600 ESC Dimension: 32.5x55mm Mounting Holes: 29.648.5mm Case Material: PC Case Dimension: 36x76mm Weight: 28g |

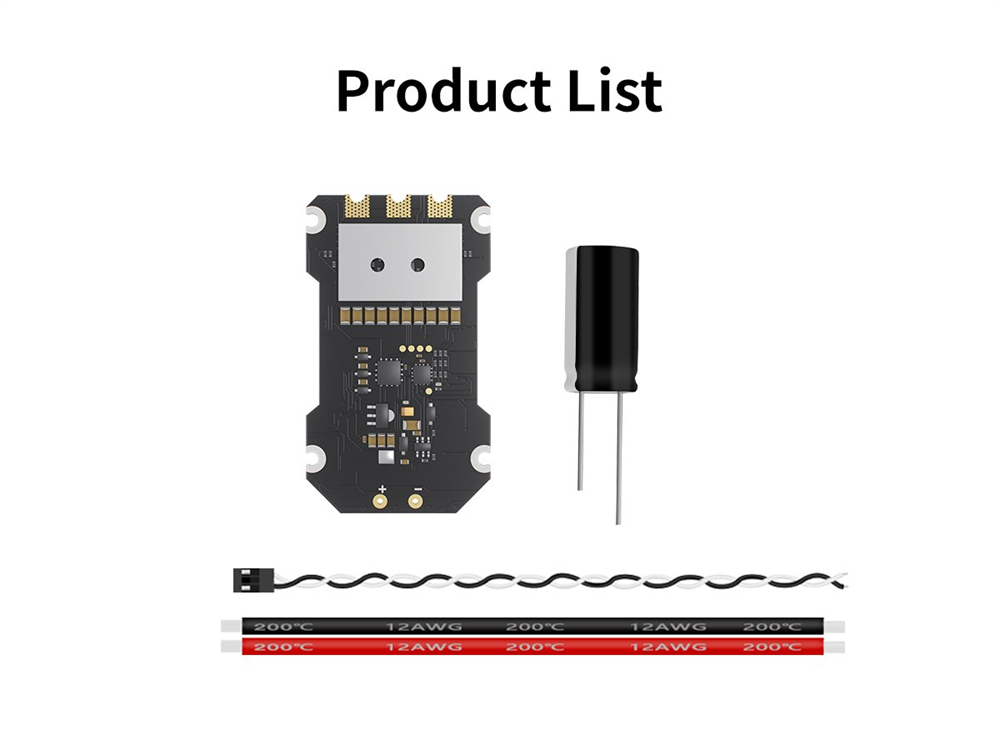

Package included:
|
Item |
Included |
|

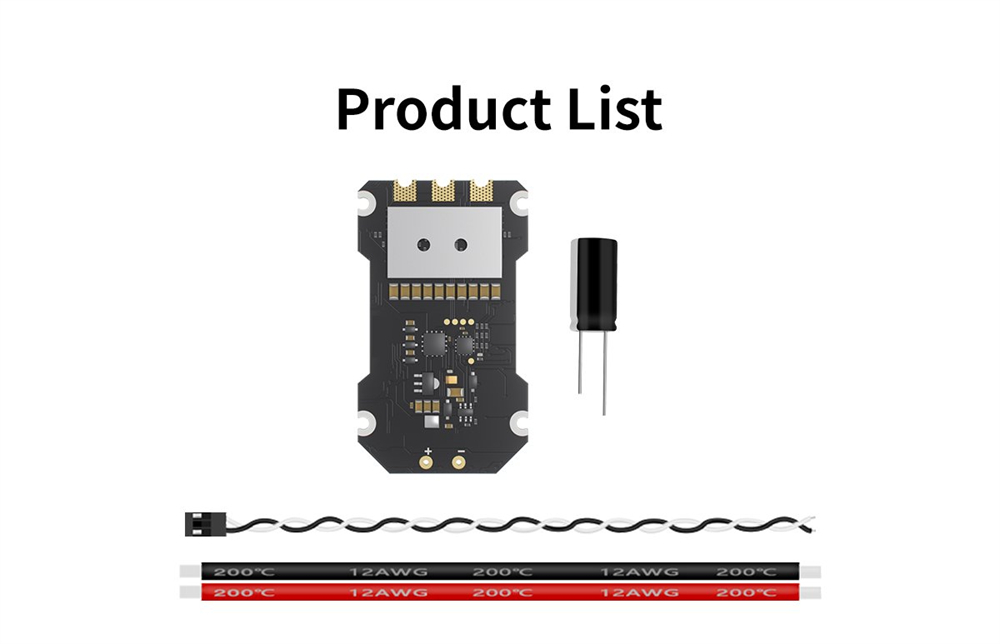

TAKER S60 6S BLS 60A ESC |
1 x ESC Board 1 x 35V 1000F Capacitor 1 x 12AWG (3.4mm) Red Silicone Wire (240mm) 1 x 12AWG (3.4mm) Black Silicone Wire (240mm) 1 x 2.54mm Dupont Line 2P Single-end Socket Connector Cable (150mm) |
|
TAKER S80 8S BLS 80A ESC |
1 x TAKER S80 8S BLS 80A ESC 1 x 50V 1000F 12.5X25mm Capacitor 1 x Black Power Cable (10AWG 240mm) 1 x Red Power Cable (10AWG 240mm) 1 x 2.54mm Dupont Line 2P Single-end Socket Connector Cable (150mm) |
|

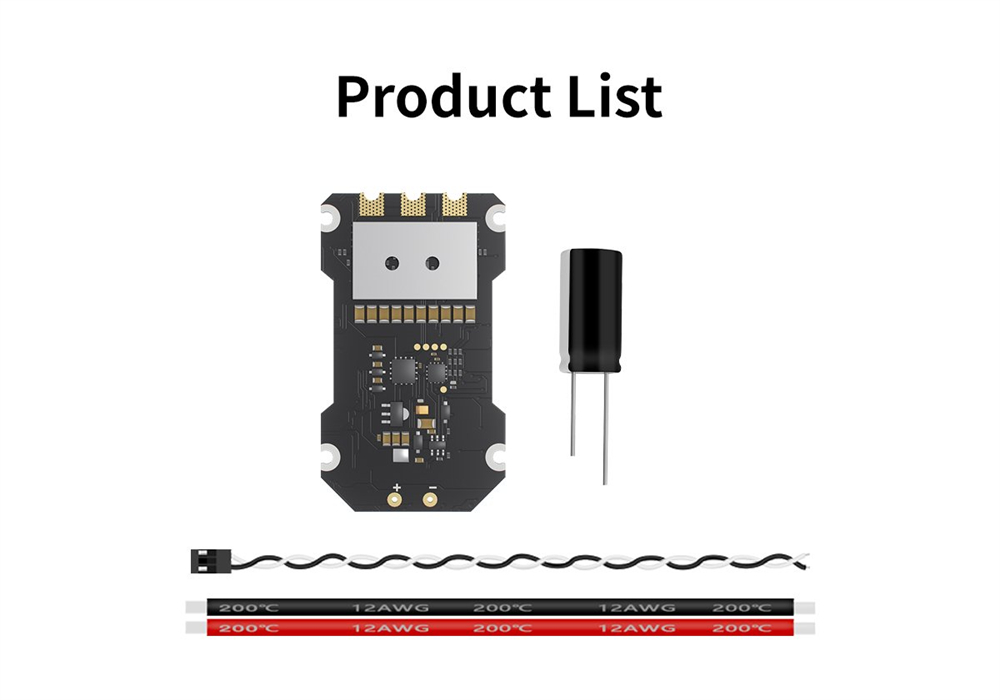

TAKER S100 8S BLS 100A ESC |
1 x ESC Board 1 x 50V 2200F Capacitor 1 x 12AWG (3.4mm) Red Silicone Wire (240mm) 1 x 12AWG (3.4mm) Black Silicone Wire (240mm) 1 x 2.54mm Dupont Line 2P Single-end Socket Connector Cable (150mm) |
|

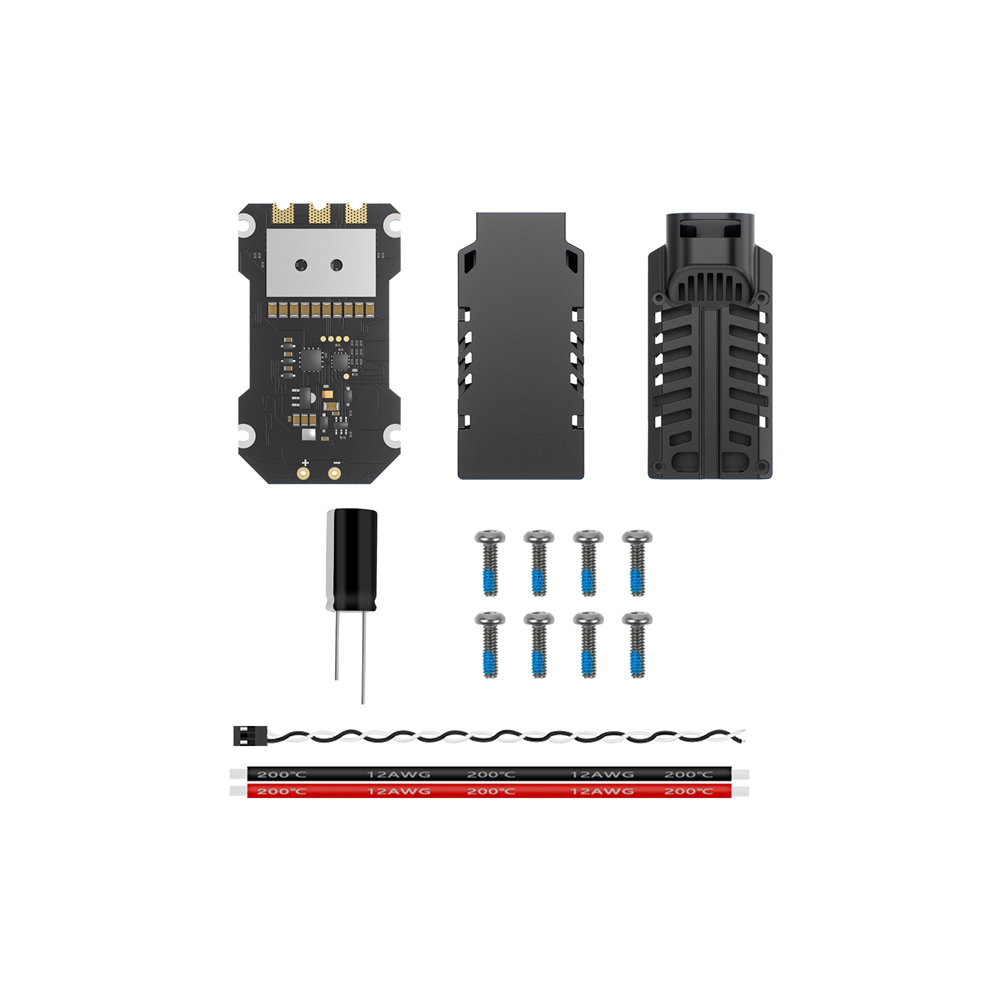

TAKER S60 BLS 60A ESC (With Case Version) |
1 x ESC Board 1 x 35V 1000F Capacitor 1 x 12AWG (3.4mm) Red Silicone Wire (240mm) 1 x 12AWG (3.4mm) Black Silicone Wire (240mm) 1 x 2.54mm Dupont Line 2P Single-end Socket Connector Cable (150mm) 1 x Single ESC Top Case (Black) Molded Part 1 x Single ESC Bottom Case (Black) Molded Part 8 x Grade 12.9 Round Head Hex Socket Screws, Black Nickel Plated M2*7 [Pre-applied Glue] |
|
TAKER S80 BLS 80A ESC (With Case Version) |
1 x ESC Board 1 x 50V 1000F Capacitor 1 x 10AWG (3.4mm) Black Silicone Wire (240mm) 1 x 10AWG (3.4mm) Red Silicone Wire (240mm) 1 x 2.54mm Dupont Line 2P Single-end Socket Connector Cable (110mm) 1 x Single ESC Top Case (Black) Molded Part 1 x Single ESC Bottom Case (Black) Molded Part 8 x Grade 12.9 Round Head Hex Socket Screws, Black Nickel Plated M2*7 [Pre-applied Glue] |
|
TAKER S100 BLS 100A ESC(With Case Version) |
1 x ESC Board 1 x 50V 2200F Capacitor 1 x 10AWG (3.4mm) Black Silicone Wire (240mm) 1 x 10AWG (3.4mm) Red Silicone Wire (240mm) 1 x 2.54mm Dupont Line 2P Single-end Socket Connector Cable (150mm) 1 x Single ESC Top Case (Black) Molded Part 1 x Single ESC Bottom Case (Black) Molded Part 8 x Grade 12.9 Round Head Hex Socket Screws, Black Nickel Plated M2*7 [Pre-applied Glue] |
