Description
Features:
1. Lightweight design, only 13.g (13CM Wire)
2. High-quality arc magnetic steel, strong magnetic force, and more efficient flight.
3. Optimized magnetic circuit design, large motor torque, strong explosive power, and extremely quick response speed.
4. High strength motor structure, outstanding durability.
5. Suitable for 3 whoop FPV, 3-4 Toothpick & Long Range FPV.
Specifiction:
Brand: Geprc

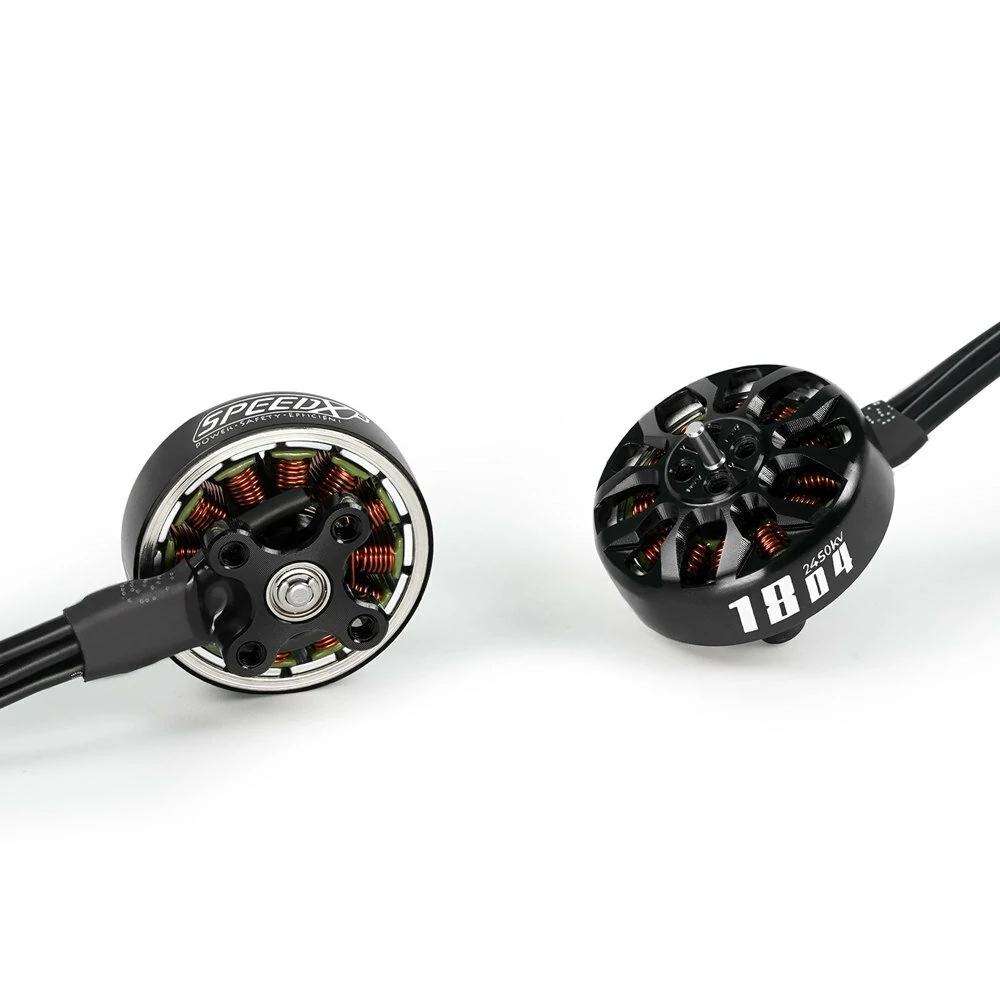

Model: SPEEDX2 1804
Item Name: 1804 2450KV 4-6S / 3450KV 2-4S Brushless Motor
Configuration: 12N14P
Magnet: N52H ARC
Stator Diameter: 18mm
Stator Height: 4mm
Shaft Diameter: 2mm(in)1.5mm(out)
Size: 22.74mm*13.2mm
Lead Wires: 24#AWG 150mm
Mounting Holes: 12mm x 12mm(M2 Screw)
Color: Black / Black + Cyan
Weight: 13.2 g (13CM Wire)
| 2450KV | 3450KV | |
| Input Voltage | 4-6S | 2-4S |
| Max Continuous Power(W) (3S) | 452.2W | 404.8W |
| Max Current (5S) | 18.8A | 25.3A |
Package Included:
1x SPEEDX2 1804 Motor
5x M2*6mm Screw
5x M2*8mm Screw
