Description
Notice: It is empty frame kit, comes unassembled. Need build by buyers.
Specifications:
Brand: Geprc
Model: RACER

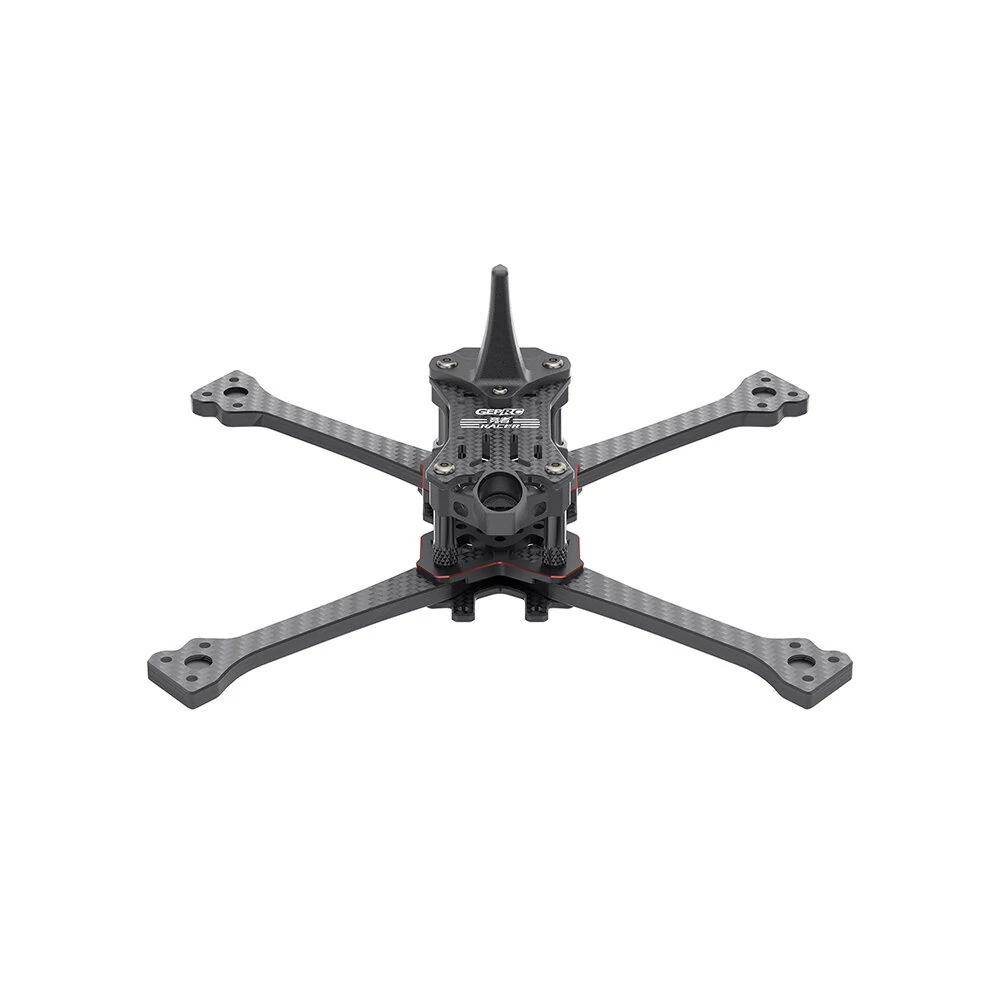

Frame: GEP-RACER Frame
Color: Silver Edge / Red Edge
Dimensions: 175173mm
Wheelbase: 208mm
Top plate: 2.0mm
Aluminum plate: 2.0mm
Bottom plate: 2.0mm
Arm thickness: 5.0mm
Aluminum column size: M3*6*24mm
FC mounting hole: 30.5mm*30.5mm/25.5mm*25.5mm/20mm*20mm
VTX mounting hole: 20mm*20mm
Motor mounting hole: 16mm*16mm
Camera installation space: 14mm
Propeller: 5 inches
Weight: 78g2g
Features:
Constructed with high-strength 7075 aviation aluminum alloy splint for durability.
Utilizes premium T700 carbon fiber plate material ensuring a rigid structure.
Shark fin support design ensures easy flipping over after a crash.
Convenient maintenance with the quick-release design of the arm.
25.5mm*25.5mm M3 screw FC hole,matching the newest GEPRC 25.5MM stack.
Recommend Parts ( Not Included):
| FC & ESC: | 20x20mm iFlight BLITZ Mini F7 FC & Mini E55 4in1 ESC | 20x20mm HAKRC 35A ESC Mini F7 DJI Stack |
| Brushless Motor: | iFlight XING2 2207 1855KV / 2755KV 4-6S | FlyFishRC Flash 2207 1850KV 6S / 2750KV 4S |
| Propeller: | Gemfan Hurricane 51466 | Ethix S5 5040 5×4 5 Inch 3-blade |
| VTX & Camera | 20X20mm EWRF VTX 5.8Ghz 40CH 25/200/650mW VTX | Walksnail Avatar HD Kit |
| Lipo Battery: | ZOP Power 22.2V 1300mAh 100C 6S XT60 Plug | CNHL Black Series 6S 22.2V 1500mAh 100C XT60 Plug |
Package included:
1 x Top plate
1 x Bottom plate
1 x Aluminum plate
1 x Camera mount
1 x VTX antenna mount
1 x Shark fin print
4 x M3*6*24mm aluminum column
2 x 20*250mm battery cable ties
2 x Battery anti-skid pads
1 x Screw pack
1 x L-shaped screwdriver 1.5mm
1 x L-shaped screwdriver 2mm
