Description
Specification:
Brand: FlyingRC

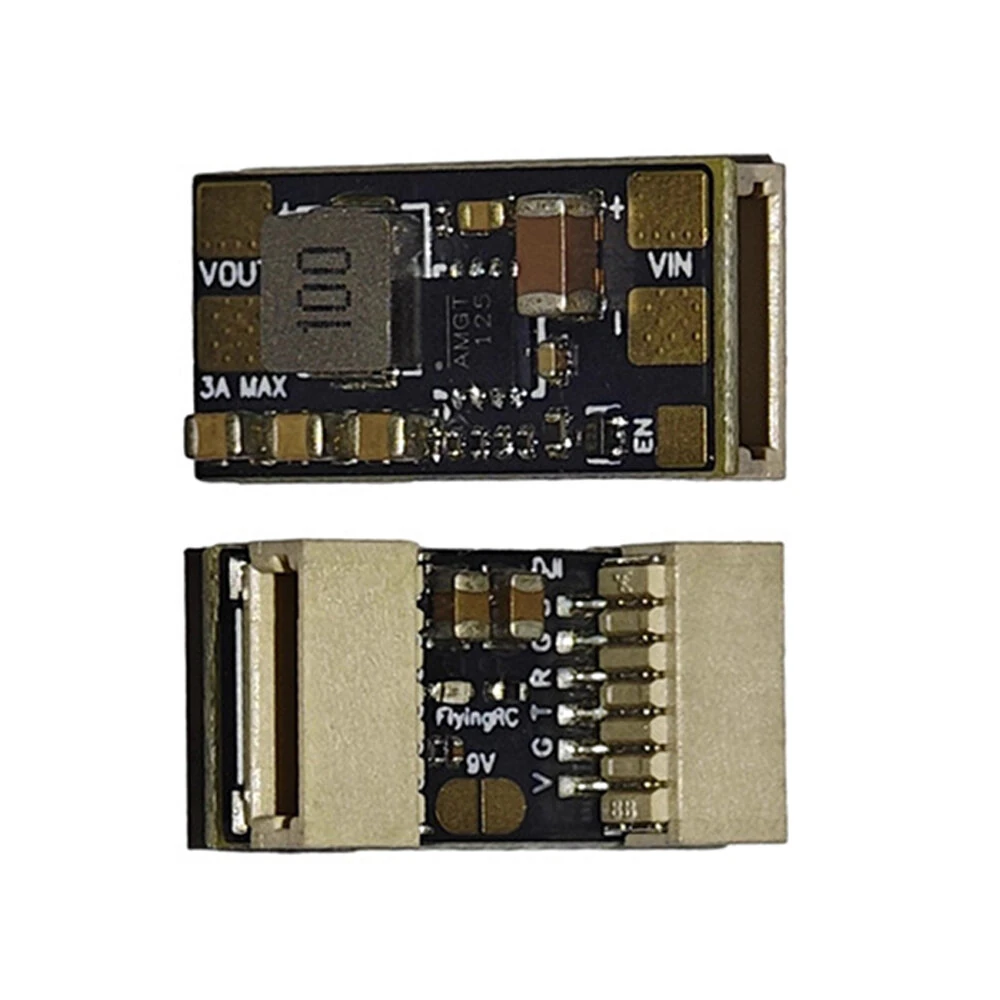

Model: BEC Step-down Module
Input voltage: 2-6S lithium battery input
Output voltage: 5V/2A; 9V/2A, default output is 5V, 9V output via welding jumper
Size: 17.1×8.4×6.3mm (0.67×0.33×0.25inch)
Weight: About 1g
Features:
– Direct plug connection, original factory wire sequenc, plug and play! Compatible with DJI O4/O4 PRO/O3 digital image transmission.
– Input voltage: 7-26V, 2-6S LiPo (Input voltage must be higher than the set output voltage + 0.8V; otherwise, the output voltage will be input voltage – 0.8V).
– Output voltage: 5V, 9V optional. The default output is 5V, and 9V output can be selected through the jumper pad.
(The voltage output is selected via the jumper pads. If the jumper pad is not short-circuited, the default output is 5V.).
– Output current (continuous): 5V/2A; 9V/2A.
Package included:
1 x FlyingRC Mini BEC
