Description
Specification:
Brand: Flycolor

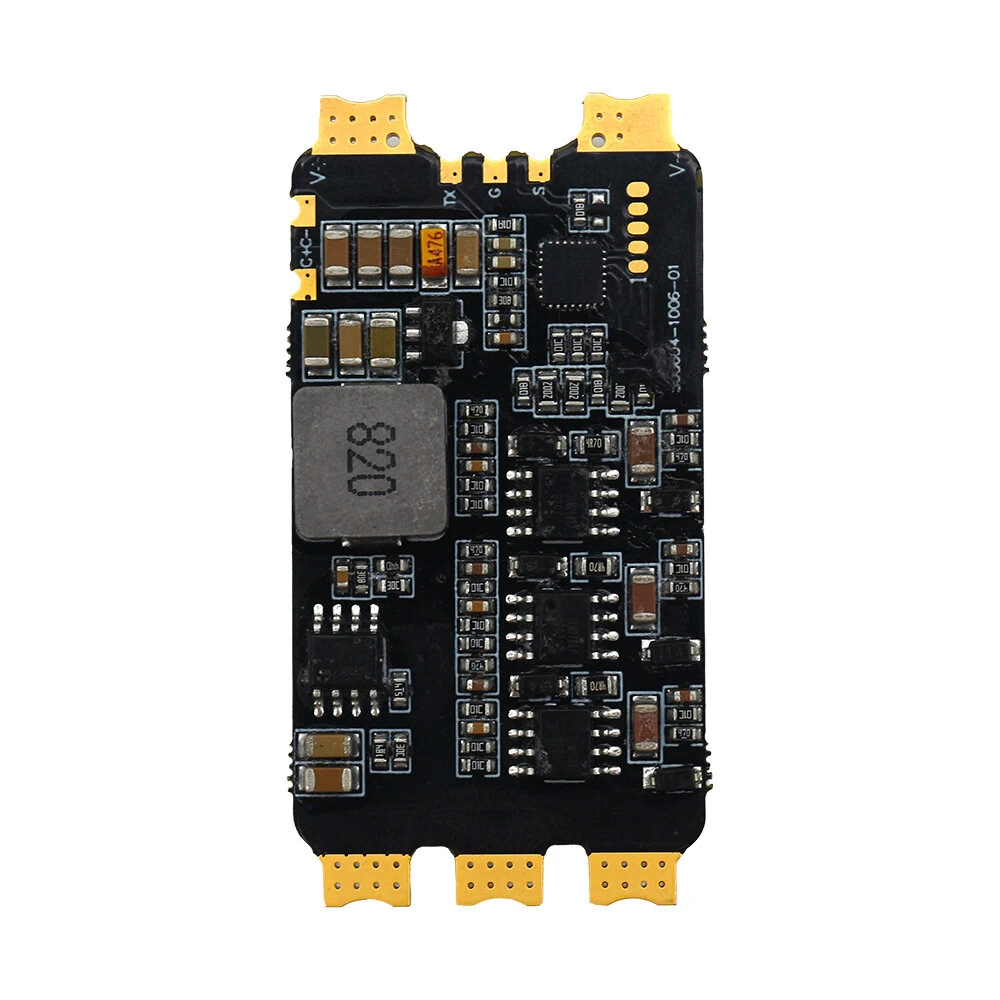

Model: X-Cross HV3
Item Name: 80A 5-12S ESC
|
Model |
HV3-60A |
HV3-80A |
|
Battery |
5-12S |
5-12S |
|
Con. Current |
60A |
80A |
|
Burst Current(10S) |
80A |
100A |
|
BEC |
NO |
NO |
|
Weight |
25.5g |
25.5g |
|
Size |
55x28x10mm |
55x28x10mm |
|
Firmware |
Flycolor_X_Cross_HV3_G071 |
Flycolor_X_Cross_HV3_G071; |
|
Typical Applications |
FPV |
FPV |
Feature:
1. Optimized ARM 32-bit Cortex MCU enhances throttle linearity and boosts response speed by 25%.
2. Aluminum heat sinks reduce temperature rise effectively in high-performance applications.
3. Multi-protection system safeguards against temperature, current, low RPM, stall, and low voltage.
4. Supports pulse width input of common PWM throttle mode (1-2ms), Oneshot125 (125-250us), Oneshot42 (41.7-83.3us) and Multshot (5-25us); supports all Dshot and Proshot digital signals.
Package Included:
1x Flycolor X-Cross HV3 80A ESC
