Description
Notice: 1. It is empty frame kit, comes unassembled. Need build by buyers.
2. From June 20, 2025, the frame will be upgraded to adapt to the DJI O4 Pro version.
Specification:
Brand: DeepSpace
Model: SEEKER5

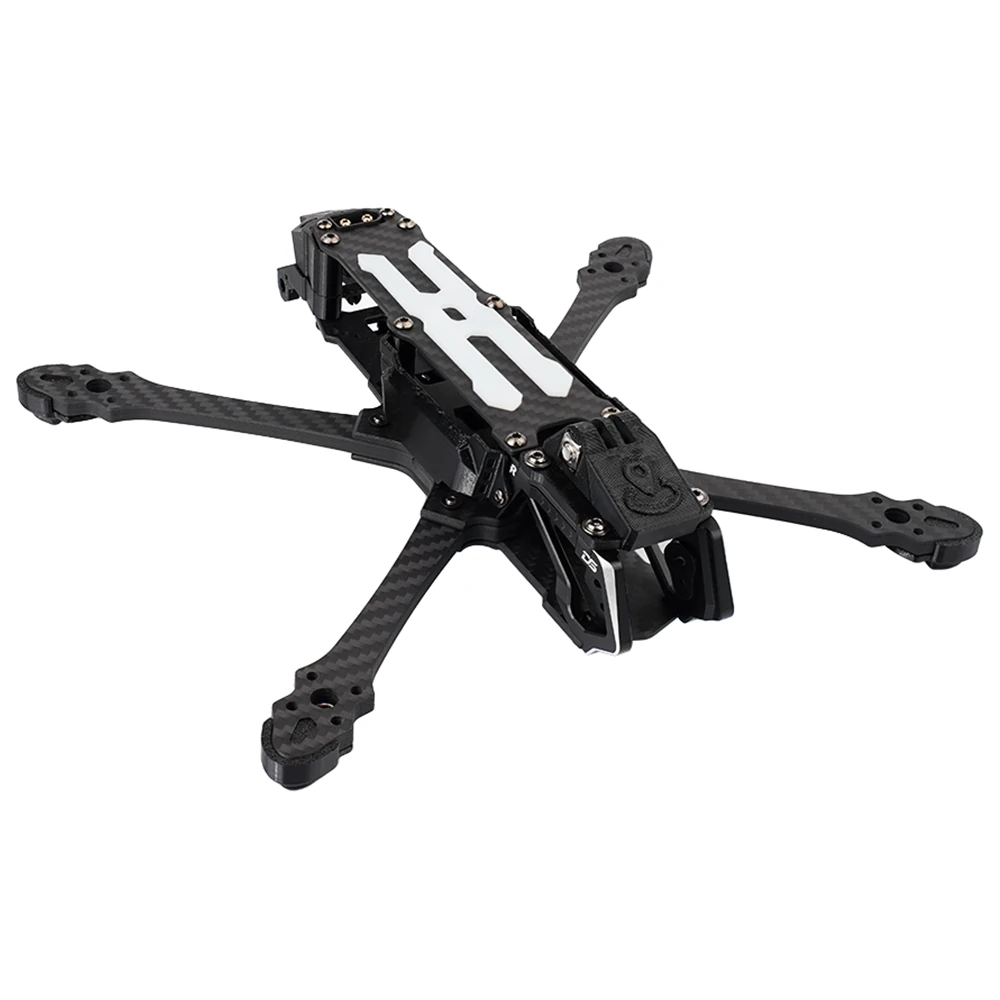

Item Name: 5 Inch FPV Frame Kit
Type: DC / XL (Optional)
Wheelbase: DC 228mm / Squashed X 224mm
Prop Size: Max 5.1 inch
Motor Mounting: 16*16mm(M3)
Stack Mounting: 20/30.5mm(M3)
Camera Space: 14~20mm
VTX Mounting: 20 /25.5(M2)/ 30.5mm(M3)
Top Plate Thickness: 2mm
Middle Plate Thickness: 2.5mm
Bottom Plate Thickness: 2.5mm
Arm Thickness: 5mm
Application: Original Replace Frame for DeepSpace SEEKER5 FPV Racing Drone.
Feature:
– Front-mounted design of GPS module: Avoid interference for quick satellite acquisition and quantity.
– Externaldesign of the receiver: Boost install and ease maintenance.
– CNC aluminum alloy side plates: Effectively protect the lens.
– Custom silicone shock pads: Effectively filter high-freq vibes for the smooth and stable footage.
– Arminter locking design.
– Standard side plates: Prevent stack from grass & mud pollution.
– Quick-release arm. Easy replacement.
– Rear fixed power plug. Compatible with front-out cord.
Recommend Parts: ( NOT Included)FC & ESC: F722 BL32 60A stackBrushless Motor: DS Aether 2207.3 1960KV
Propeller: Gemfan 51433VTX&Camera: DJI O4 Pro Air UnitLipo Battery: 6S 1300–1550mAh
Package Included:
1x SEEKER5 5 Inch FPV Frame Kit
