Description
Description:

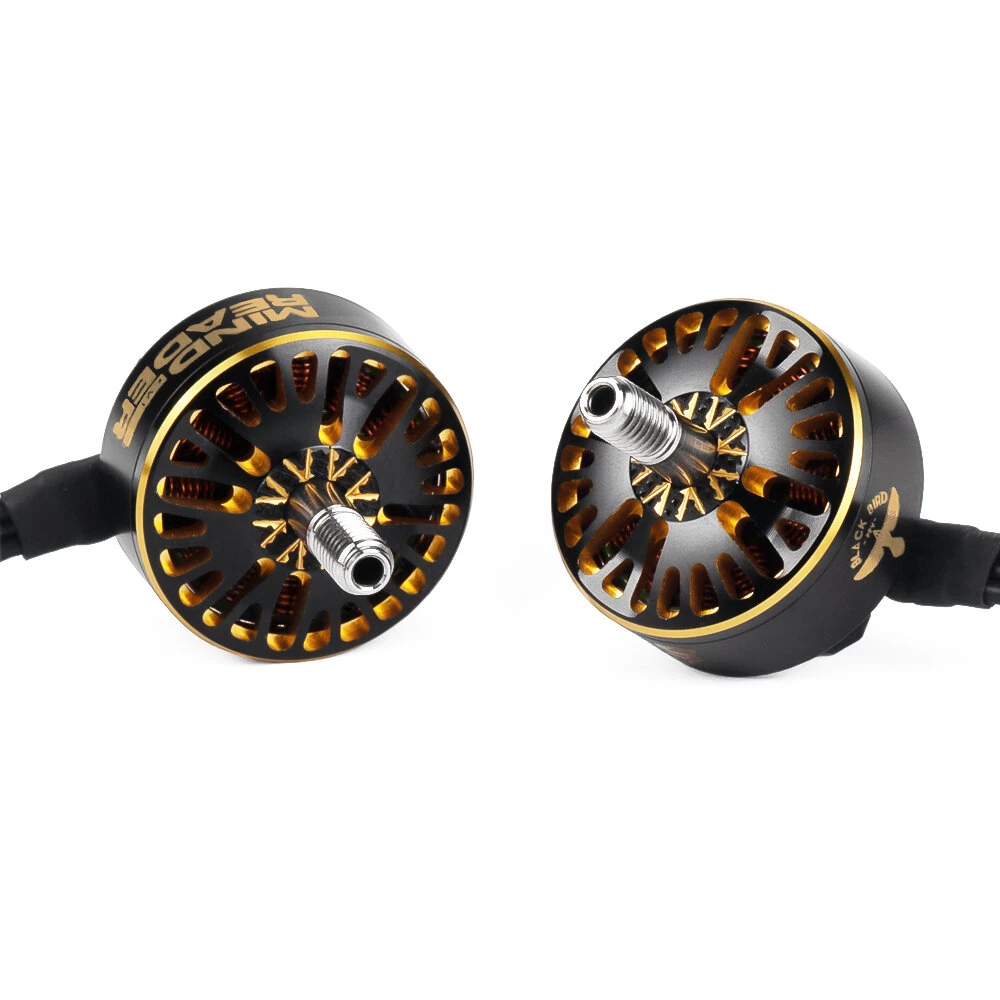

The co-branded Axisflying x BlackBird v4 2307 5-inch brushless motor is a top-quality FPV freestyle option, featuring Sbang technology. Designed for 5-inch drones, it delivers excellent power, responsiveness, and durabilityideal for dynamic aerial maneuvers, blending both brands’ expertise.
BBV4 motors released with two KVs, 2060 and 1960 for 6s. 2060 is the favorite kv for Blackbird, it is an extreme kv design for top pilots who is really forcusing on extrem freestyle movement, such like sbang. 1960 kv is easy for every freestyle pilots to tune and funfly.
Feature:
– An IP53 rating dustproof and waterproof bearing placement design.
– BST protects from environmental elements and prolongs the smoothness and lifespan of the bearing .
– Increased thrust efficiency and say goodbye to crush motor bearings
– The motor is very powerful that can get over 1.9KG and most current is about 50A
Specification:
Brand: Axisflying
Model: BlackBird v4 2307
KV: 1960KV / 2060KV Brushless Motor
|
Model |
Parameter |
|
BBV4 2307 1960KV Brushless Motor |
KV: 1960 Slot poles: 12N14P Internal Resistance: 61.54m Size: 27.8*32.9mm Shaft Diameter: 5mm Silicone Line: 20# 150mm Rated Voltage: 6S Weight(wire included): 34.74g |
|
BBV4 2307 2060KV Brushless Motor |
KV: 2060 Slot Poles: 12N14P Internal Resistance: 57.34m Size: 27.8*32.9mm Shaft Diameter: 5mm Silicone Line: 20# 150mm Rated Voltage: 6S Weight(Wire included): 34.69g |
Package Included:
1 x BlackBird v4 2307 Motor
4 x M3*8 Screws for Motor
1 x M3*4 Screw for Lock Shaft
1 x M5 Flanged Nylon Insert Lock
1 x O-ring
2 x Washers
