Description
Note: This Product is Compatible with Analog/ DJI O3/ DJI O4 Lite for FPV Racing Drones.
Specification:
Brand: Asixflying
Models: Manta 5 SE

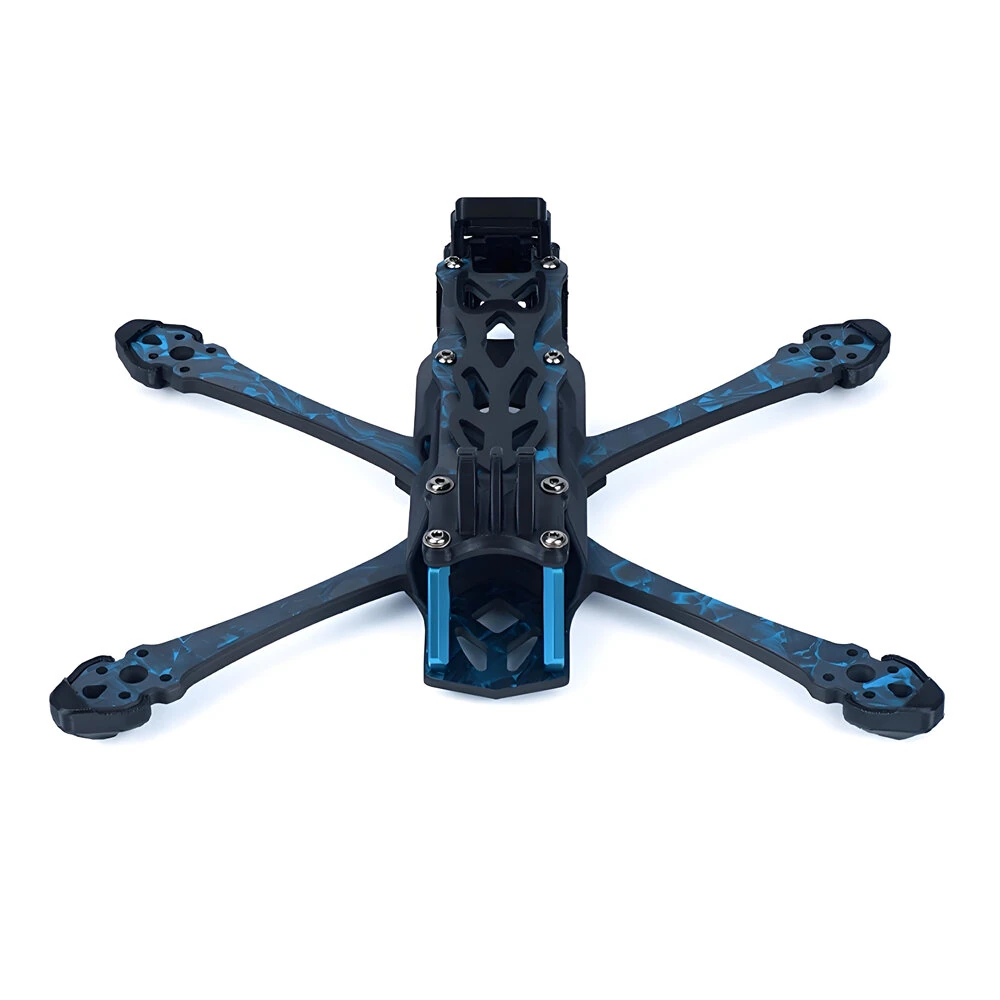

Product Name: Asixflying Manta 5 SE Frame Kit
Wheelbase: 223mm
Top Plate: 2mm
Center Plate: 3mm
Bottom Plate: 3mm
Arm Thickness: 5.5mm
Carbon Fiber Plate: T700
Max Stack Height: 20mm
Camera Installation: 1420mm
Stack Installation: 20mm(M3)&30.5mm(M3)
VTX Installation: 20mm&25mm (M2)
Motor Installation: 16mm*16mm / M3
Supported Prop Size: Max 5.1 inch
Frame Weight: 155 5g(Includes printouts)
Recommended Configuration(Not Include):
VTX&Camera: DJI O4 Air Unit/ DJI O3 AIR UNIT / Axisflying Smurfs VTX-5.8G-1.6W(Optional)
FC&ESC: F405 FC 60A ESC STACK / Argus mini 55A
Propeller: 5.1*3.7*3
Motor: 2207 / 2306 Series Motor
Battery: LIHV/ LIPO 1050-1300 mAH 6S
Package Included:
1x Asixflying Manta 5 SE Frame Kit
