Description

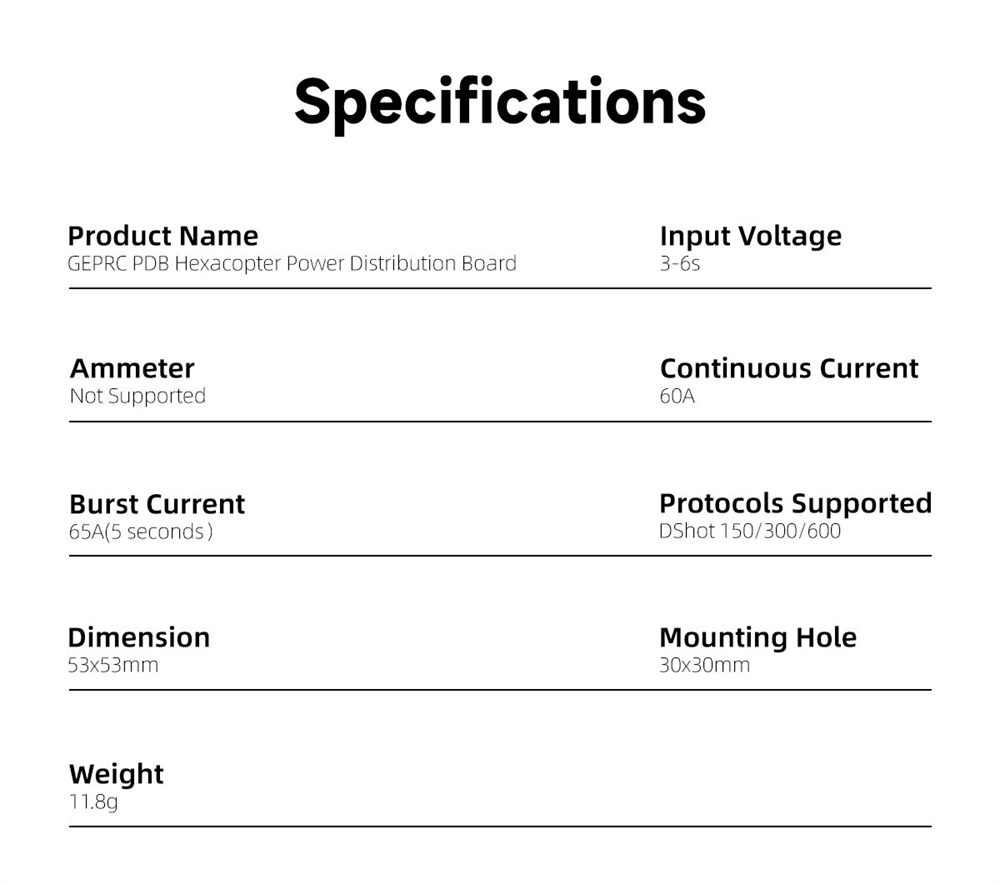

Specification:
Brand: GEPRC

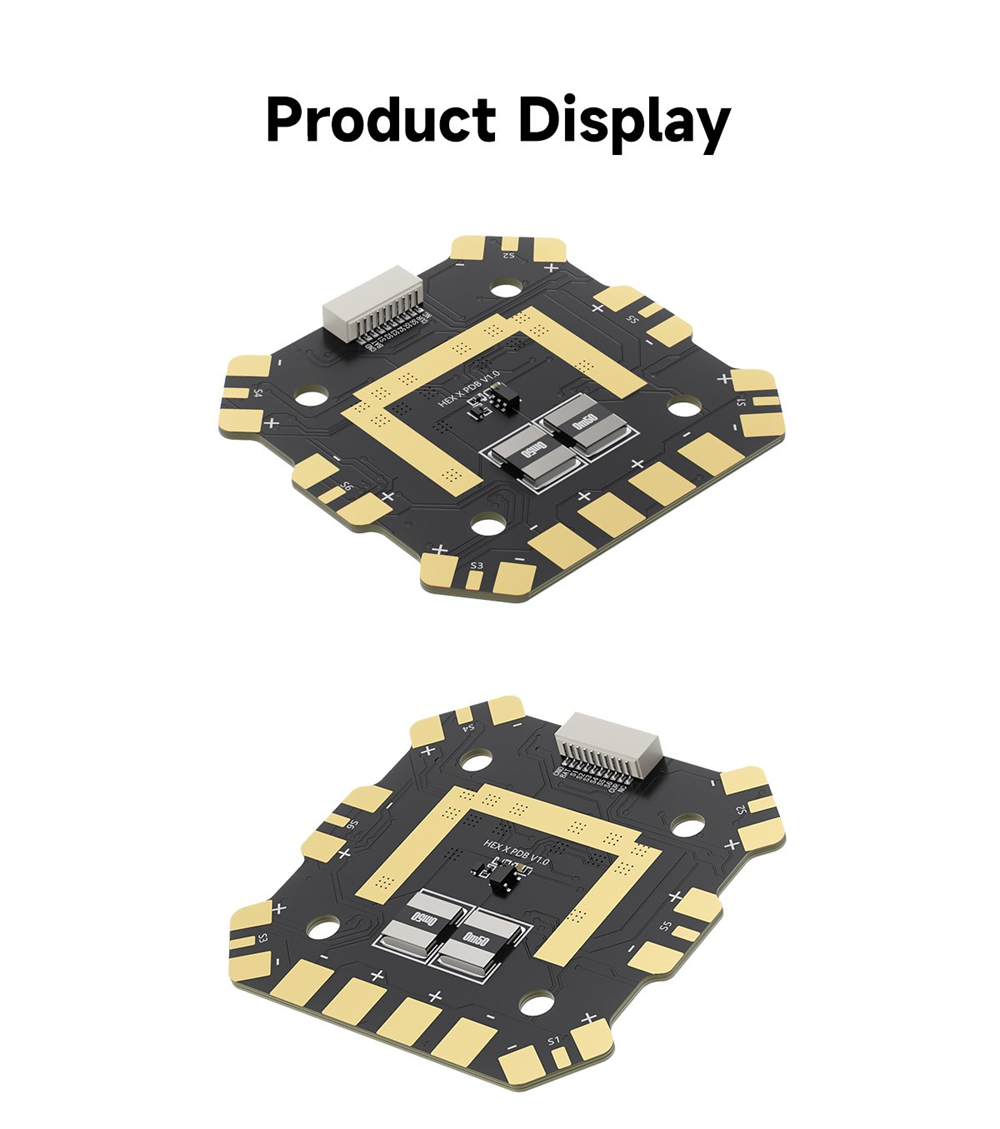

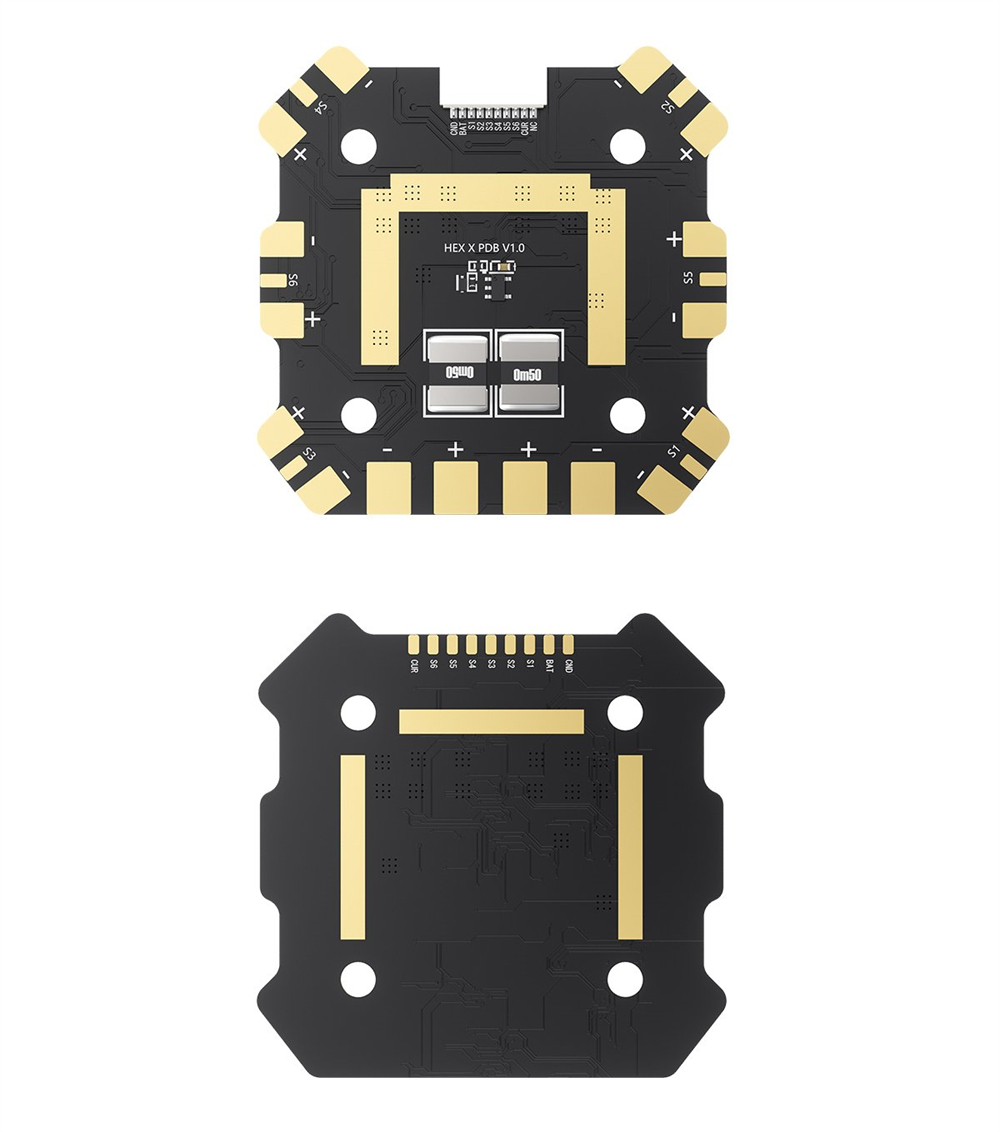

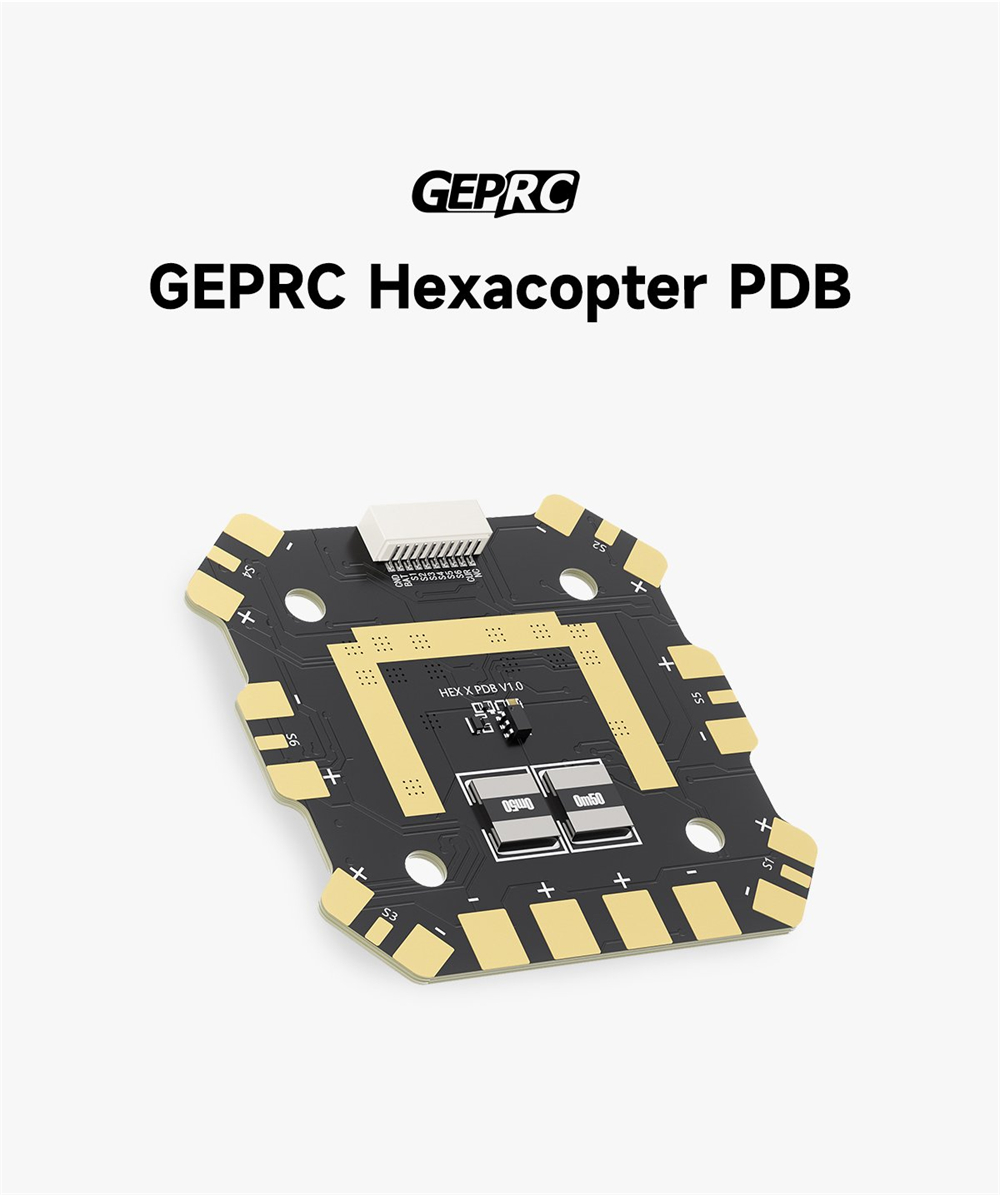

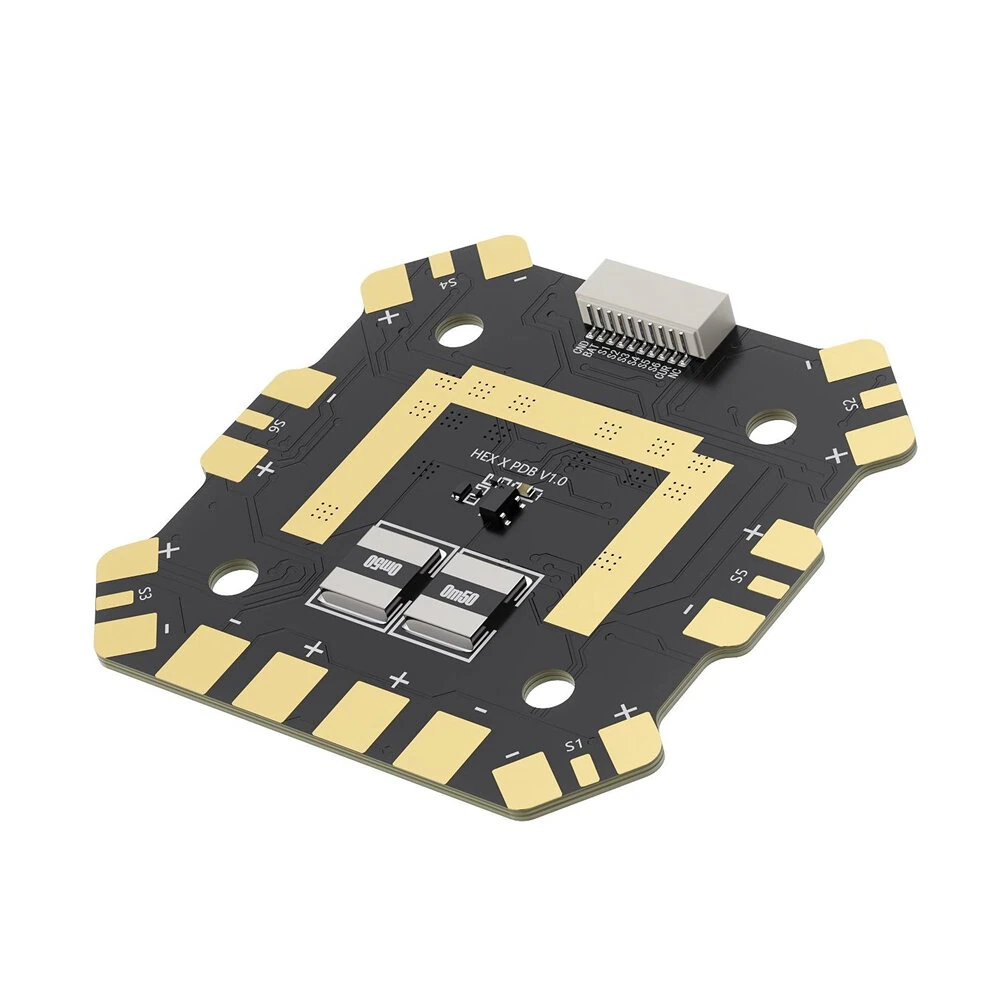

Model: PDB Hexacopter Power Distribution Board
Input Voltage: 36S LiPo
Ammeter: Not Supported
Continuous Current: 60A
Burst Current: 65A(5 seconds
Protocols Supported: DShot 150/300/600
Dimension: 53x53mm
Mounting Hole: 30x30mm
Weight: 11.8g

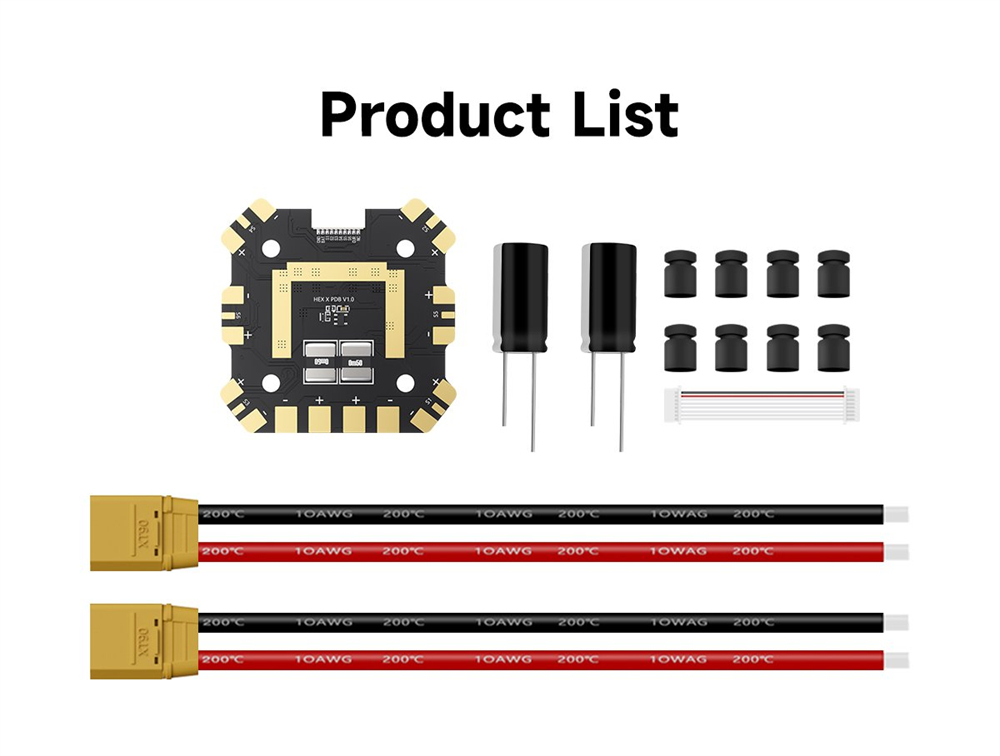

Package included:
1 Hexacopter Power Distribution Board
2 50V 2200F Capacitors
2 XT90 + Connectors with Protective Housing + 10AWG Silicone Wire
1 SH1.0-10P to 8P EP-106 FC to PDB Connection Cable
8 M3*8 Damping Balls
