Description
Specification:
Brand: JHEMCU

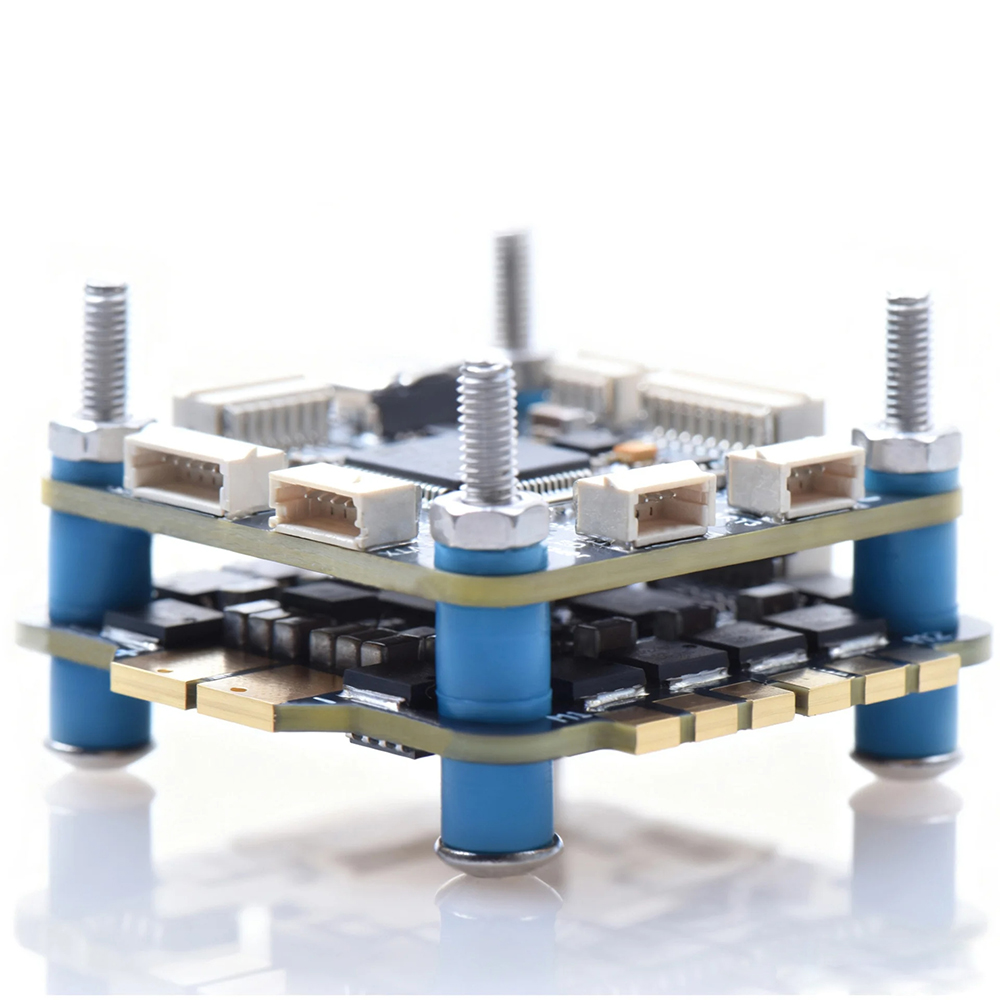

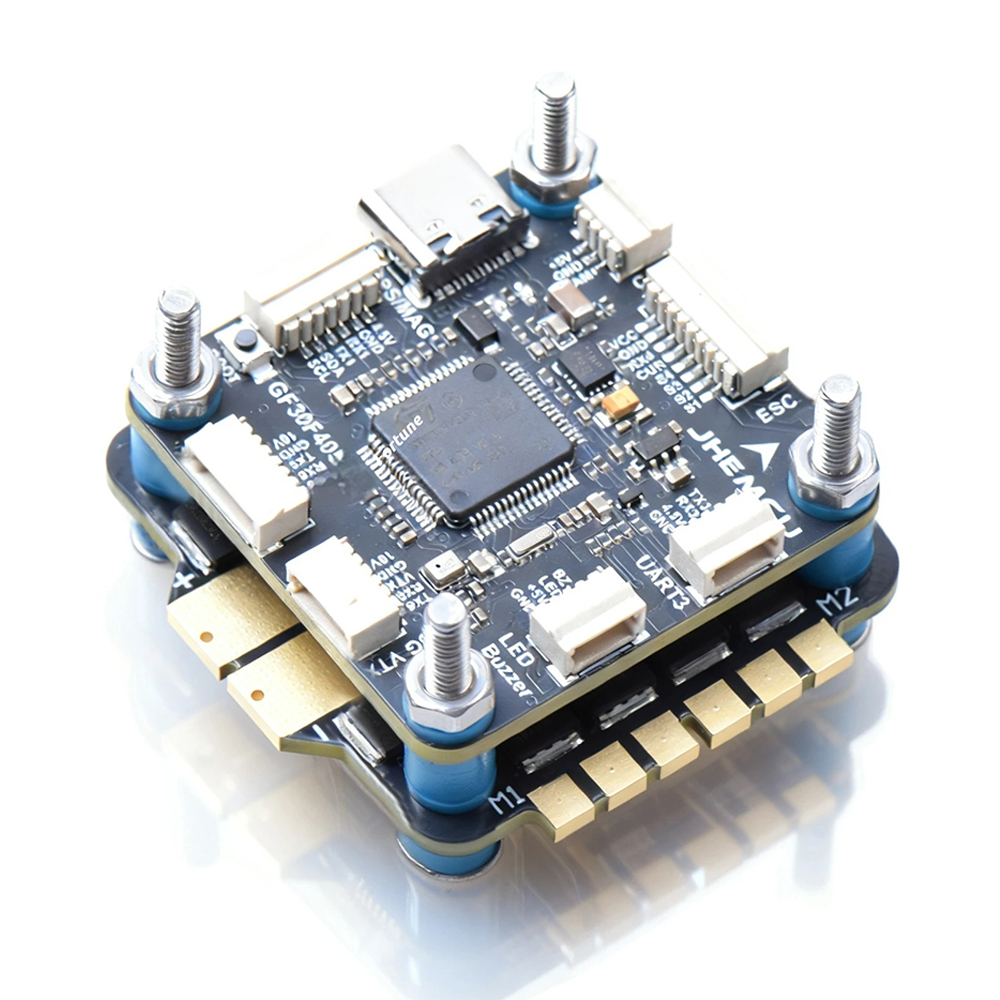

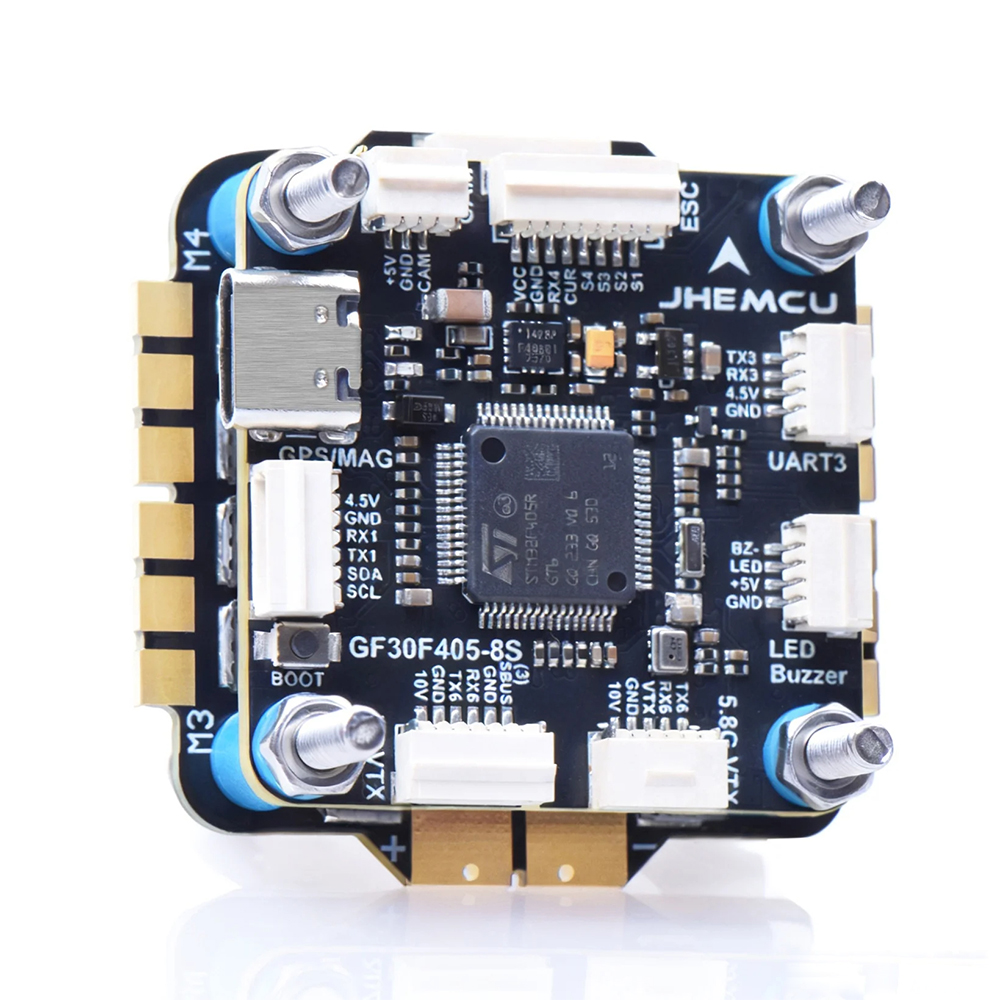

Model: F405 Flight Controller 8S AM32 80A 32-bit ESC Stack
|
Model |
Parameter |
|
F405 Flight Controller |

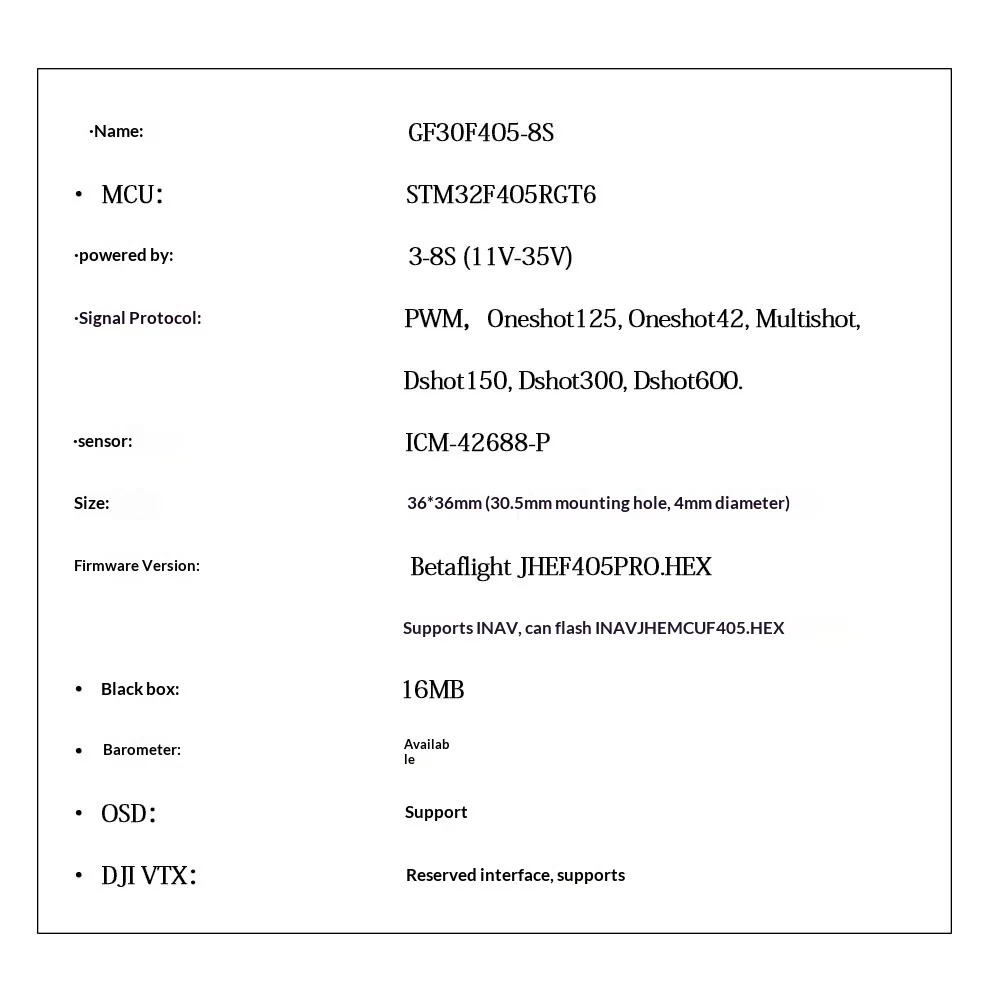

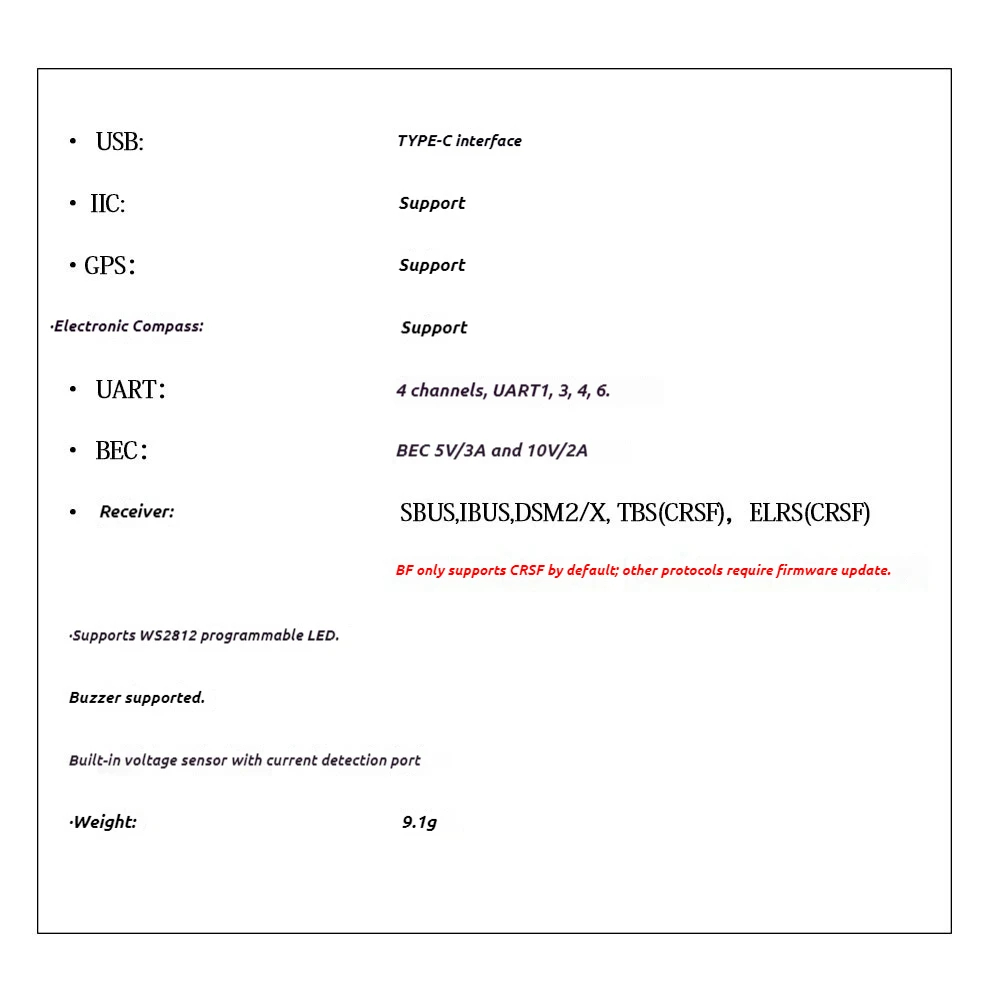

MCU: STM32F405RGT6 Power Supply: 3-8S (11V-35V) Signal Protocols: PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600 Sensor: ICM-42688-P Size: 3636mm (30.5mm mounting hole, diameter 4mm) Firmware Version: Betaflight JHEF405PRO.HEX Supports INAV, can flash JHEMCUF405.HEX Black Box: 16MB Barometer: Yes OSD: Supported DJI VTX: Reserved port, supported USB: TYPE-C Port IIC: Supported GPS: Supported Electronic Compass: Supported UART: Four (UART1, 3, 4, 6) BEC: BEC 5V/3A and 10V/2A Receiver: SBUS, IBUS, DSM2/X, TBS (CRSF), ELRS (CRSF) BF firmware only supports CRSF. Other protocols require firmware updates. Supports WS2812 programmable LED Supports Buzzer Built-in Voltage Sensor: Current testing port included Weight: 9.1g |
|
80A 32-bit ESC |

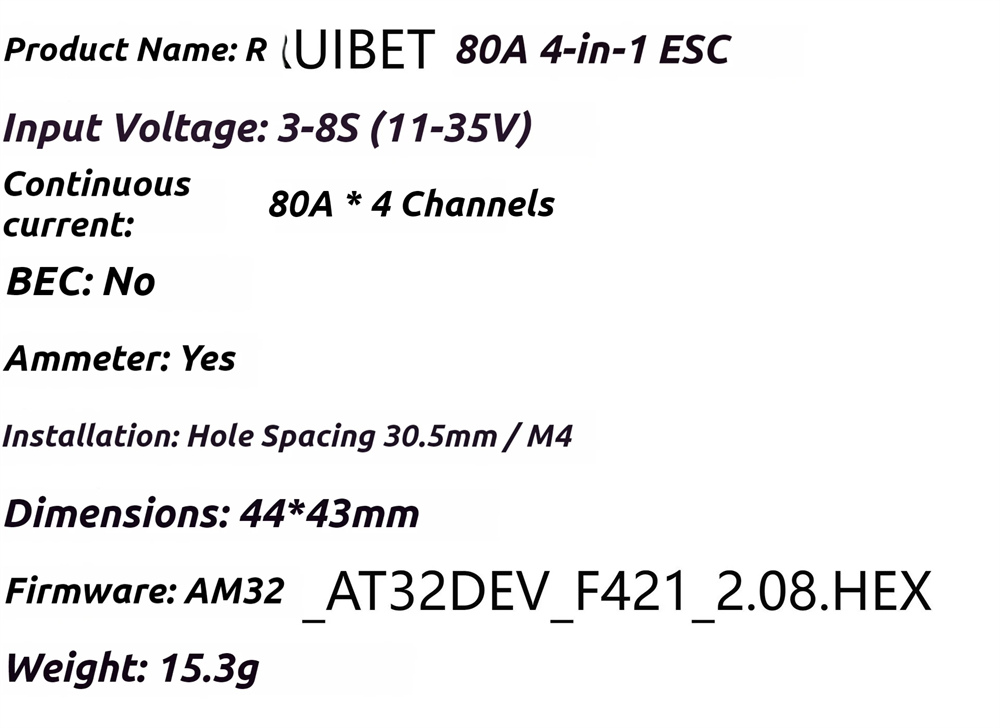

Input Voltage: 3-8S (11-35V) Continuous Current: 80A 4 channels BEC: None Amperemeter: Supported Mounting: Hole spacing 30.5MM / M4 Dimensions: 4443MM Firmware: AM32_AT32DEV_F421_2.08.HEX ESC Weight: 15.3g |

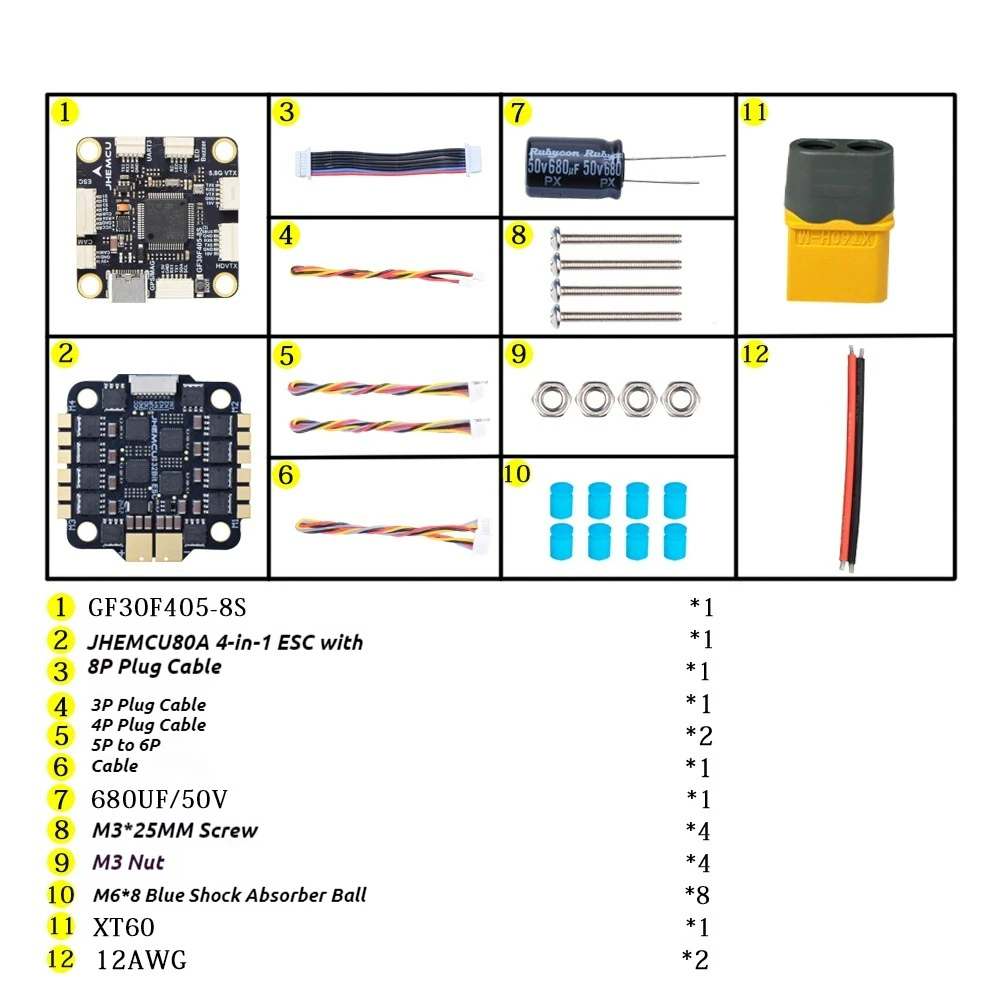

Package included:
1 x F405 Flight Controller
1 x 80A 32-bit ESC
