Description

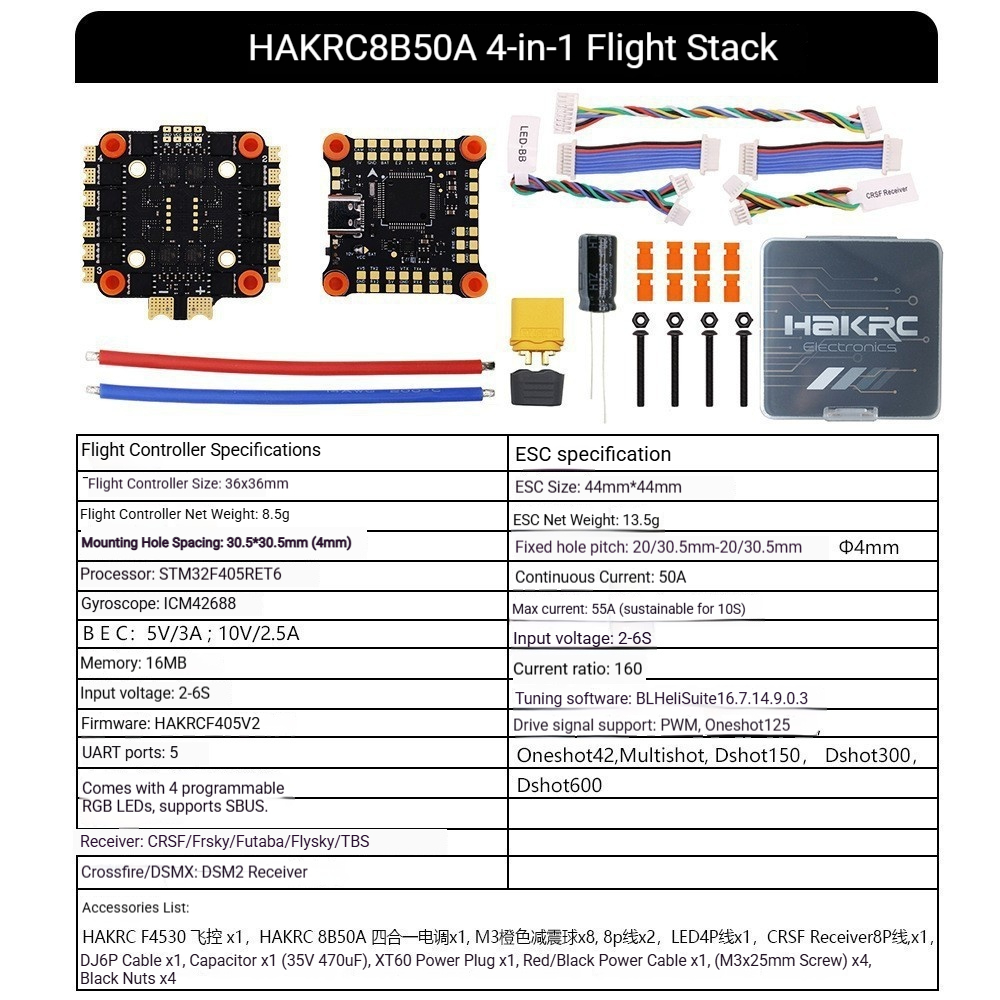

Specification:
Brand: HAKRC
Model: F4530 Flight Controller 8Bit 50A 4in1 ESC Stack
|
Model |
Parameter |
|
F4530 Flight Controller |

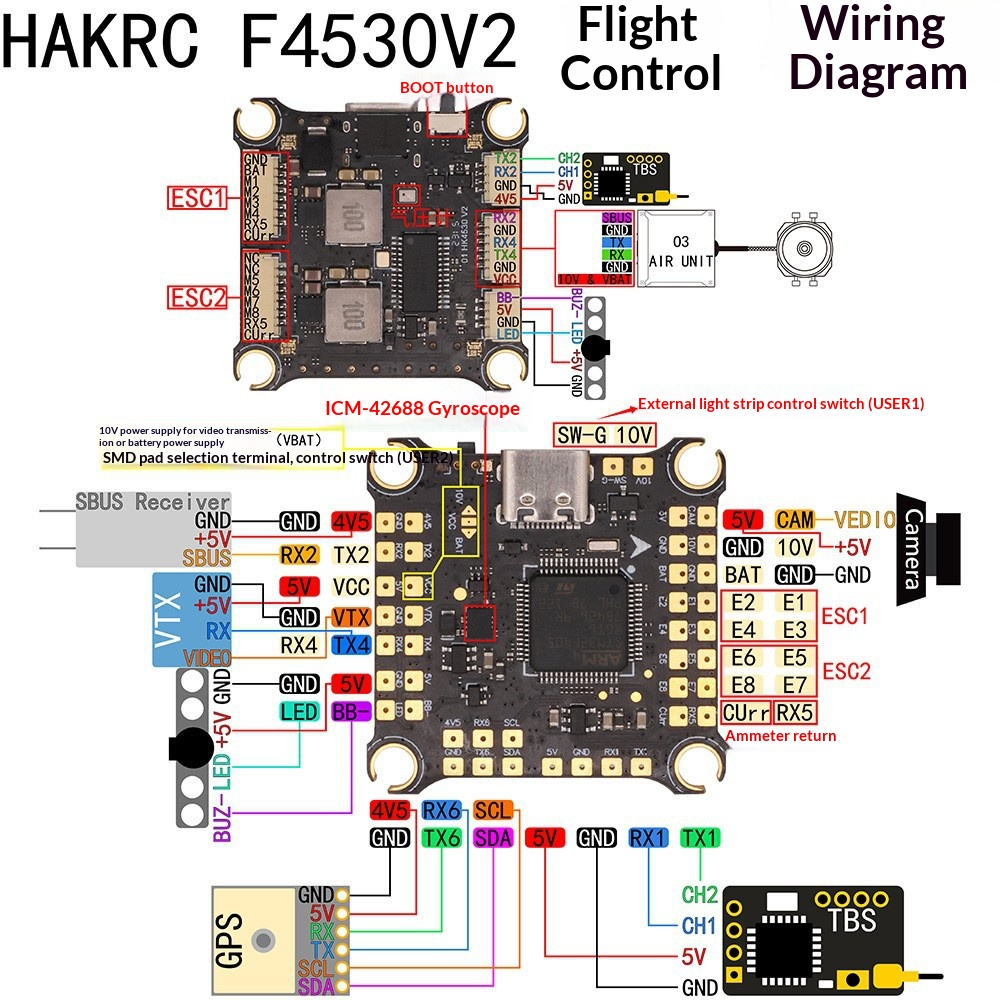

Flight Controller Size: 36x36mm Weight of Flight Controller: 8.5g Mounting Hole: 30.5×30.5mm, 4mm Processor: STM32F405RET6 Gyroscope: ICM42688 BEC: 5V/3A; 10V/2.5A Memory: 16MB Input Voltage: 2-6S Firmware: HAKRCF405V2 UART Ports: 5 Built-in Programmable LED: Supported RX2 Connection: SBUS Receiver Compatibility: CRSF / Frsky / Futab / Flysky / TBS; CRSF / DSMX / DSM2 receivers |
|
8B50A 4-in-1 ESC |
ESC Size: 44x44mm ESC Weight: 13.5g Mounting Hole: 20/30.5mm-20/30.5mm, 4mm Continuous Current: 50A Maximum Current: 55A (10S supported) Input Voltage: 2-6S PWM Frequency: 160 Firmware Software: BLHeliSuite 16.7.14.9.0.3 Signal Support: PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600 |
Feature:
1. The PCB uses a high-end 6-layer 1oZ thickened copper foil and employs advanced resin-filled via PCB manufacturing technology, resulting in strong anti-interference capabilities.
2. It uses an industrial-grade LDO, resistant to high temperatures.
3. It uses a through-hole connector for easy installation and eliminates the need for soldering.
4. It features 4 built-in programmable RGB LEDs, allowing for freely switchable LED lighting effects.
5. It has a reserved 10V power supply for external LED strips, and the remote control channel can be customized for on/off control of the LED strips.
6. The image transmission power supply can be switched on or off via a switch channel set on the ground station, facilitating ground parameter adjustment.
7. It uses high-quality Japanese Murata capacitors, providing strong filtering performance.
8. It has a built-in 6-pin antenna connector.
9. It has 8-channel motor control signal output.
10. RX2 connects to SBUS.

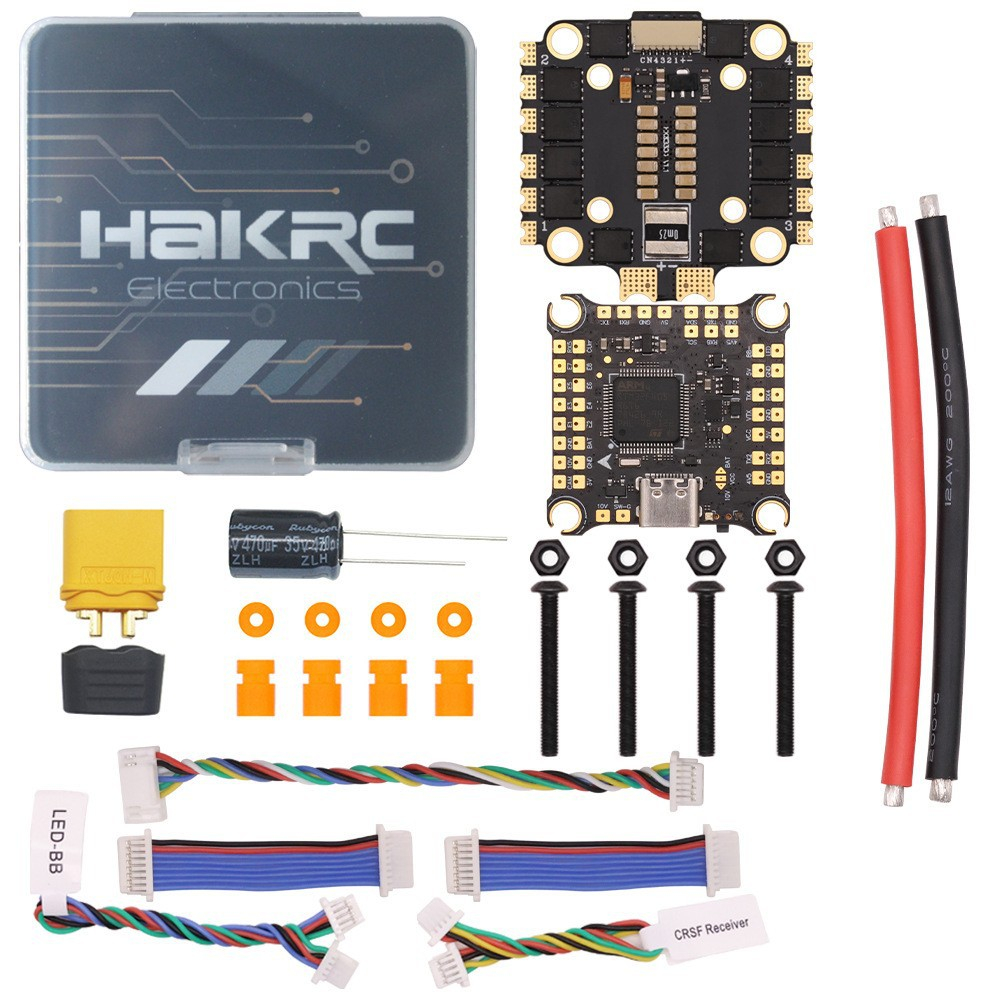

Package Included:
1 x HAKRC F4530 Flight Controller
1 x HAKRC 8B50A 4-in-1 ESC
8 x M3 Orange Vibration Damper
2 x 8-pin Cable
1 x LED 4-pin Cable
1 x CRSF Receiver 8-pin Cable
1 x DJI 6-pin Cable
1 x Capacitor (35V 470uf)
1 x XT60 Power Connector
1 x Red and Black Power Cable
4 x (M3 x 25mm) Screws
4 x Black Nuts
