Note: 20*20mm SEQURE Blueson A1 Clink Here.
Product Description:
– High-quality ultra-high copper thickness PCB ensures the current carrying capacity while improving heat dissipation. Equipped with top-level MOSFET, it enhances flight performance and makes you enjoy the fun of flying in the air.
– Equipped with a high-speed 32-bit processor, it supports full-segment dynamic PWM variable refresh rate of 8KHz-128KHz, with more precise speed response and smoother throttle control.
– Supports 6S/8S wide range voltage input, allowing your aircraft to adapt to power batteries of different specifications, improving the versatility of the device.
– 30.5mm installation hole spacing is more suitable for large-sized load-type flight vehicles and is easy to install.
– The angled extended large-area pad design not only makes the motor circuit layout more refined, but also effectively simplifies the welding process.
Specification:
Brand: SEQURE

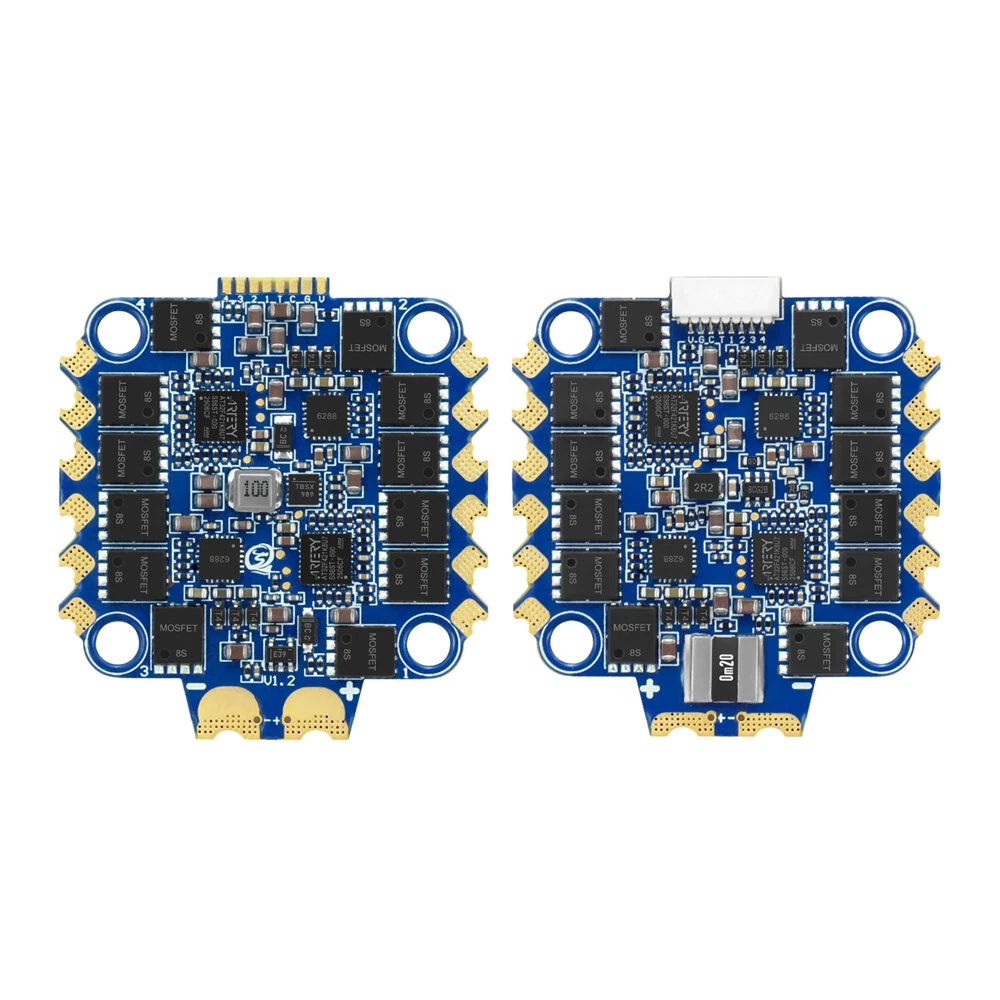

Model: Blueson A2
Item Name: 6S 65A ESC / 8S 70A ESC
|
Model |
Blueson A2 |
|
Processor |
AT32F421 |
|
Firmware Version |
AM32 / BLHeli_32 (Optional) |
|
PWM Frequency |
8KHz-128KHz |
|
Working Voltage |
2-6S / 2-8S Lipo / LiHV |
|
Continuous Current |
6S 65A / 8S 70A |
|
Peak Current |
6S 120A / 8S 150A |
|
Support Protocol |
Dshot600/300/150,Oneshot,Multishot,PWM |
|
Telemetry Return |
YES |
|
Galvanometer |
YES |
|
BEC |
NO |
|
Mounting Hole Spacing |
30.5*30.5mm, 4mm/M3 |
|
Product Size |
45.5*42.5*6mm(L*W*H) |
|
Product Weight |
17g |
Package Included:
1x SEQURE Blueson A2 4IN1 ESC
1x 30AWG 40mm reverse double plug SH1.0-8P cable
1x 30AWG 60mm single plug SH1.0-8P cable
2x 12AWG 100mm power cable (black/red)
1x XT60H-M black male connector
1x 35V 680UF solid capacitor
4x M3*8mm shock absorbing washer (black)
