Description
Features:

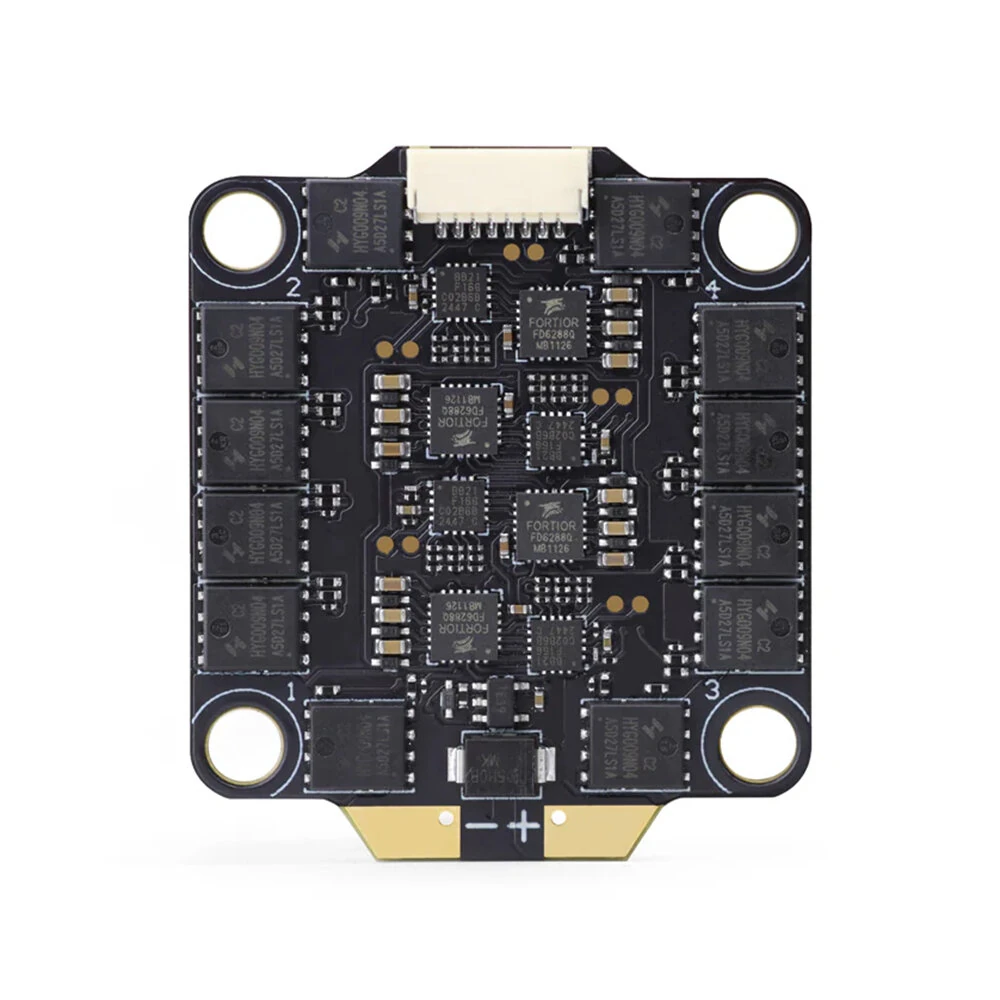

1. BL-S 60A 4-in-1 ESC, stable output, powerful flight.
2. High-quality immersion gold design for high temperature and current resistance, large ESC pads, and direct plug-in for the flight controller, eliminating soldering hassles.
3. Supports DShot600/300/150 digital protocols.
Specification:
Brand: HGLRC
Product Name: 60A 6S V1 ESC
Input Voltage: 7.4V-25.2V (2S-6S)
Operating Current: Rated current per channel 60A, Four-way maximum current 190A
ESC Firmware: Q-H-40
Dimensions: 37mm*43mm
Mounting Hole: 30.5*30.5mm, M3
Weight: 14g
Package included:
1x HGLRC 60A 6S V1 ESC
1x 30AWG 25mm Double-ended SH1.0-8P ribbon cable
1x 12AWG 100mm power cable (black/red)
1x XT60H-M black male connector
1x 50v 470UF solid-state capacitor
1x HGLRC 2023 sticker
4x 3*8 shock-absorbing columns
1x QR code card
