Description
Note: Pre-installed with BL32 test firmware, extensively tested for safety and reliability(AM32 also supported; customer flashing required.)
Feature:
1. Use mainstream STM32F722 chip
2. Equipped with the latest 42688-P gyroscope
3. 512M black box storage
4. Support Bluetooth parameter tuning
5. Integrated LC filter
6. Upgrade type-C USB interface
7. With GEP-BL32 50A 96K 4IN1 32Bit ESC, silky flight
8. Directly plugs into the DJI Air Unit
9. Simple and effective installation with shock-absorbing mounts for stable gyroscope performance
10. Integrated Barometer
11. 9V@2.5A + 5V@3A dual independent BEC
Specification:
Brand: GEPRC

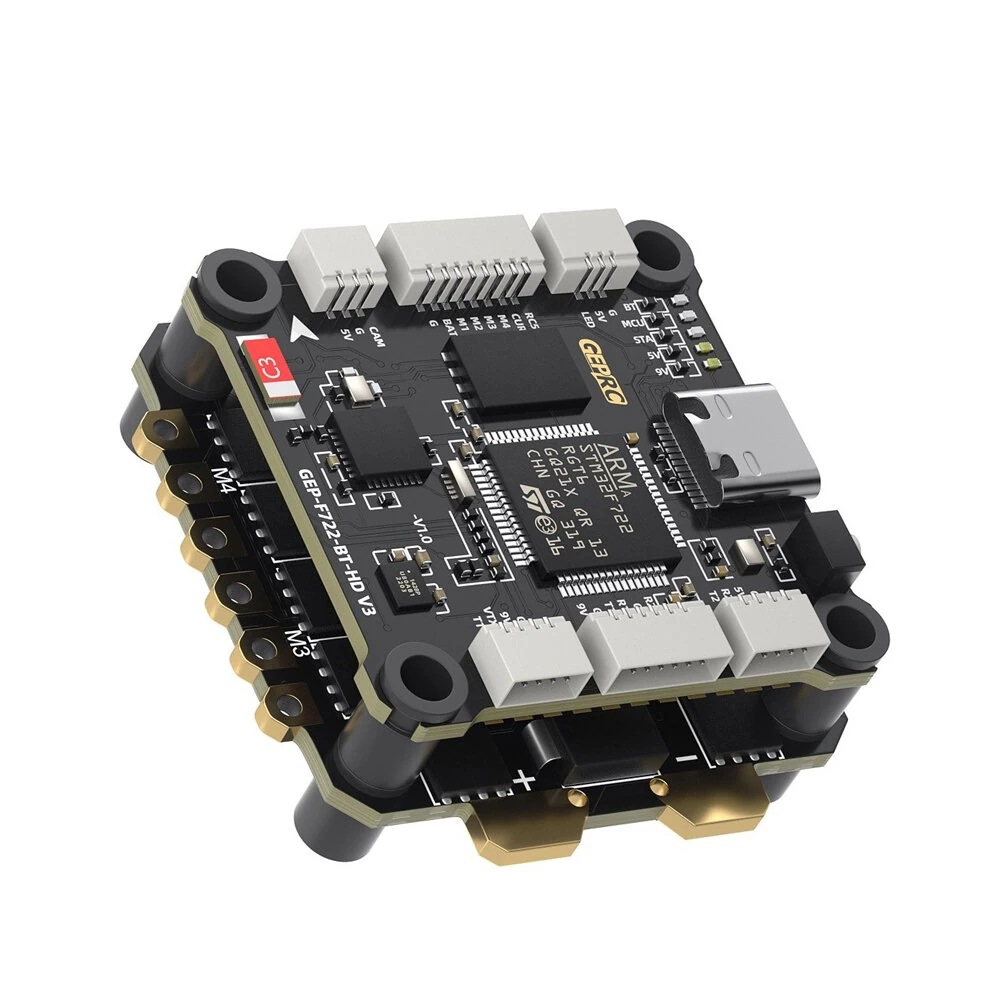

Model: TAKER F722 BT 32Bit 50A STACK
| Model |
Specification |
| F722 BT HD V3 Flight Controller |
MCU: STM32F722 IMUICM42688-P(SPI) Air Unit Connection: Directly plugs into the DJI Air Unit Black Box: 512M onboard Bluetooth: Supported Barometer: Supported USB Interface: Type-C OSD: BetaFlight OSD w/ AT7456E chip BEC: 5V@3A, 9V@2.5A dual BEC Firmware Target: GEPRCF722_BT_HD_V3 Size: 36.936.9mm, hole: 30.530.5mm, 4mm hole becomes 3mm after using a silicone shock-absorbing ring Input Voltage: 3-6S LiPo UART: 5 groups (UART4 fixed for Bluetooth) Power Filter: Integrated LC filter Weight: 8.2g |
| 50A 4IN1 ESC |
Input Voltage: 3-6S Lipo Continue Current50A Burst Current: 55A (5 second) GalvanometerSupport Telemetry: Support Support Protocol: Dshot 150/300/600 Size42.542.1mmhole30.530.5mm Weight14g Target: ST_G0_05 31.92 |
Package Included:
1 x FC board
1 x ESC board
1 x Capacitor
1 x DJI O3 3-in-1 connection cable
1 x FC adapter cable
1 x sh1.0 4pin silicone cable
1 x Camera connection cable
1 x VTX connection cable
1 x XT90 power cable
4 x M3*30 screws
4 x M3*25 screws
8 x Nylon nuts
12 x Silicone anti-shake pads
