FPV Gear 2k11

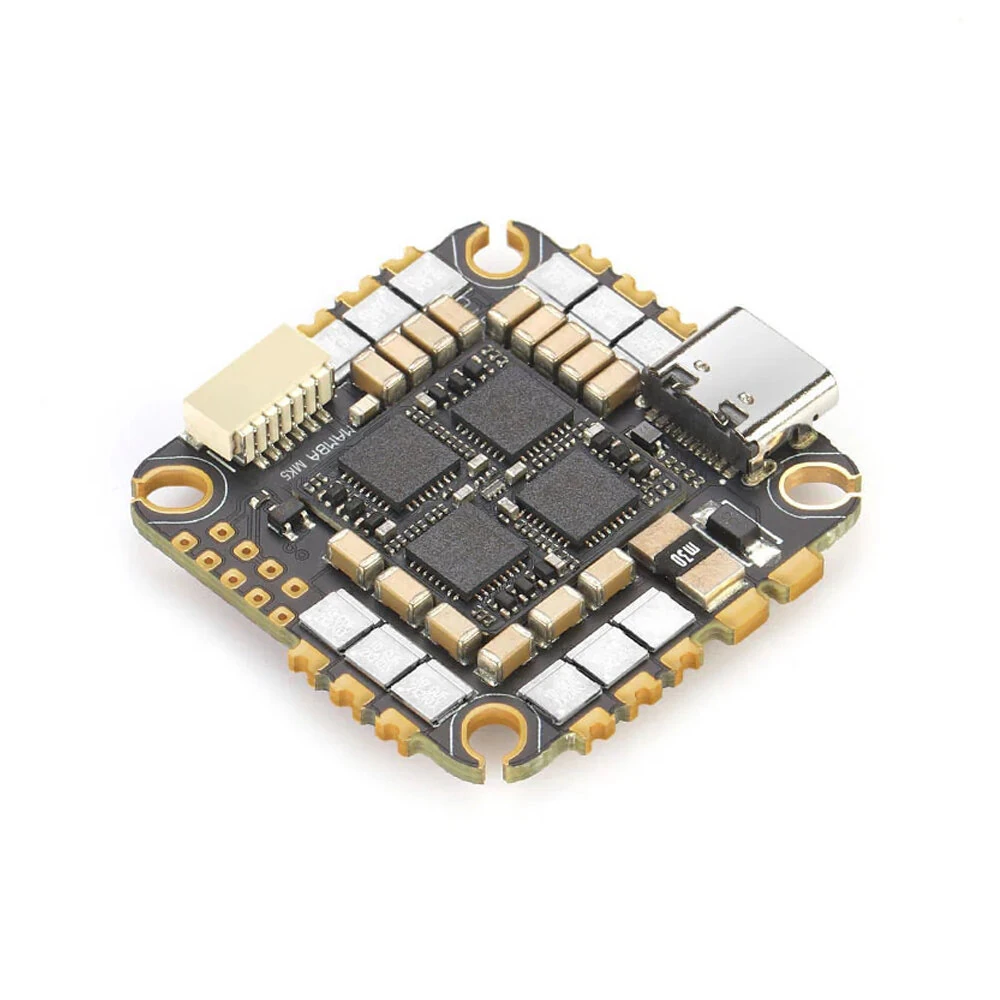

25.525.5mm Mamba MK5 G4 AIO Alpha Dshot2400 Flight Controller with 40A 4-6S ESC for RC FPV Racing Drone
25.525.5mm Mamba MK5 G4 AIO Alpha Dshot2400 Flight Controller with 40A 4-6S ESC for RC FPV Racing Drone - Image 2

25.525.5mm Mamba MK5 G4 AIO Alpha Dshot2400 Flight Controller with 40A 4-6S ESC for RC FPV Racing Drone

R1 271.57
SKU: 2037822
Category:

Description

Please noticeThis AIO only Support Alpha not support BetaFlight.


Specification
Brand: MAMBA

Item Name: MK5 G4 AIO

FC

Target: Alpha
MCU: 170MHz STM32G473
GYRO: IIM-42652
OSD: Yes
Uarts: 4 Set
Motor Signal:4 Set
ESC Soft: Dshot300/600/1200/2400
Power Led: Yes
LED Controller: Yes
AIR UNIT Port: Yes
Buzz: Yes
Input: 4~6S Lipo (14.8~25.2V)
BEC Protection: Yes
Receiver Protection: Yes
TVS Protection: Yes
BEC: 10V 2A& 5V 2A
Mounting size: 25.525.5mm/M2
Overall dimensions: 3534.56.5mm
ESC Input: 4~6S Lipo (14.8~25.2V)f
Continue Current: 40A4
Burst current: 45A (10S)
TargetBLHeli_32 MAMBA F40_128K
SOFT: Dshot300/600/1200/2400
PWM:24~128K

Supply :
High Frequency 470uF/35V 1
AIR UNIT sh1.0 1
16AWG 60mm 2
AMASS Original XT60

Package Included:
1 x MAMBA MK5 G4 AIO

Additional information

Weight 0.029 kg
Version

MK5 G4 AIO
