Description
Introduction:

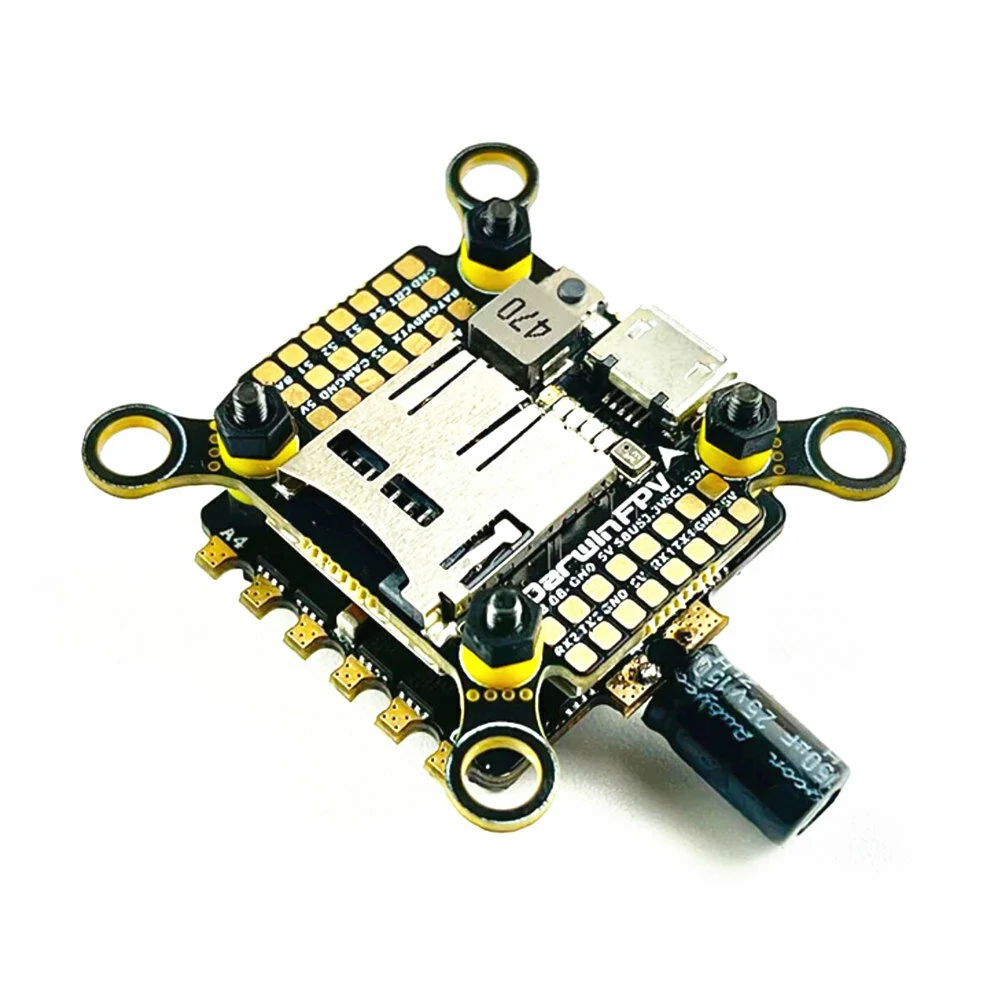

DarwinFPV F411 3-4S 30A Stack is currently the cheapest stack in the FPV world, designed to reduce the budget of entry-level FPV drone as much as possible. At the same time, we have also filled the flight control and ESC with glue, which greatly reduces the risk of damage to components caused by frequent blow-ups by novices.
In a word, if you want to assemble the stack by yourself, DarwinFPV F411 3-4S 30A stack is the most cost-effective one , none of them!
Features:
1) Compared with traditional stacks, we have treated the DarwinFPV 3-6S F411 3-4S 30A stack with glue to protect it, which greatly reduces the risk of damage to the stack due to contact with metal particles, fine sand and gravel, weeds or dewdrops, etc.
2) DarwinFPV 3-6S F411 3-4S 30A stack has built-in barometer and SD card slot, and reserves rich interfaces resource, which meet the needs of lightweight flight.
3)The FC integrates LC filter, which greatly reduces the VTX interference caused by system voltage changes when the drone accelerates and decelerates, and greatly improves the image stability.
Specification:
Brand: DarwinFPV
Model: F411 FC 30A ESC Stack
Item Name: F4 Flight Controller and 30A 4in1 ESC Stack
| F411 Flight Controller |
MCUSTM32F411 – It supports receivers of most protocols on the market, such as PPM, PWM, IBUS, SBUS, SPEKTRUM and CRSF of ELRS. |
| 30A 4in1 ESC | MCUEFM8BB21 Continuous Current30A Peak Current35A 10S BEC outputNon Input voltage3-4S LIPO Throttle SignalDshot600Oneshot125 Current Sensor Non MOS3 x3 TargetG_H_30 PCB Size29mm x 31mm Fixed Hole20mm x 20mm Weight4.9g |
Attention:
Because the black box function of the target firmware ‘DARWINF411’ is currently not compatible with Btaflight 4.3.0 and 4.3.1 (the black box function is expected to be added to the official version 4.3.2) If you need to use the black box urgently, please upgrade to the 4.4.0 development version or downgrade to 4.3.0_RC3 and below firmware version.
Package Included:
1 x F411 Flight Controller
1x 30A 4in1 ESC
1 x 20AW power cable
1 x XT30
1 x cable pack
1 x 1.8cm 6Pin single SH1.0 wire
1 x sticker
