Description
Specification:
Brand: FlyingRC
Model: F420 MK1

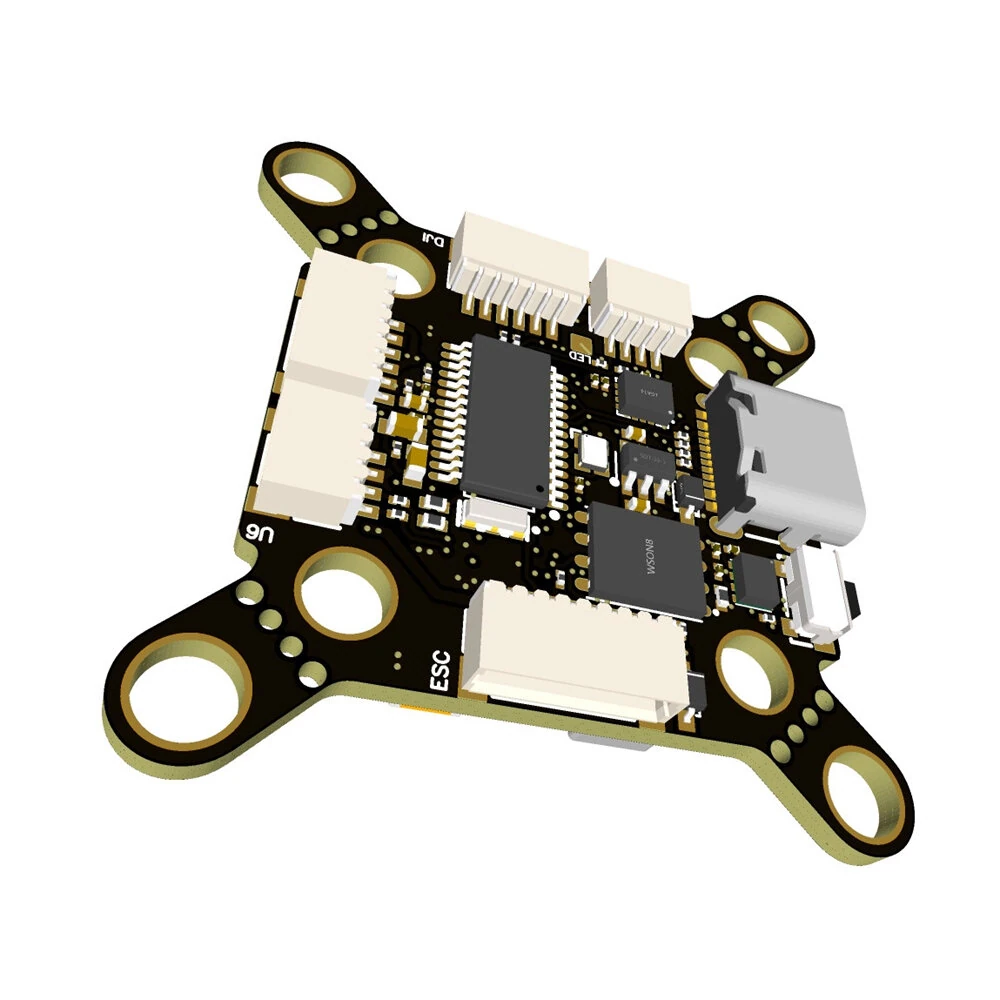

Item Name: F405 2-6S 42688P Flight Controller
|
Item |
Parameter |
|
Basic Parameters |
Model: FlyingRC F420 Dimensions: 36.6×36.6×8.0mm Cut Size: 28.1×31.1×8.0mm Hole Distance: 30.5 / 20mm Weight: 6.3g |
|
Main Controller |
Main Control Chip: STM32F405RGT6 Main Frequency: 168MHz Flash: 1MB RAM: 192KB |
|
Ports |
Ports: 6 Groups UART: UART3 Output Only RX PWM: 5 (Includes 1 LED) I2C: 1 Electric Current ADC Sampling: Supported SWD Debugging: Not Supported Frequency Port: Not Supported LED Strip Port: Supports WS2812, Requires Soldering USB Type-C: Board Direct Plug Black Box Storage: NOR Flash, 16MB SBUS: Not Supported |
|
Sensors |
IMU (Gyroscope And Accelerometer): Invense3 ICM-42688-P Barometer: DPS310/DPS368 Magnetometer: Not Embedded Analog OSD: AT7465E |
|
Power Supply Output |
BEC Chipset Model: MP9943+MP9943 Board Buck Module BEC-Device: 5V2A Board Buck Module BEC-Diagrams: 9V2A |
|
Firmware Support |
Betaflight: Supported (Factory Default) INAV: Supported Ardupilot: Supported PX4: Not Supported |
|
Working Environment |
VBAT Power Supply Range: 7-28V DC IN 2-6S LiPo Power Input: Same As VBAT Power Supply Working Temperature Range: -10 to 100C Storage Temperature Range: 0 to 40C |
Features:
– Equipped with STM32F405RGT6 MCU, supporting AP, BF, and INAV firmware; pre-flashed with BF firmware at factory.
– 3rd-gen ICM-42688-P gyroscope, featuring higher precision and stability, optimized specifically for UAVs.
– With High-precision barometer (DPS310 or DPS368)
– Compatible with both 30.5mm M4 standard holes (aperture becomes M3 with damping posts) and 20mm M4 holes (aperture supports M2/M3 with damping posts), suitable for 2-12 inch FPV drones with excellent frame compatibility.
– 4+1 PWM outputs (supports 4-in-1 ESCs), 6 UARTs (only RX of UART3 exposed), and 1 set of I2C, providing rich interfaces.
– Full SH1.0 socket design: ESCs, receivers, GPS, analog VTX, analog cameras, HD VTX, and LED strips all connect via sockets, eliminating troubles of difficult soldering and easy bridging on small pads.
– Onboard 9V BEC for VTX and camera, switchable via PINIO1 (User1 in BF firmware), preventing VTX overheating and burnout during ground debugging.
– Onboard 16MB Flash ensures sufficient storage for multiple flight data records.
– Features black solder mask, 1OZ copper thickness, 1m immersion gold, resin plugging, and via-in-pad technology. Adopting SMT assembly service ensures superior quality.
Package Included:
1 x FlyingRC F420 Flight Controller
