Description
Feature:
* Minimal integration: The flight control comes with an onboard ELRS 2.4G receiver, and an external receiver is also available. The 4g ultra-featherweight design greatly saves installation space, and the small fuselage can be installed without pressure
* F722 main control: double-precision floating point acceleration, millisecond-level delay processing flight instructions, and 40% increase in response speed (compared to the F4 series); support high-frequency PID refresh, suitable for violent freestyle and extreme speed racing scenes.
* Full scene adaptation: wide voltage power supply 8.4V-25.2V (2-6S), compatible with light 3-inch whoop to 7-inch long-range drone, eliminating the external BEC module, and the wiring is simpler. Support 5VBAT voltage output, compatible with most analog/ HD image transmission.
Specification:
Brand: HGLRC

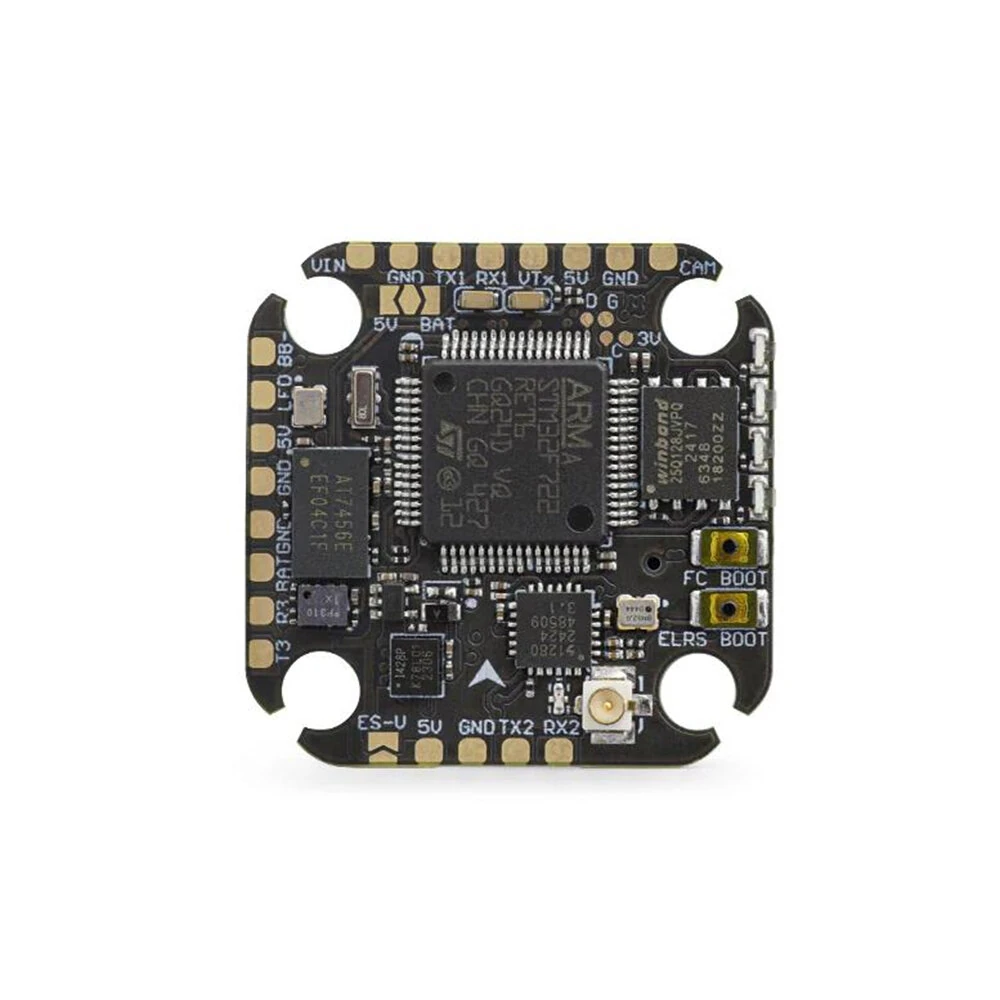

FC Name: SPECTER F722 Lite
Firmware: HGLRCF722MINI_4.5.1
MCU: STM32F722
Gyroscope: ICM42688P
Barometer: dps310
Operating Voltage: 8.4V-25.2V (2-6S Lipo)
BEC: 5V 2A
Black Box: 16MB
Serial UARTS: 5
Built-in Receiver: ELRS 2.4Ghz R2
OSD: Supported
Mounting Holes: 2020mm, M3
Size: 2828mm
Weight: 4g
Package Included:
1x SPECTER F722 Lite Flight Controller
1x 25mm 8Pin Flight Control Cable
1x 90mm 2.4G T-type Antenna
1x 40mm 2.4G T-type Antenna
4x M3*8 Shock Absorber
