Description
Description:

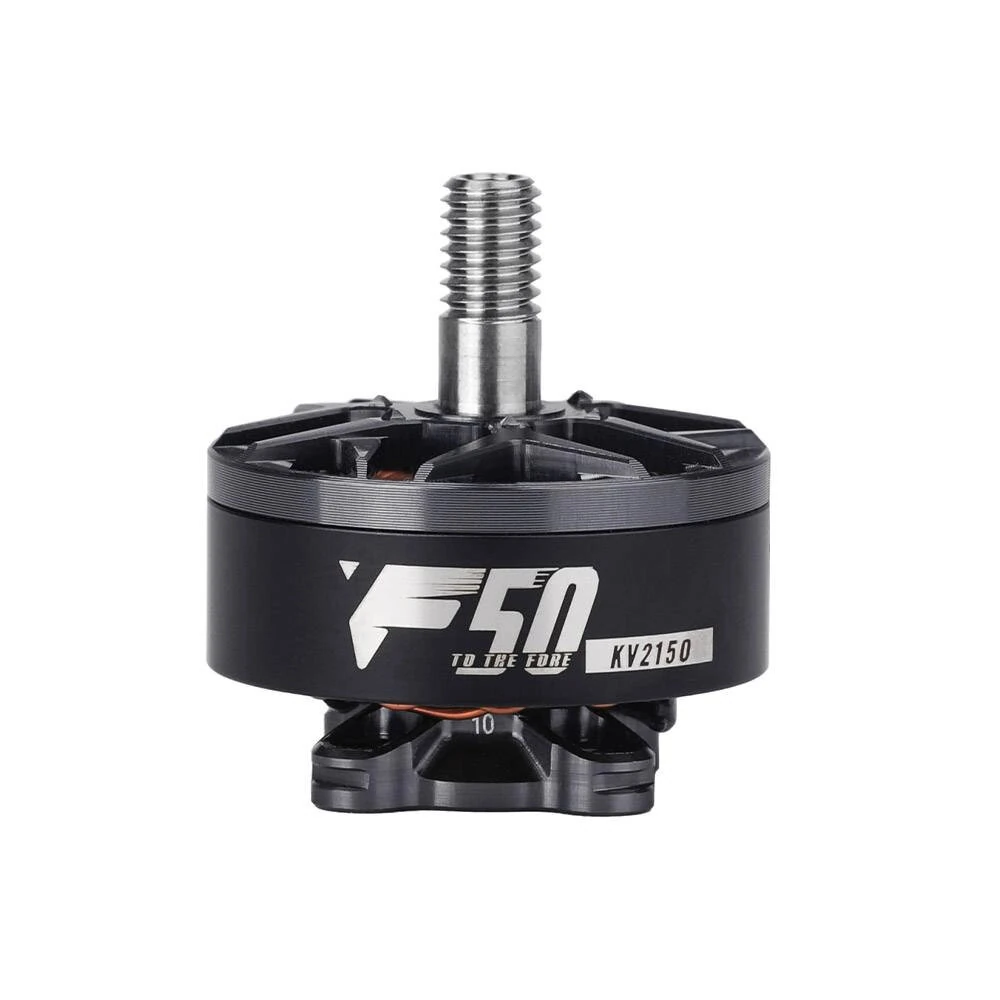

The T-Motor F50 5 Inch racing FPV drone motor features a titanium alloy shaft, a 2207 stator, and EZO bearings, delivering ultra-smoot flight performance. It has been highly praised by FPV racing champios. Positioned between the F40 and F60, the F50 offers a perfect balance of power and efficiency. Its optimized design makes it ideal for both racing and freestyle applications.
Features:
– Balanced Power and Efficiency
– Champio-Endorsed
– Titanium Alloy Shaft
– Optimized Design
– EZO Bearings
– 2207 Stator
Specifications:
Brand: T-Motor
Model: F50 2207
KV: 2150KV/2200KV(Optional)
| KV Rating |
2150KV |
2200KV |
| Weight (Excluding Cable): |
28.56g |
28.36g |
| Internal Resistance: |
50m |
47m |
| Rated Voltage (LiPo): |
24V |
24V |
| Idle Current (10V): |
1.6A |
1.6A |
| Peak Current: |
54.8A |
56.63A |
| Max Power: |
1273W |
1315W |
| Max Thrust: |
2136g |
2134g |
| Standards Compliance: |
300V Withstand Voltage Test |
|
| Bearings: |
Imported 684ZZ/MR84ZZ Bearings |
|
| Prop Adapter Shaft Thread: |
M5 10.75mm |
|
| Waterproof and Dustproof Class: |
Yes |
|
| Motor Dimensions: |
27 29.5mm |
|
| Magnet Type: |
Plated Arc Magnet |
|
| Lead Wire: |
20AWG 150mm |
|
| Material Finish: |
Black Nickel |
|
| Packing Size: |
68 35.0mm |
|
| Coil Insulation Test: |
Passed |
|
| Dynamic Balance: |
<3mg |
|
| Configuration: |
12N14P |
|
| Shaft Diameter: |
5mm |
|
| Screw Diameter: |
M3 |
|
| Packing Weight: |
55g |
|
| Type: |
F50 |
|
Package Included:
1x T-Motor F50 2207 Motor (Choose Your KV)
1x Hardware Kit
