Description

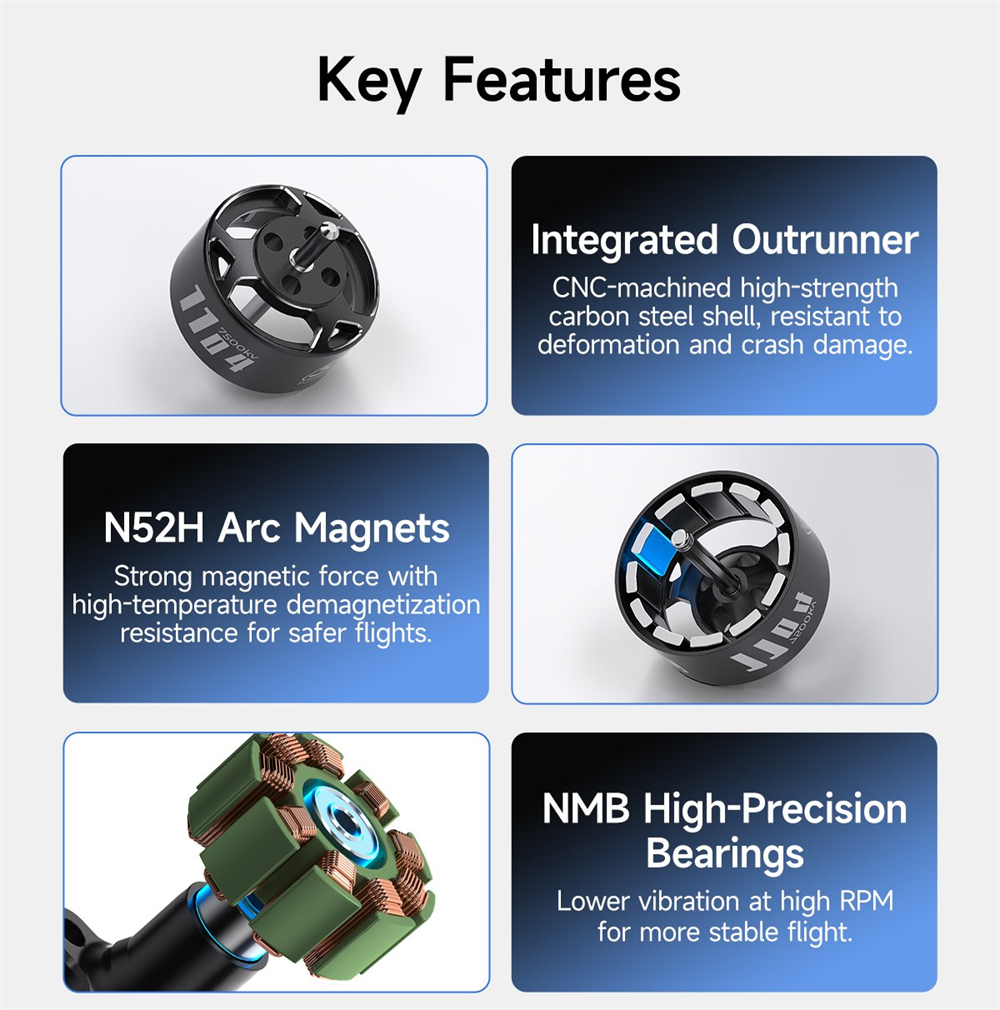

Feature:
– 7500KV ultra-high rotational speed, compatible with 3S batteries , with faster response and better control.

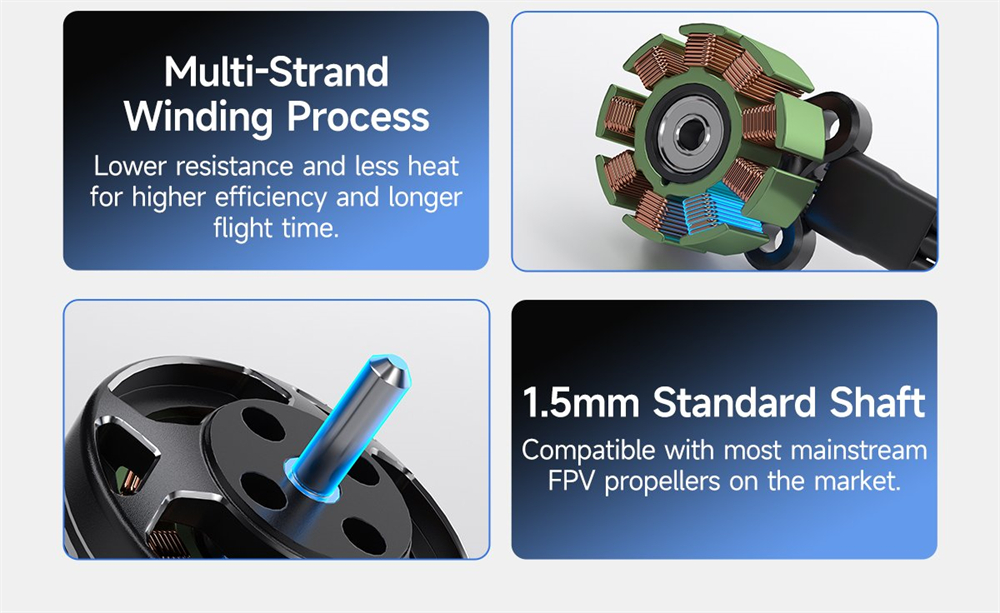

– Multi-strand winding and large hollow design for lower copper loss and faster heat dissipation.
– 9N12P slot-type stator assembly, NSK/NMB high-precision bearings, ensuring stability without vibration even at high rotational speeds.
– The high-precision CNC integrated molding aviation aluminum alloy shell weighs only 5.2g and has stronger impact resistance.

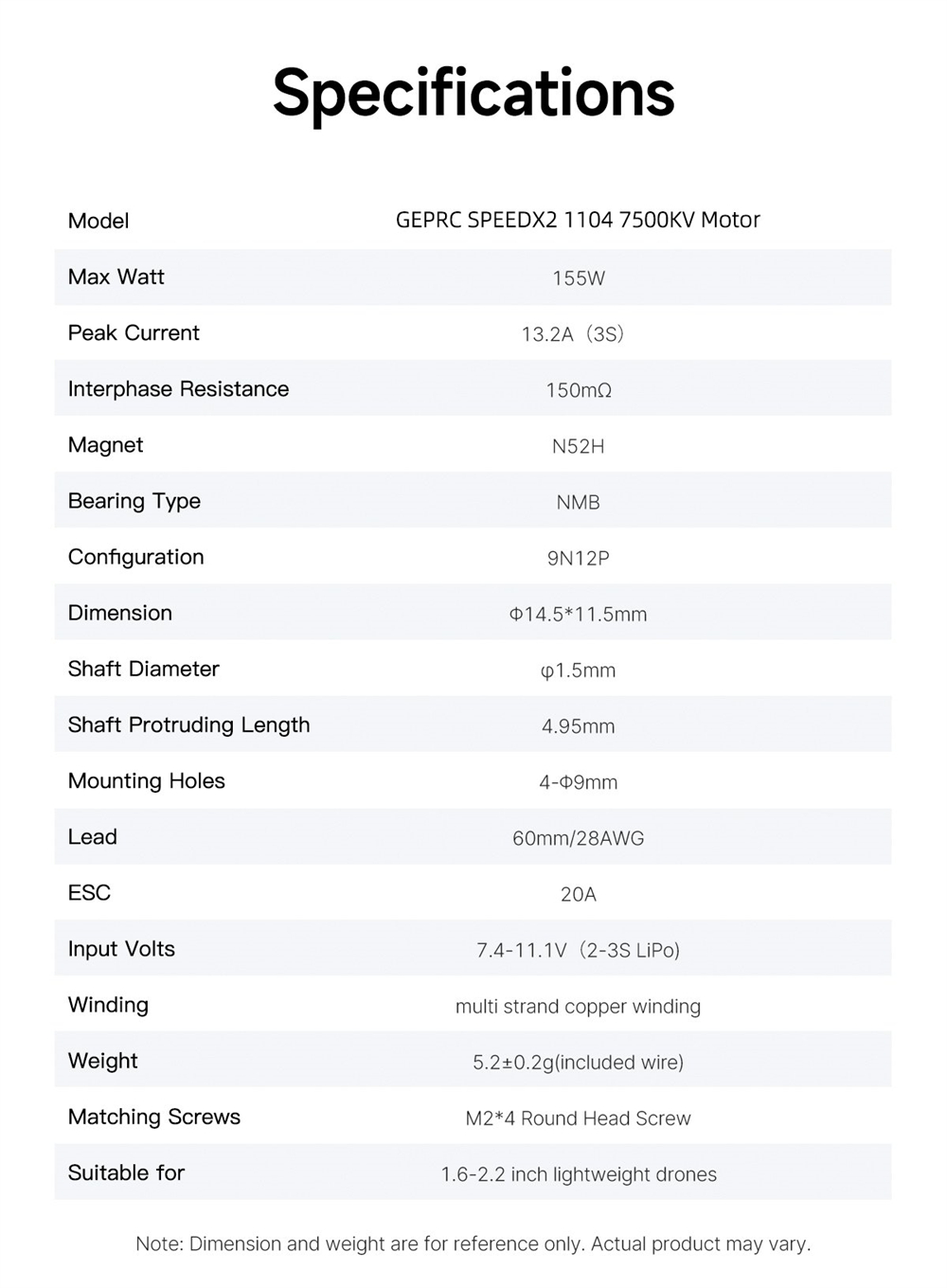

Specification:
Brand: GEPRC

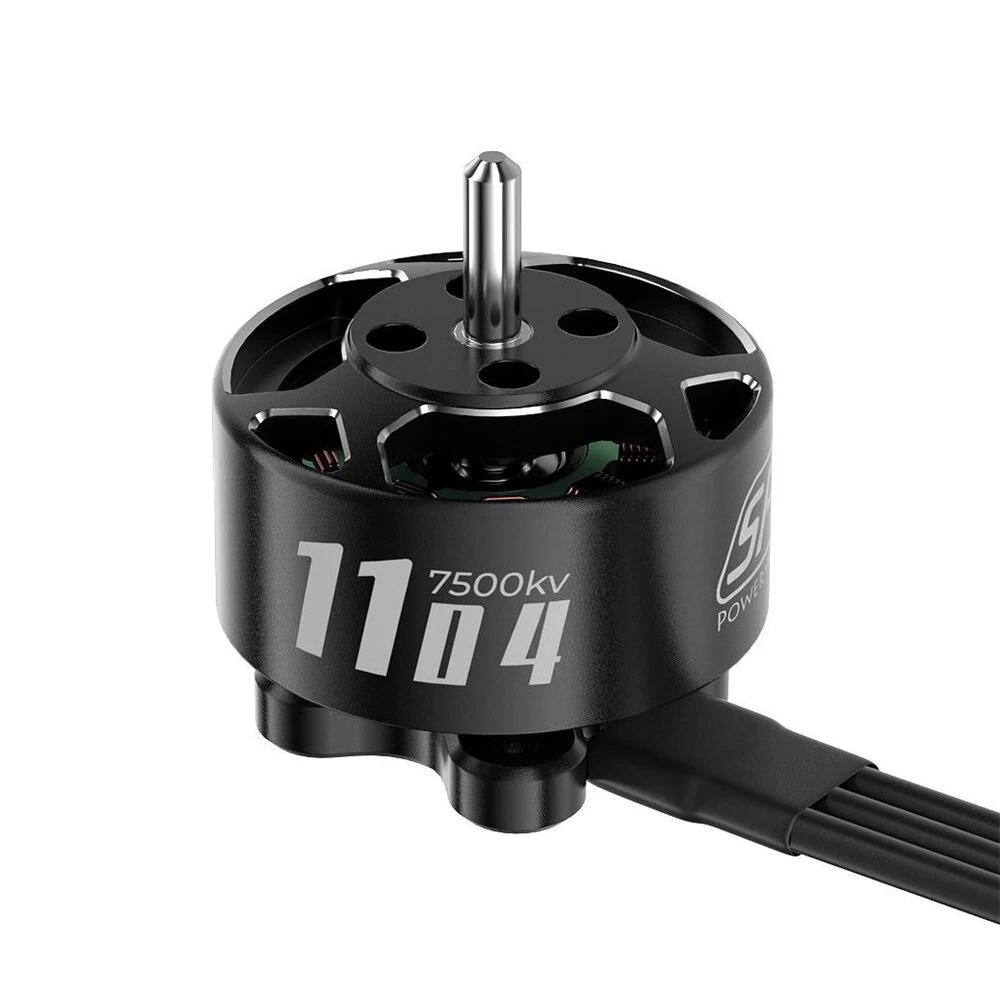

Model: SPEEDX2 1104 7500KV Motor
Max Watt:155W
Peak current: 13.2A3S
Interphase resistance:150m
Magnet: N52H
Bearing type: NSK/NMB
Configuration: 9N12P

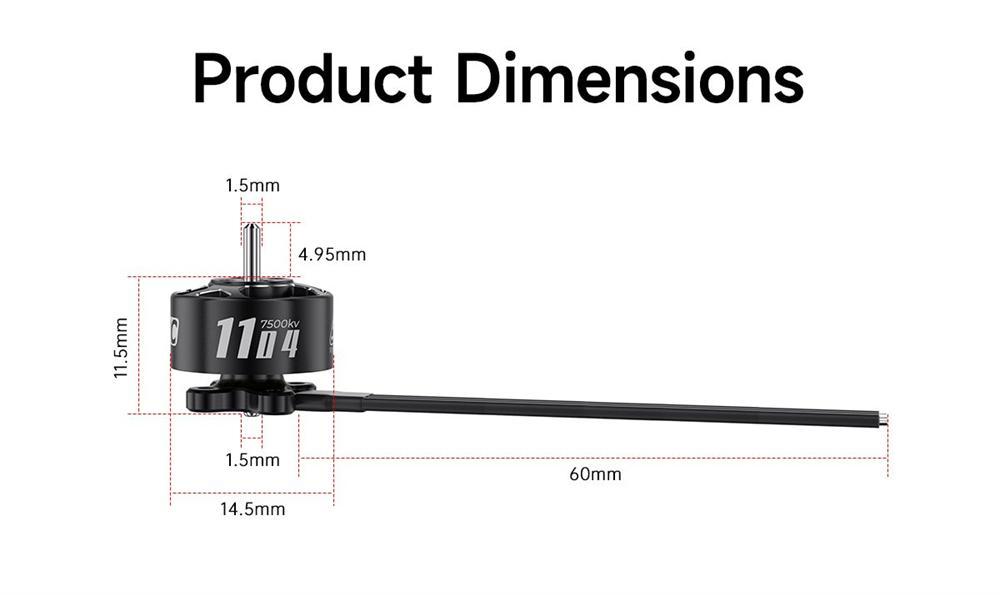

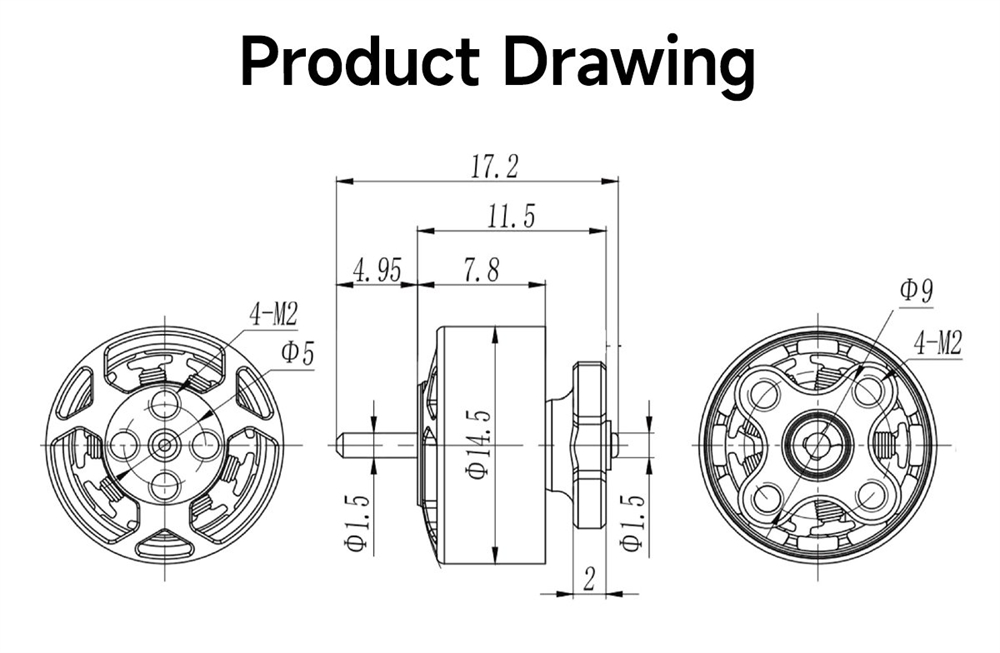

Dimension: 14.5*11.5mm
Shaft Diameter: 1.5mm
Shaft Protruding Length: 4.95mm
Mounting holes: 4-9mm
Lead: 60mm/28AWG
ESC:20A
Input Volts: 7.4-11.1V2-3S LiPo)
Winding: multi strand copper winding

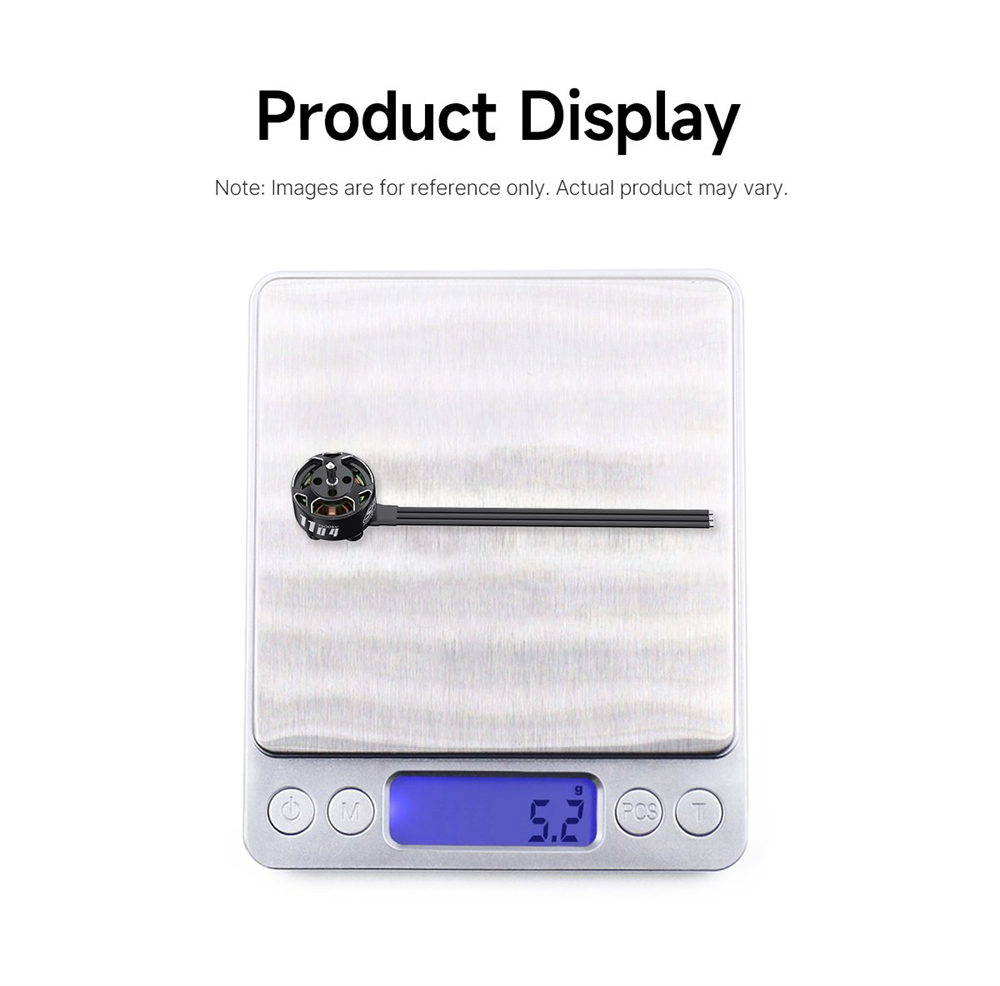

Weight: 5.20.2g(included wire)
Suitable for: 1.6-2.2 inch lightweight drones

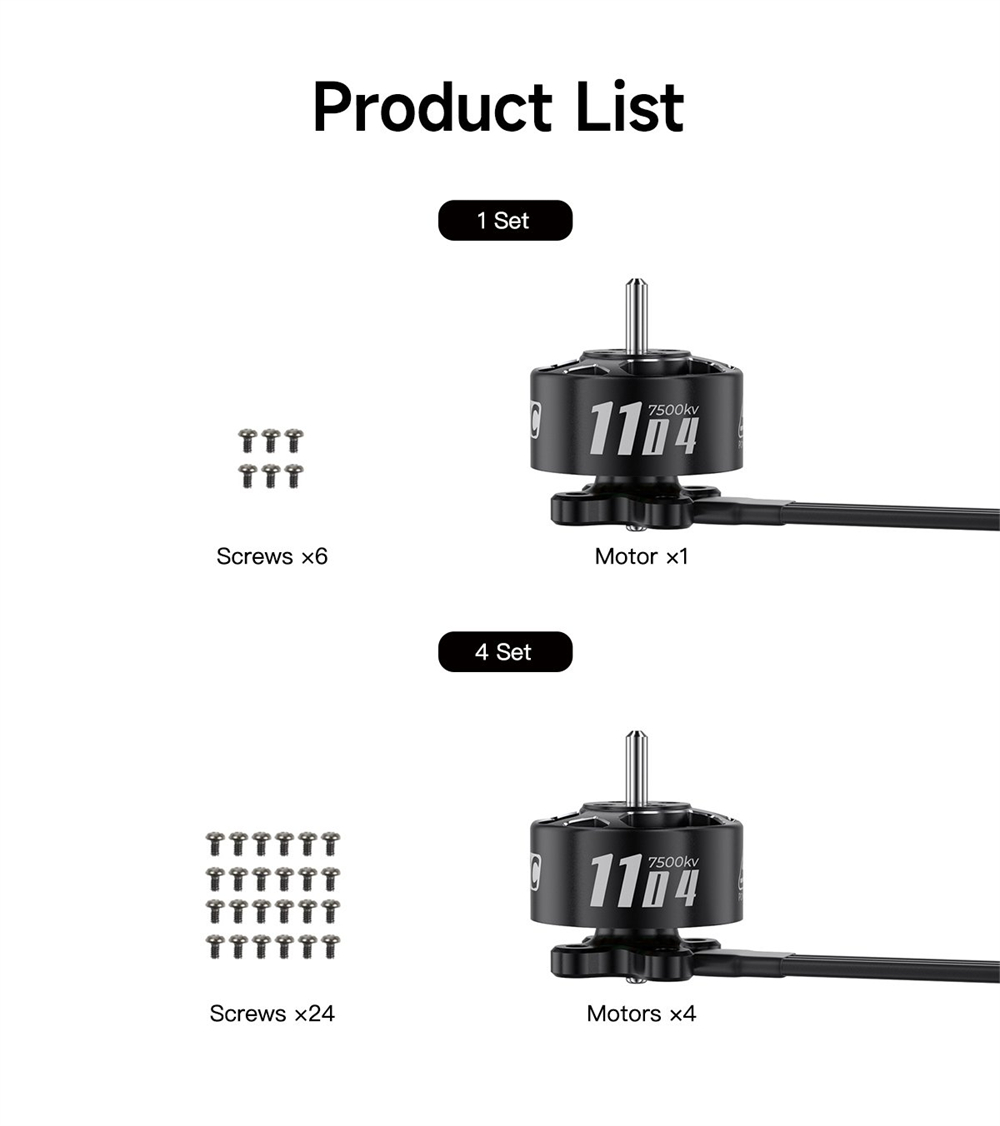

Package Included:
1 x Brushless Motor
OR
4 x Brushless Motors
