Description:

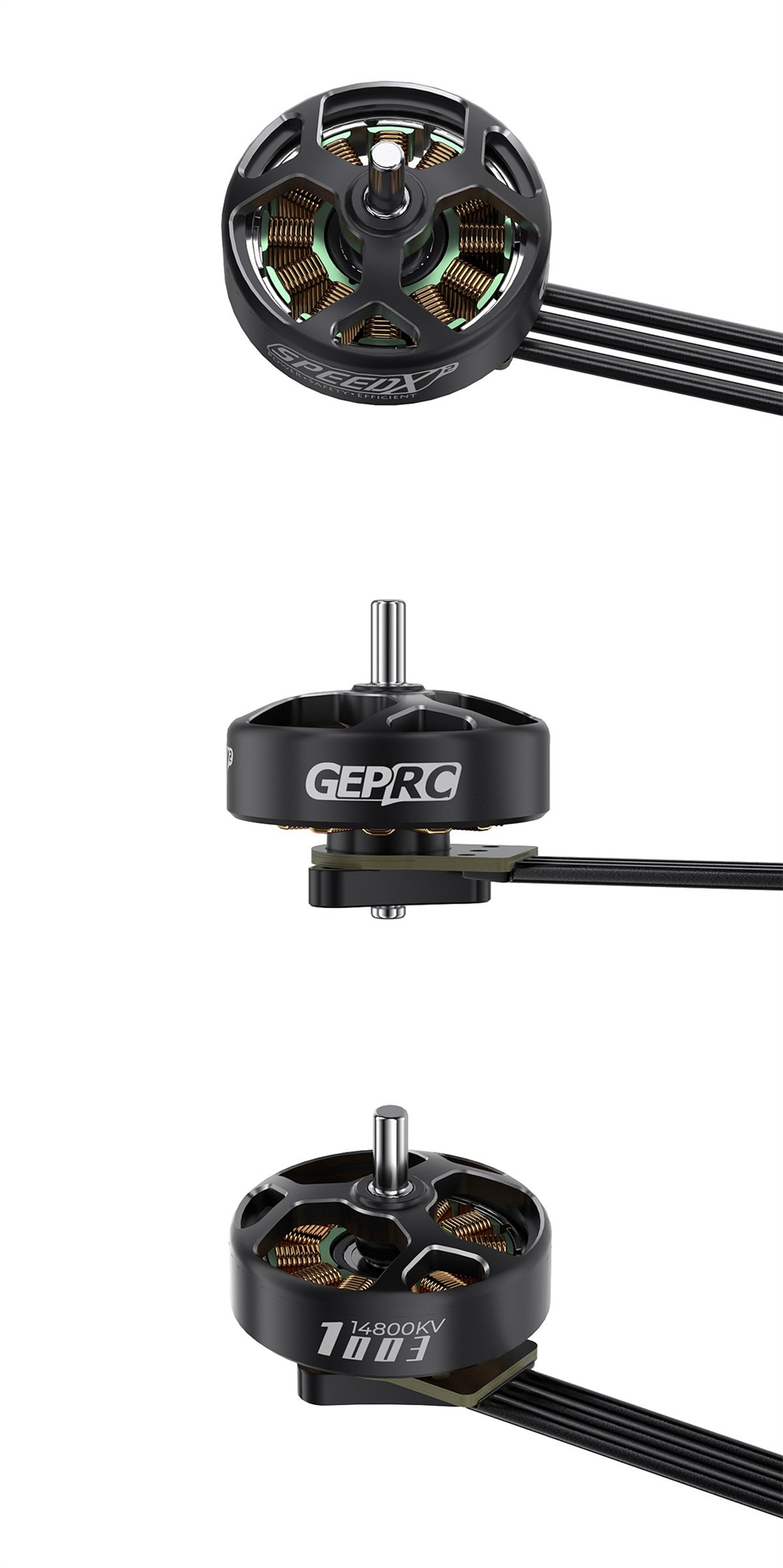

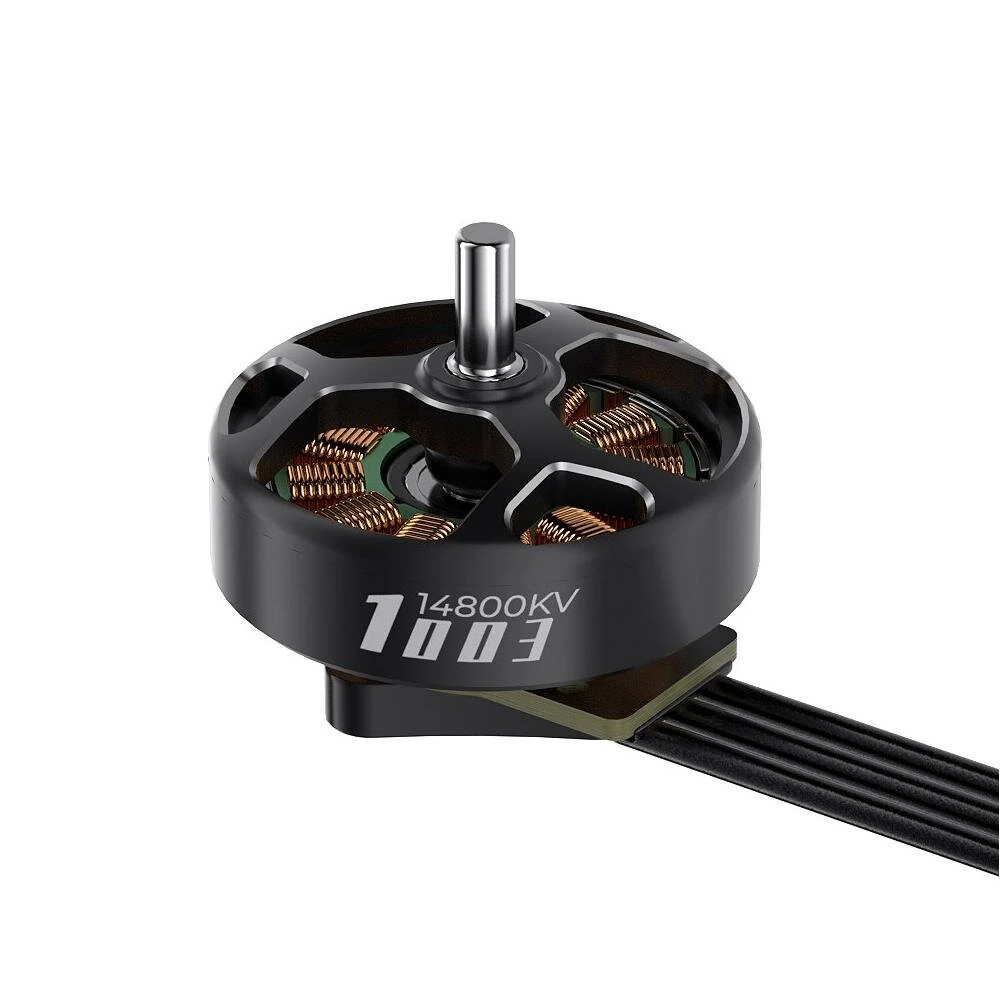

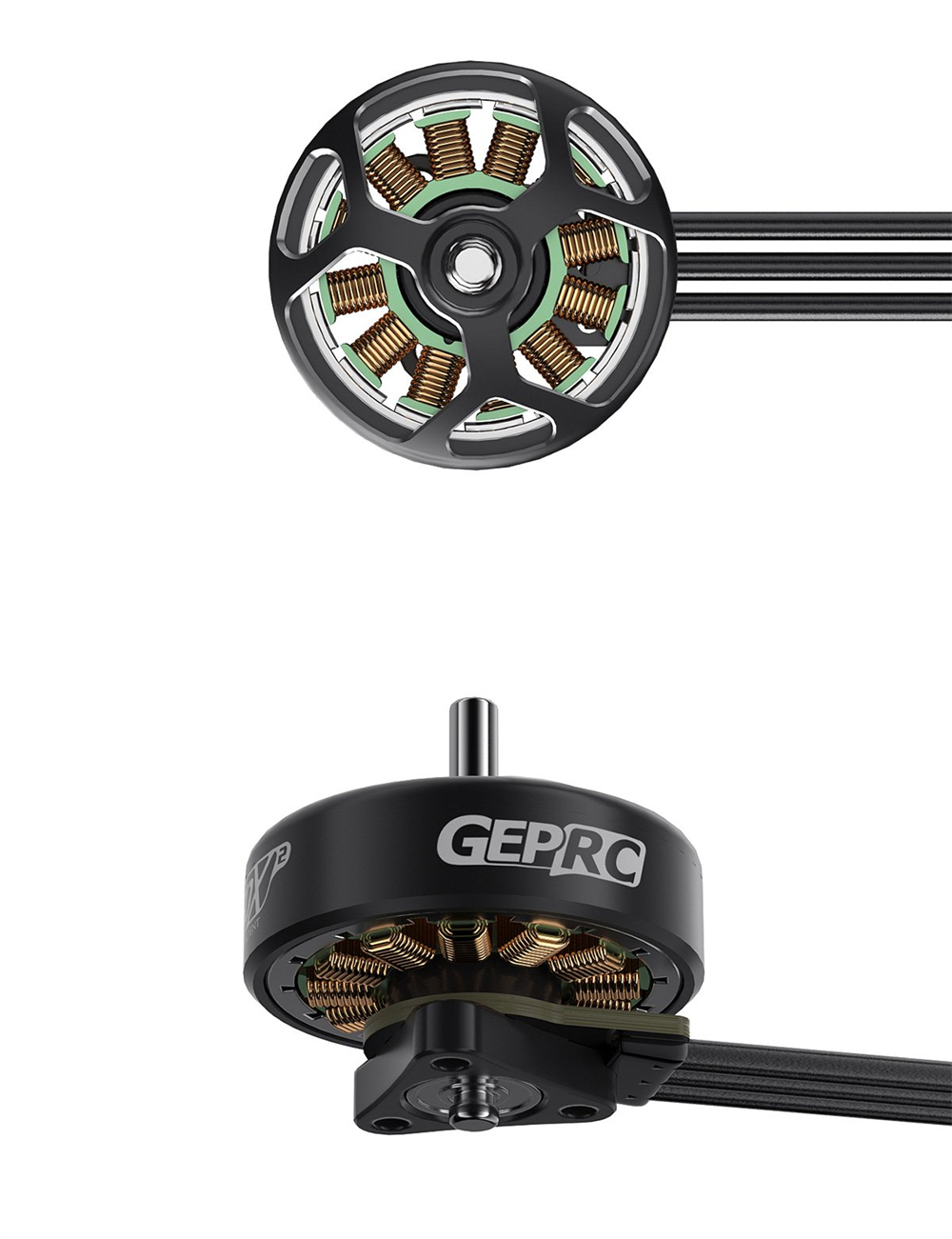

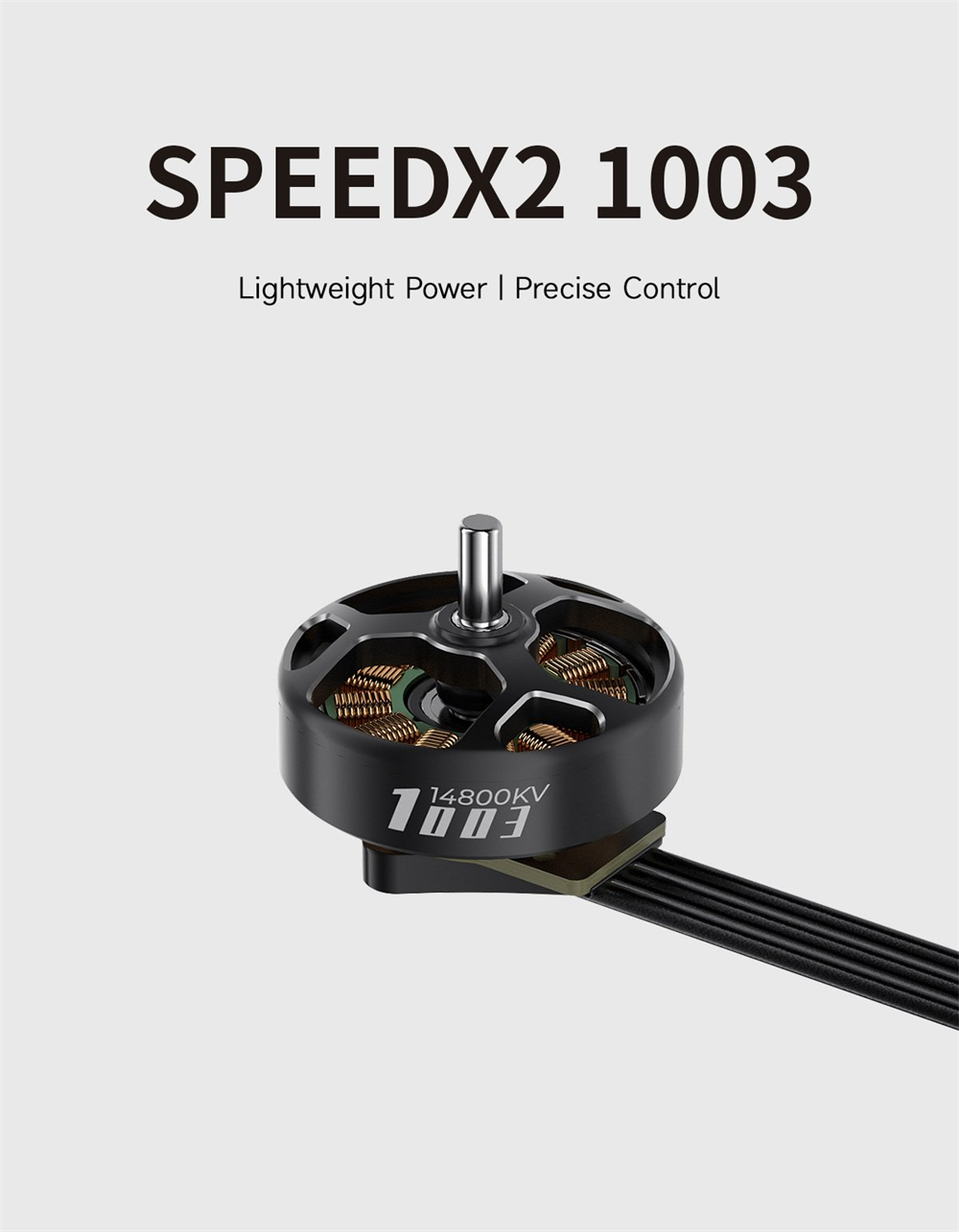

SPEEDX2 1003 is a high-performance brushless motor specially designed for 1.6-inch to 2-inch FPV drones. Built with N52H magnets and 7075 aviation-grade aluminum, it delivers efficient and stable performance in a compact, lightweight design that effectively reduces overall load. Equipped with a Kawasak 1200 stator and an engineering-optimized magnetic circuit, the motor achieves remarkable power output and responsiveness.

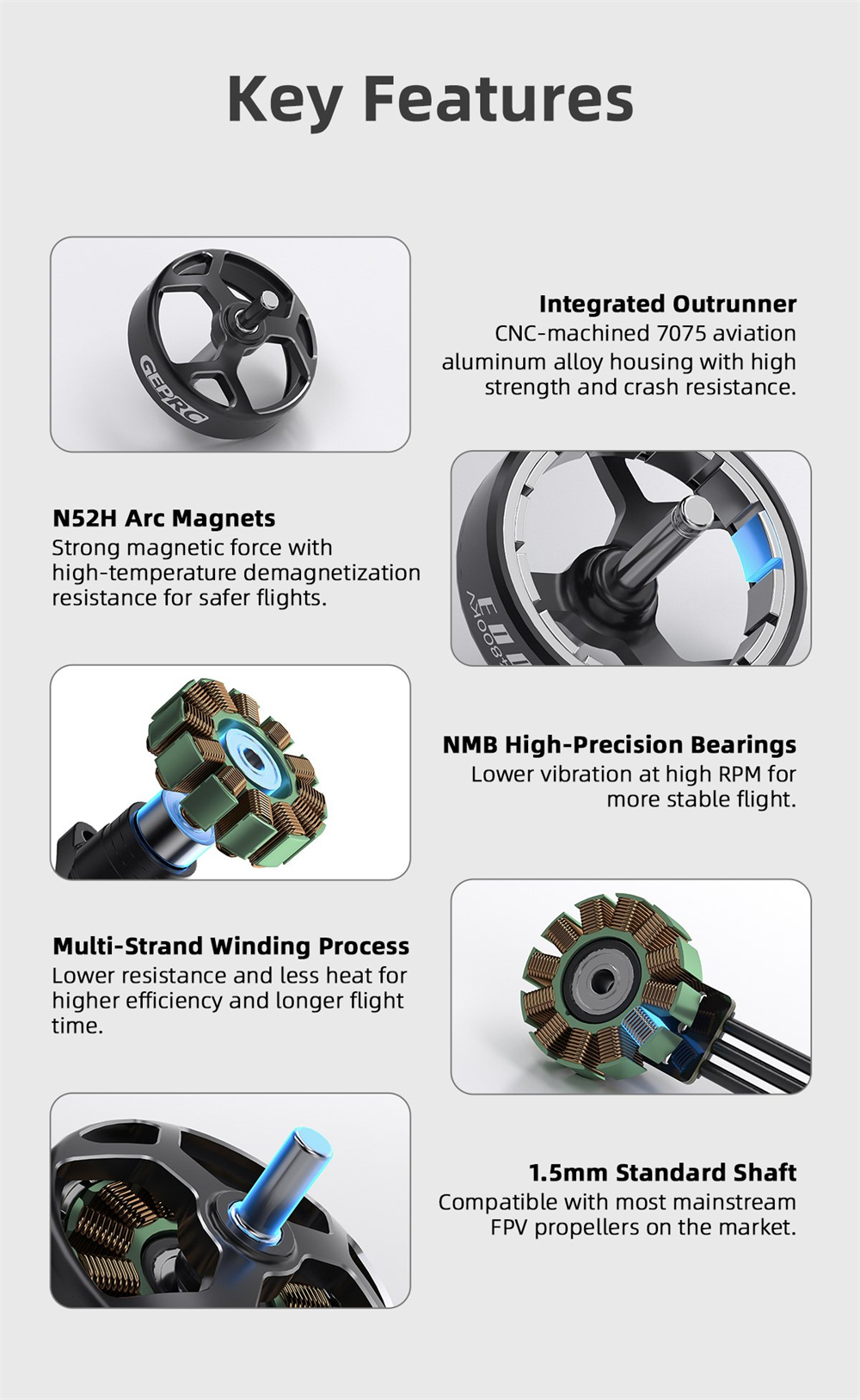

Feature:
– NMB high-precision bearings provide stability with no vibration even at high RPM.
– With a Kawasak 1200 stator and excellent magnetic circuit design, the motor responds quickly and follows control precisely.
– The CNC one-piece aviation aluminum alloy housing weighs only 3.2g, offering greater impact resistance.
– The matte black finish with polished edges and large hollowed design make it visually appealing while reducing copper loss, lowering heat generation, and improving cooling efficiency.

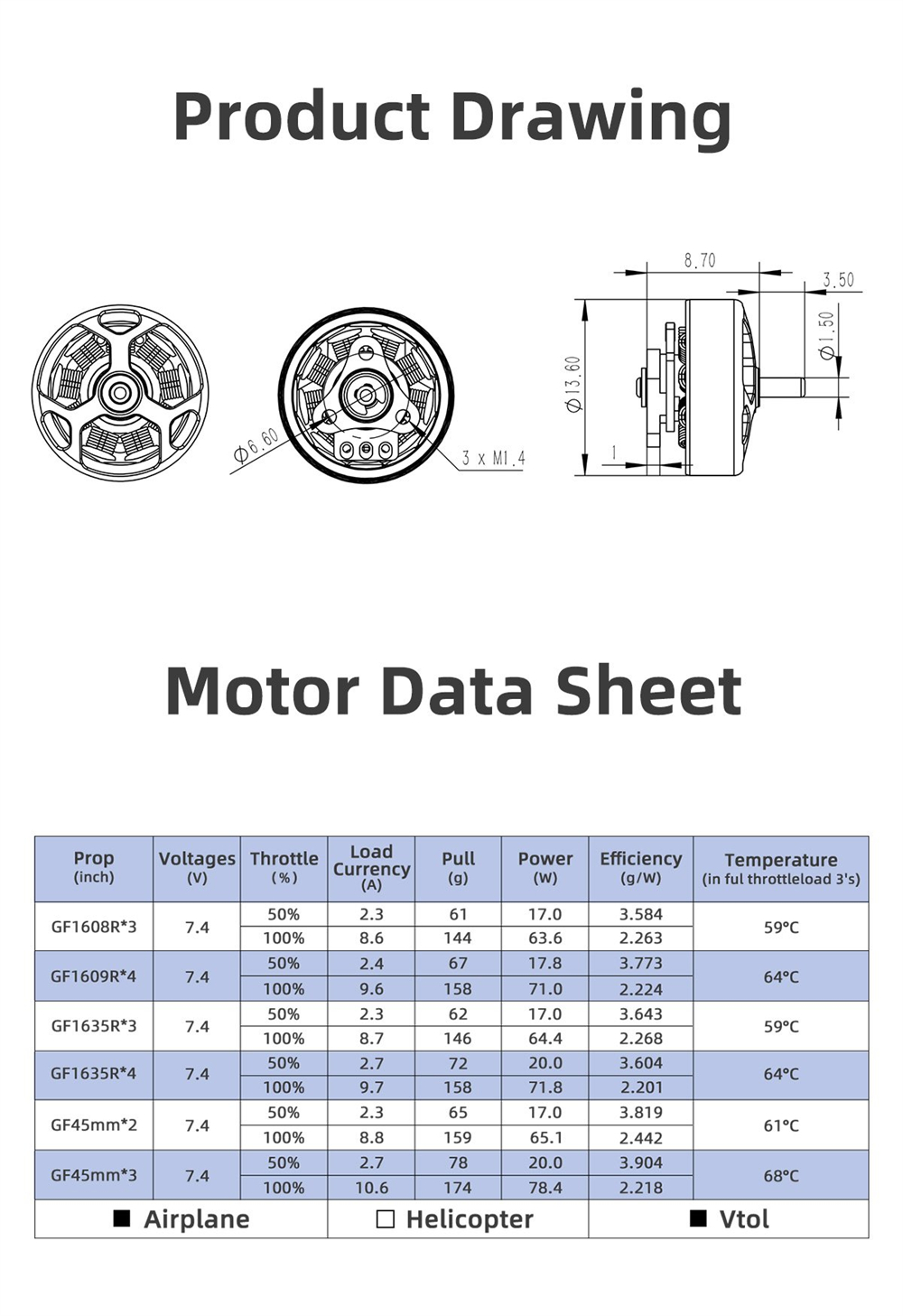

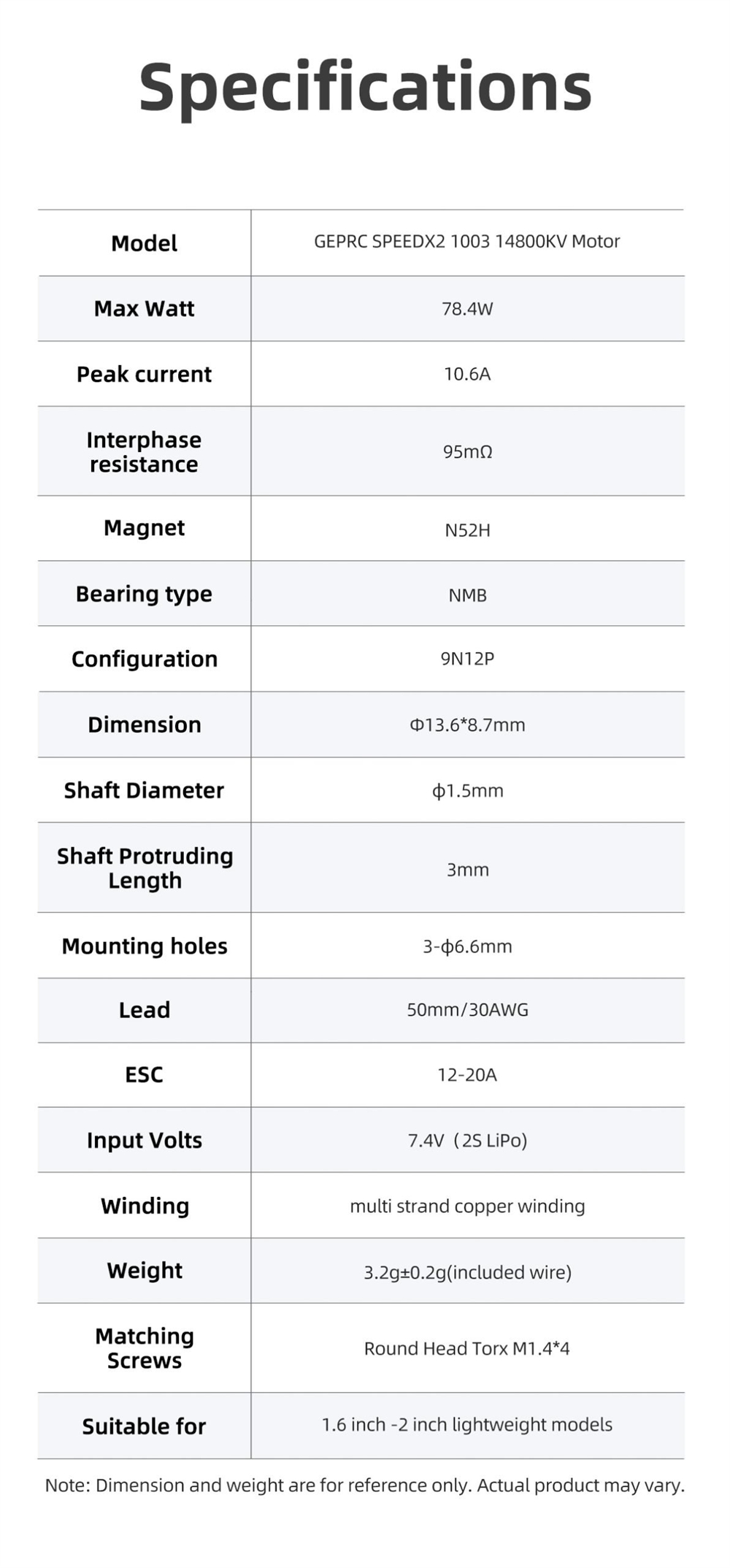

Specification:
Brand: GEPRC
Model: SPEEDX2 1003 14800KV Motor
Max Watt: 78.4W
Input Volts: 7.4V2S LiPo)
Peak current: 10.6A3S
Interphase Resistance: 95m
Magnet: N52H
Bearing Type: NMB
Configuration: 9N12P

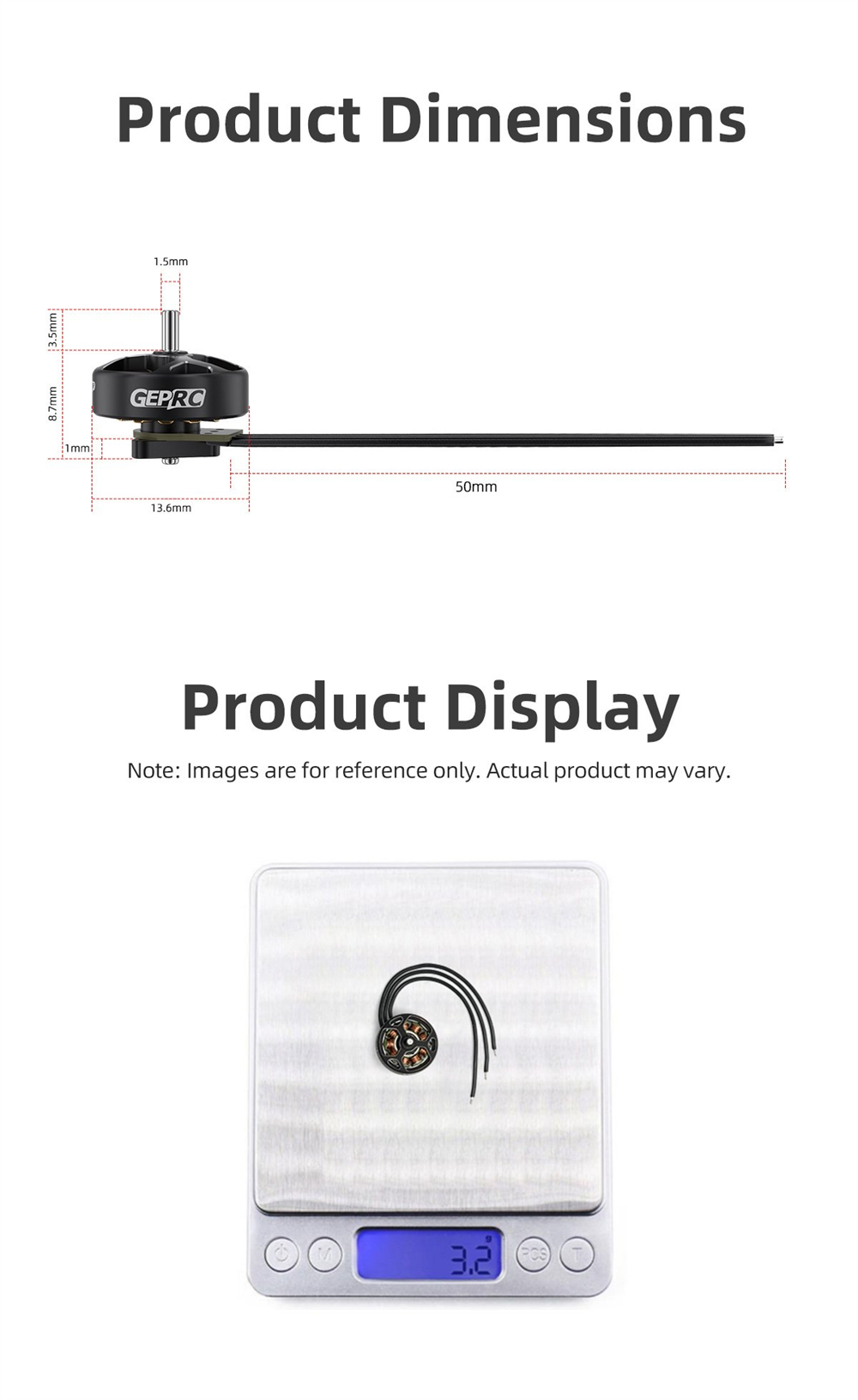

Dimension: 13.6*8.7mm
Shaft Diameter: 1.5mm
Shaft Protruding Length: 3mm
Mounting Holes: 3-6.6mm
Lead: 50mm/30AWG
ESC:12-20A
Winding: multi strand copper winding
Weight: 3.2g0.2g (included wire)
Suitable for: 1.6 inch -2 inch lightweight models

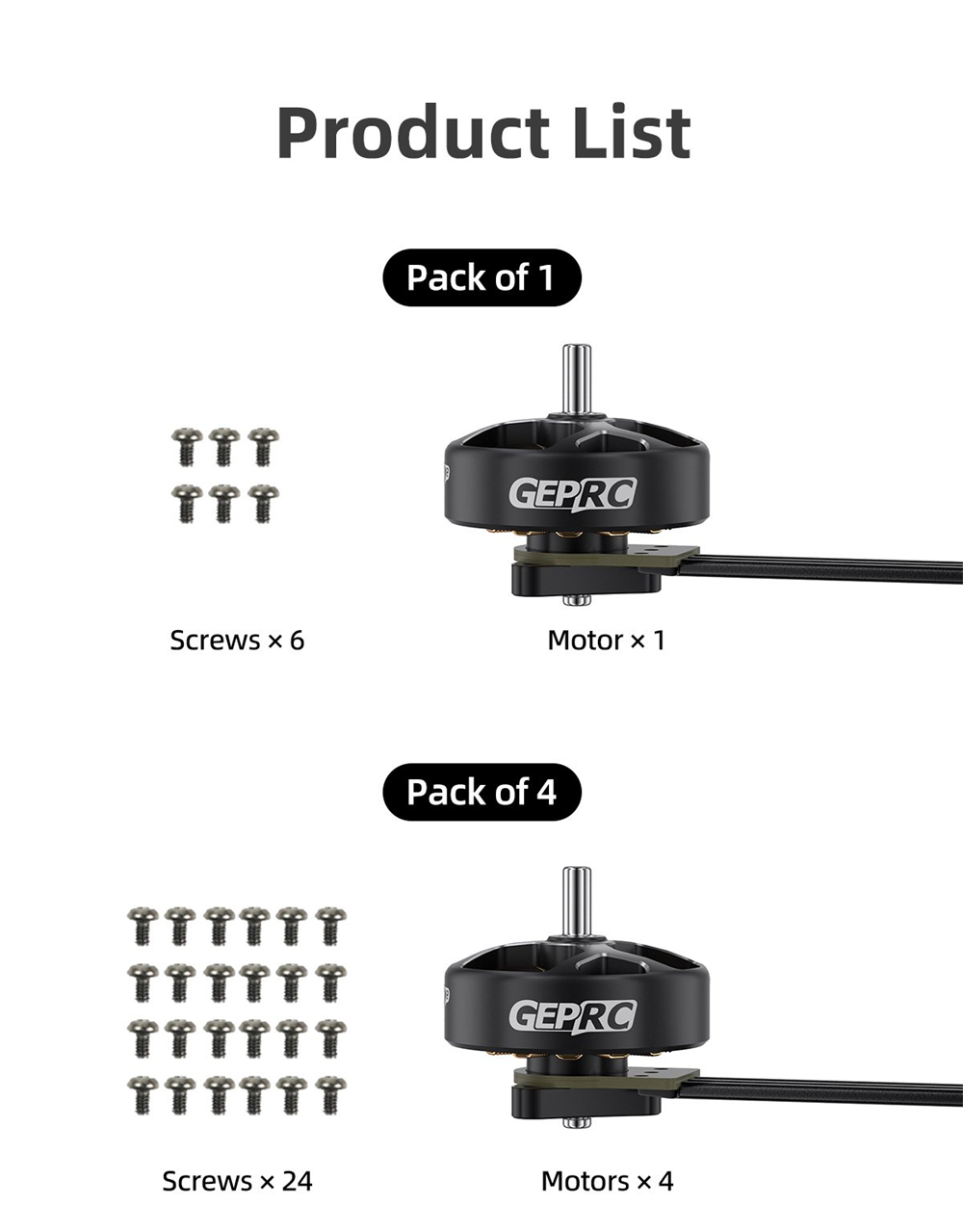

Package Included:
1 x GEPRC SPEEDX2 1003 14800KV Motor
6 x M1.4*4mm Screws
or
4 x GEPRC SPEEDX2 1003 14800KV Motor
24 x M1.4*4mm Screws
