Description
Description:
|
Model: |
5.8G 1.6W Video FPV Transmitter FPV Camera |
|
Frequency: |
5.8GHz |
|
Power: |
1600mw |
|
Input Voltag: |
2-4S |
|
Output power: |
25mW/ 200mW/ 800mW/ 1000mW/ 1600mW/ Pit mode |
|
Protocol: |
IRC Tramp, FatShark Protocol |
|
Channels: |
48CH |
|
RC Drone Spare Parts: |
FPV Transmitter, FPV Antenna,FPV Camera |
|
Antenna Connector: |
MMCX |
|
Camera : |
CMOS 1500TVL Camera |
|
Camera Size: |
19mm*19mm |
|
Camera Power |
DC 5-40V Power |
How to set(Band / Channel / Power Changer Button)
| Channel(Red LED) |
Band (Blue LED) | Power (Orange LED) | |
| Light Flashing | CH1-7 Flash1-7 CH8 light on |
Band1-5 Flash1-5 Band6 light on |
25MW / Flash 1 200MW / Flash 2 800MW / Flash 3 1000MW / Flash 4 1600MW / light is always on PIT mode / light is off |
| The step one | Press to lock in 7 seconds | locked/unlock TX663,three lights are on. (locked The maximumpower is 25mW): |
| The step two | Press and hold for 4 seconds | to enter PowerSelection (Orange LED),Orange light flashingShort Press 1 seconds to change the Power: |
| The step three | Press and hold for 2 seconds |
to enterBand Selection Press 1 seconds to changethe Band1-6: |
| The step four | Press 1 seconds | Press 1 seconds to change the Channel 1-8(Red LED): |

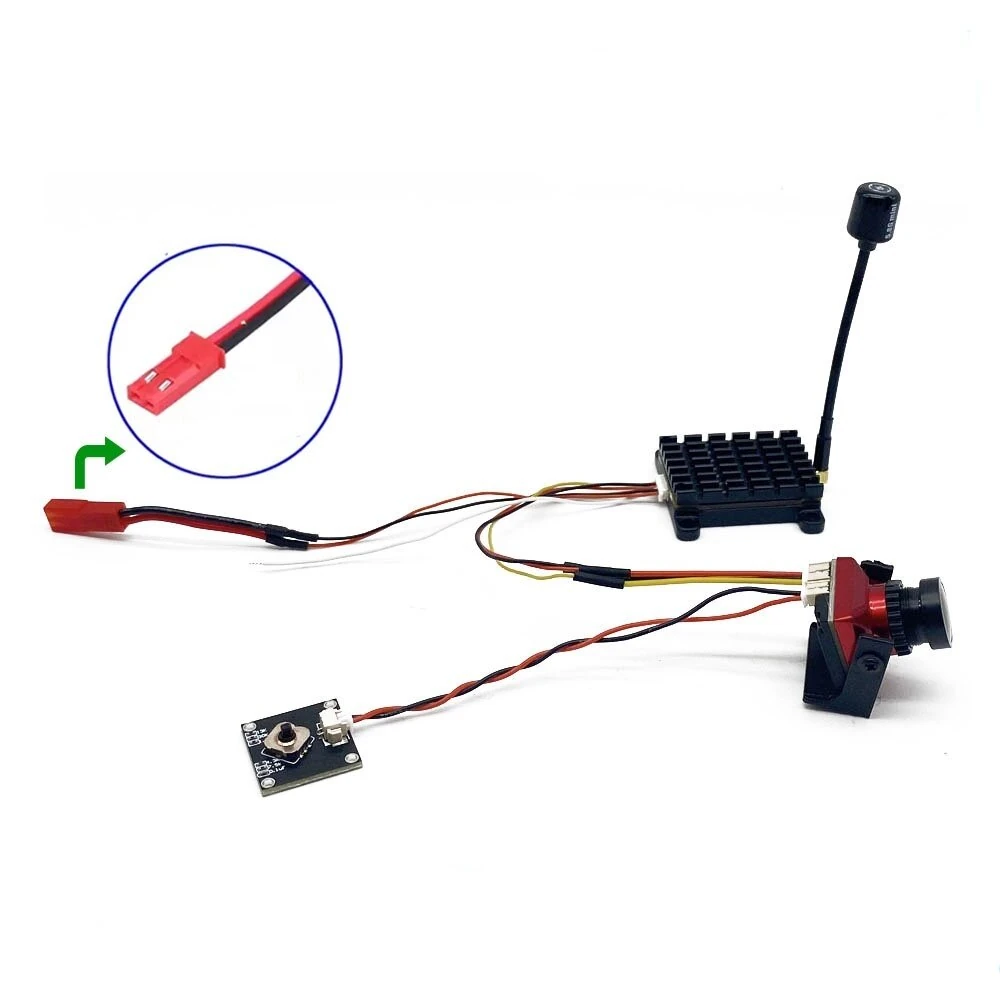

Package included:1 x 1.6W VTX x Camera
Notes1. Installing antenna before use.2. To prevent overheating, provide constant airflow and well ventitlated environment. Install a cooling fan if operating in confined conditions.3. The 5V Output is just used for a Camera and Cooling fan! Don’t connect Power Input or Battery to 5V Output port. Otherwise the VTX will be damaged.
