Description
Specification:
| Brand: | PandaRC |

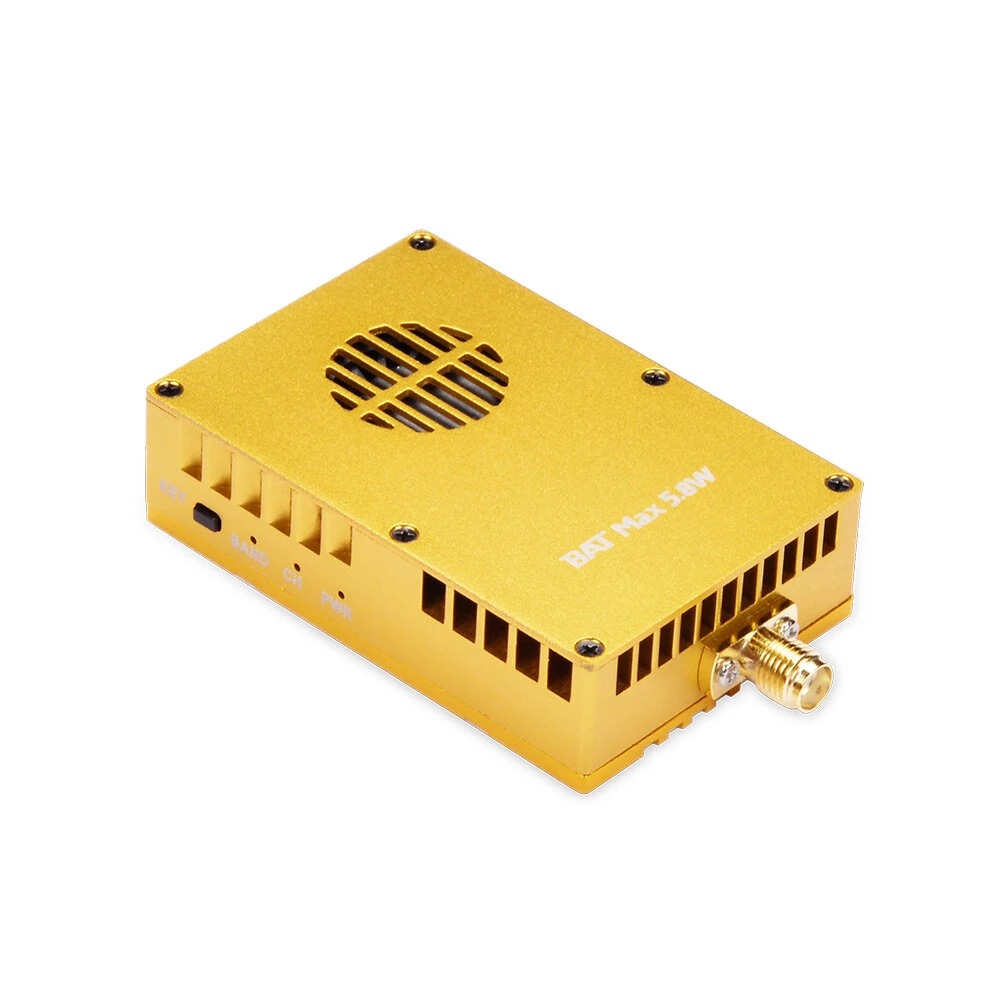

| Product Name: | VT5804-BATMax |
| Output Power: | 0-50-500-1000-2500-5800mW |
| Input Voltage: | 636V |
| Parameter Tuning: | Buttons/OSD |
| Operating Current: | 1W/ 12V@, 1000ma; 5.8W/ 12V@, 2000ma |
| Output Frequency: | 64CH (ABEFRXLS) |
| Antenna interface: | SMA internal foramen |
| Mounting Holes: | 20*20mm30.5*30.5mm |
| Video Format: | NTSC/PAL automatic detection |
| Weight: | 58g (without antenna and power cord) |
| Dimensions: | Length 60mm * Width 40mm * Height 16.5mm |
Features:
1. Adjustable Power Transmission: Supports multiple power outputs from 50mW to 5800mW, enabling customizable strength for various applications and extended transmission ranges.
2. 64-Channel Frequency Range: Offers wide compatibility with 64 selectable channels across frequency bands from A-S, ensuring stable and interference-free connections.
3. High Compatibility Voltage Input: Operates with a versatile input voltage range of 6-36V, suitable for varied drone setups and FPV devices.
4. Lightweight Compact Design: Weighs only 58g without accessories, with dimensions of 60mm*40mm*16.5mm, delivering portability and easy installation.
5. Automatic Video Format Detection: Compatible with NTSC/ PAL formats, ensuring seamless video transmission across diverse standards.
Package included:
1 x VT5048-BAT Max
