Description
Specification:
| Brand: | PandaRC |

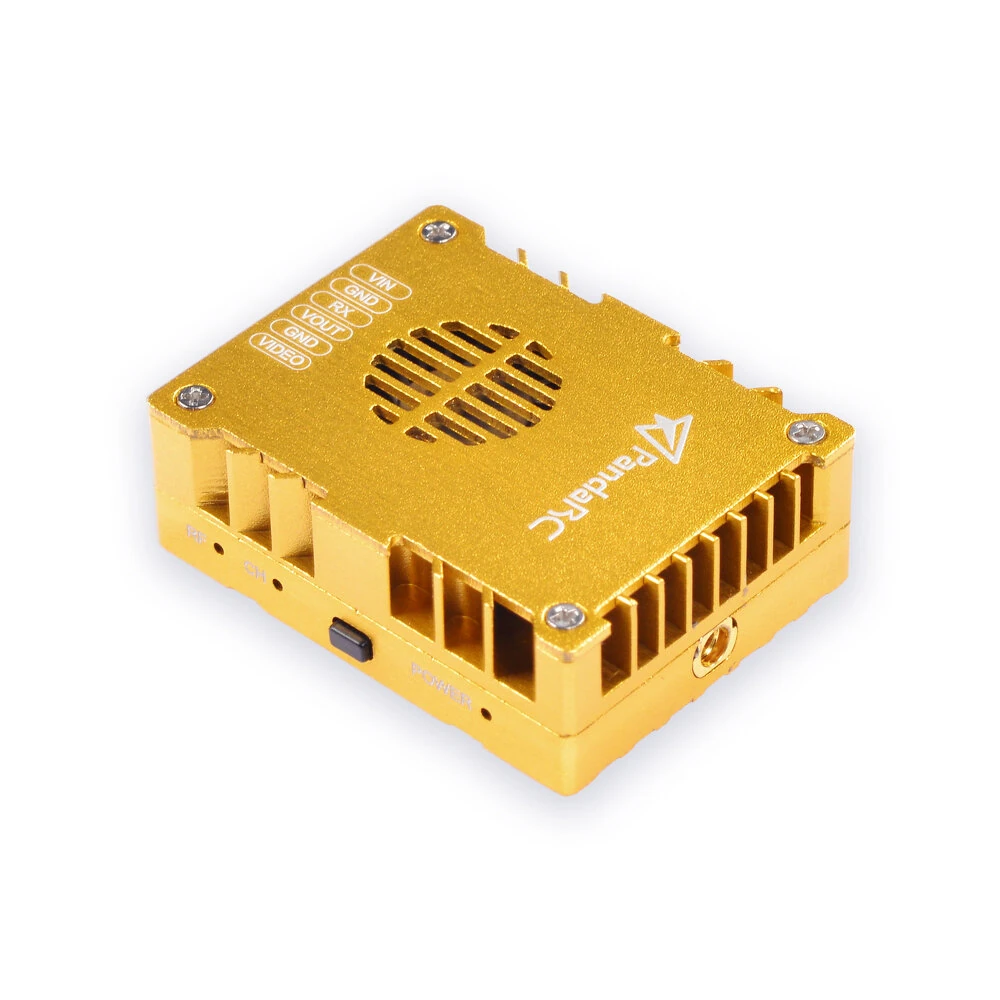

| Product Name: | VT5804-BAT PRO |
| Output Power: | 0-25-800-1600-2500-2800mW |
| Input Voltage: | 6-36V |
| Operating Current: | <650ma@12V, 1600mW; <900ma@12V, 2800mW |
| Antenna Interface: | MMCX |
| Video Format: | NTSC/PAL automatic detection |
| Parameter Tuning: | Buttons/OSD |
| Output Frequency: | 64CH(A-B-E-F-R-X-L-S) |
| Mounting Holes: | 20*20mm |
| Weight: | 20g (without antenna and power cord) |
| Dimensions: | Length 38mm * Width 29mm * Height 13mm |
Features:
1. High Power Output: With adjustable power levels from 25mW to 2800mW, the VT5804-BAT PRO allows you to select the optimal transmission strength, ensuring reliable video signal even over long distances for your FPV flights.
2. Versatile Voltage Input: The transmitter supports a wide voltage range of 6-36V, making it compatible with a variety of battery setups, offering flexibility and convenience for pilots in different settings.
3. Multi-Channel Selection: Featuring 64 channels (A-B-E-F-R-X-L-S), pilot can easily switch frequencies to avoid interference with other pilots, enhancing the overall flying experience in crowded areas.
4. Lightweight Design: Weighing just 20 grams (without antenna and power cord), the VT5804-BAT PRO minimizes impact on your drones flight performance while providing high-quality video streaming capabilities.
5. User-Friendly Operation: Equipped with intuitive buttons and OSD parameter tuning, it simplifies adjustments on-the-fly, making it suitable for both beginners and experienced pilots seeking quick access to settings.
Package Included:
1 x VT5804-BAT PRO
1 x MMCX Antenna
1 x SMA to MMCX Adapter
2 x Input Cables
