Description
Specifications:
| Brand: | NEW BEE FLY |

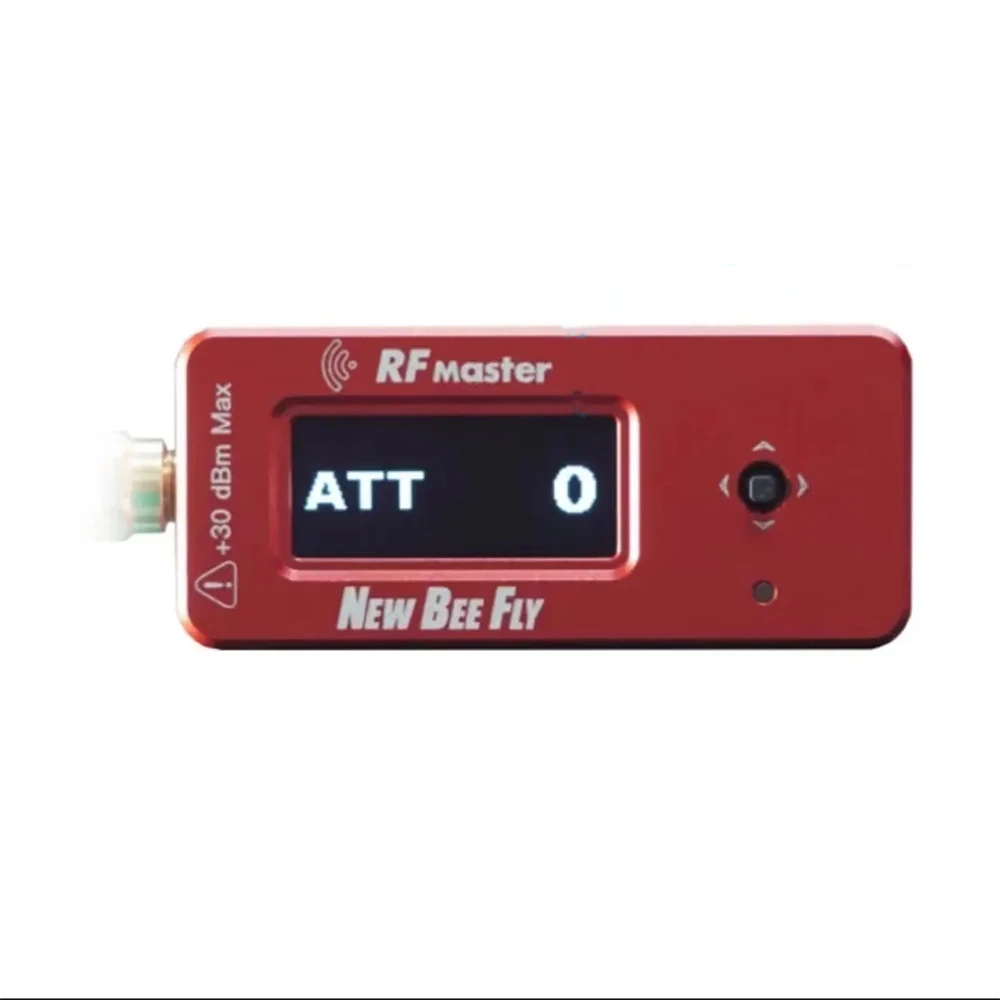

| Name: | RC RF Immersion Power Meter |
| Bare Metal Measuring Power Range: | -55dbm ~ 30dbm |
| Oled Resolution: | 128×64 |
| Maximum Refresh Rate: | 100hz |
| Lipo Battery: | 3.7v 400mah |
| Usb Charging:: | 5V=1A |
| Size: | 59mm*26mm*16mm |
Features:
— Built-in automatic switching 30dBm attenuator while brings a wider measurement range.
— Supports extermal attenuator.
— Easy to operate, no secondary menu.
— High-bright and High-refresh OLED screen RF power sampling rate is up to 1000HZ.
— Built-in lithium battery, Charging with USB-C.
— Output data to PC via USB-C.
— Aluminum alloy shell.
RF Master Package includes:
1x RF Master
1x 5G Antenna
1x SMA To SMA 5cm Adapter Cable
1x SMA To MMCX 5cm Adapter Cable
1x SMA To IPEX 1 5cm Adapter Cable
RF Master 5W 6GHz Attenuator Package includes:
1x RF Master
1x 5G Antenna
1x SMA To SMA 5cm Adapter Cable
1x SMA To MMCX 5cm Adapter Cable
1x SMA To IPEX 1 5cm Adapter Cable
1x 5W 6GHz Attenuator
