Description:

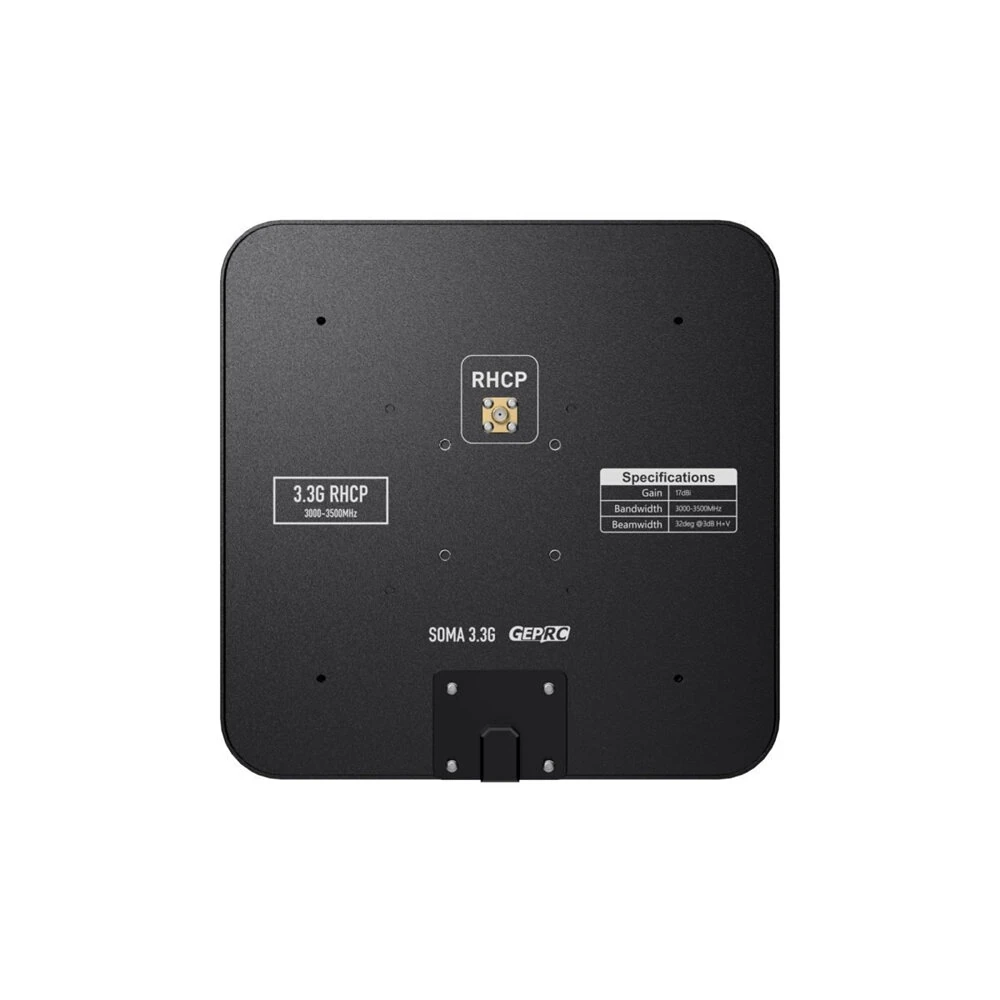

The GEPRC SOMA 3.3G Directional Flat-Panel Antenna features a dual-layer PCB RF design, offering a high gain of up to 17dBi and a low average VSWR of 1.47, ensuring excellent signal reception.
Its compatible with various brackets and is built with a 1/4 aluminum allloy base. The antenna features a sleek, high-tech design, with an integrated injection-molded casing for superior structural integrity
Features:
– Smooth, ultraathin design.
– Low VSWR, high gain directional antenna, up to 17dBi.
– 1/4 aluminum allloy base, compatible with various brackets.
– High-quality SMA connector for lower impedance and better transmission efficiency.
– Each antenna undergoes meticulous testing with a spectrum analyzer to ensure VSWR compliance with industry standards.
Specifications:
| Brand: | GEPRC |
| Model: | SOMA 3.3G Directional Patch Antenna |
| Center Frequency: | 3.3GHz |
| Bandwidth: | 3.0GHz~3.5GHz |
| Polarization: | RHCP |
| Gain: | 17dBi |
| Axial Ratio: | 3 |
| SWR | 1.47 |
| Radiation Efficiency: | 86% |
| Cross polarization suppression: | -25dB |
| Connector Type: | SMA (external thread, internal hole |
| Overall Dimension: | 203.5mm x 203.5mm x 20mm |
| Antenna Weight: | 293g |
| Enclosure Material: | ABS |
Package included:
1 x SOMA 3.3G Directional Patch Antenna
