Description
Specifications:

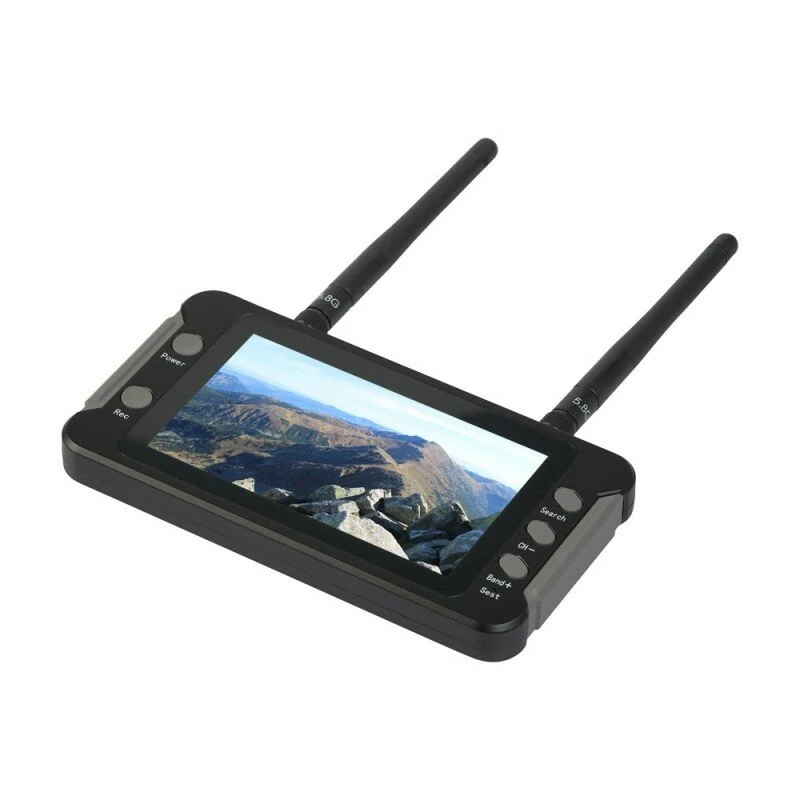

| Model: | Foxeer 4.3′ Monitor |
| Frequency: | 5.8G |
| Channel: | 40CH |
| Aspect Ratio: | 16:9 |
| Resolution: | 800*480 |
| Brightness: | 500cd/m2 |
| Video Recording Modes: | DVR(VGA/D1/HD) |
| Format: | MJPEG AVI |
| Time: | Off/3/5/10 min |
| Sound: | On/Off |
| Battery: | 3.7V 1200mAh |
| TF Card: | Up to 32G |
| Connector: | 3.5mm jack: Audio-Out / AV-in |
| Antenna Type: | RP-SMA male |
| Working Voltage: | DC 5V/2A(USB) DC 5-23V |
| Languages: | English/Chinese |
| Frame Rate: | 30fps |
| Weight: | 159g |
| Working Temperature: | -10 ~ +65 |
| Size: | 146x80x13mm |
| Package Includes: | 1*Monitor, 2*5.8G Antenna, 1*XT60 Expanded Cable, 1*USB Cable |
| Band | CH1 | CH2 | CH3 | CH4 | CH5 | CH6 | CH7 | CH8 |
| Band A | 5865 | 5845 | 5825 | 5805 | 5785 | 5765 | 5745 | 5725 |
| Band B | 5733 | 5752 | 5771 | 5790 | 5809 | 5828 | 5847 | 5866 |
| Band E | 5705 | 5685 | 5665 | 5645 | 5885 | 5905 | 5925 | 5945 |
| Band F | 5740 | 5760 | 5780 | 5800 | 5820 | 5840 | 5860 | 5880 |
| Band R | 5658 | 5695 | 5732 | 5769 | 5806 | 5843 | 5880 | 5917 |
– This product is about to be discontinued, and we are now clearing out the inventory at a special price! Hurry and buy now.
– Please click [ FPV Monitor] to go directly to the purchase page.’
