Description
Description:
Flywoo Bipolar, its latest Dual-Band series antenna, is meticulously engineered for the 03 air unit. This series, featuring two types of antennas – Dual 5.8GHz/2.4GHz and Dual 5.8GHz, is designed to enhance transmission distance while boasting exceptional interference resistance capabilities.
The Flywoo Bipolar Dual-Band 5.8GHz/2.4GHz UFL Antenna incorporates cutting-edge dual-band, dual-polarized technology to ensure performance and compatibility that is better than the DJI 03 air unit.
The Flywoo Bipolar Dual 5.8GHz UFL Antenna stands out as a true dual 5.8G antenna. It’s celebrated for its lightweight design and durability, offering stronger signal coverage and stable transmission. The lightest 90mm version weighs in at just 2.9g!
Specifications:

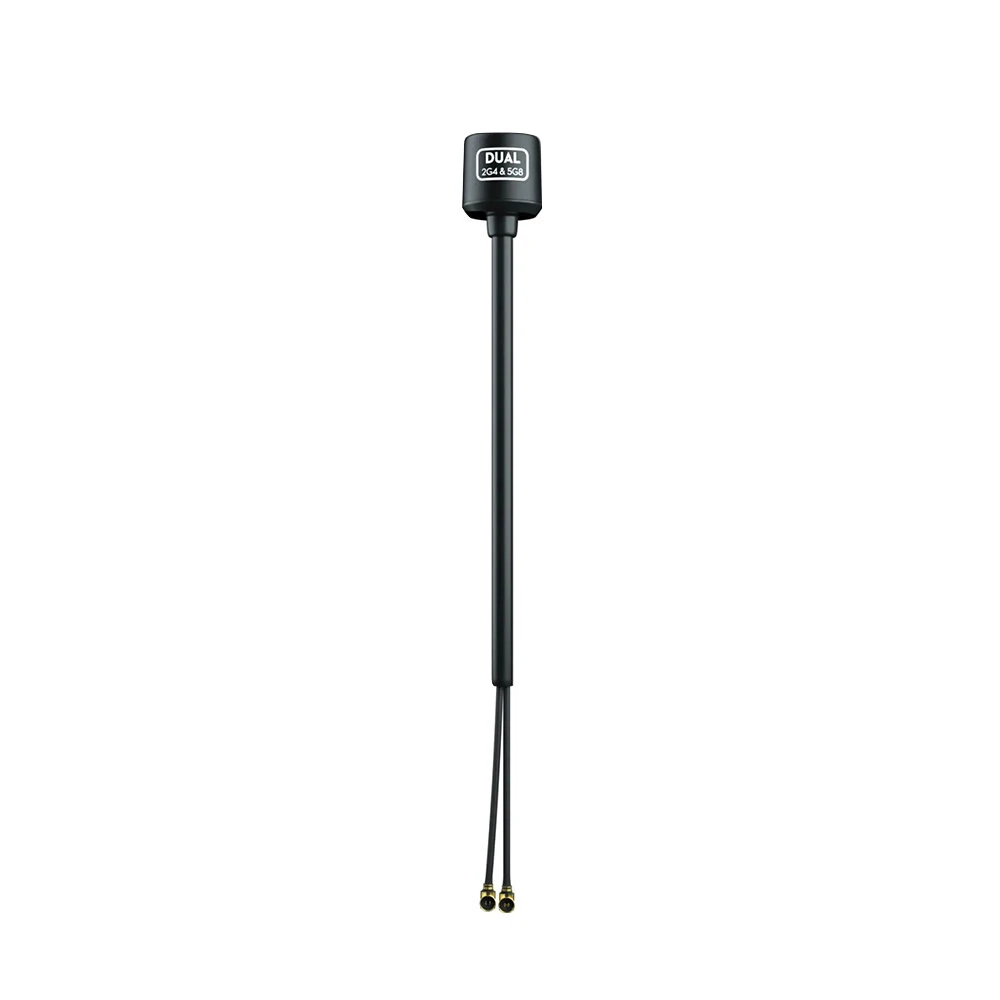

Flywoo Bipolar Dual-Band 5.8GHz/2.4GHz UFL Antenna
Frequency Range: 2400-2500MHz/5700-5900MHz
Gain: 2.5dBi/3.8dBi – VSWR1.6
Polarization: Linear
Impedance: 50
Connector: 2x U.FL (2x IPEX1)
Cable: RF1.13
Weight: 5.3g
Size: 16x17mm
Flywoo Bipolar Dual 5.8GHz UFL Antenna
Frequency Range: Dual 5700-5900MHz
Gain: Dual 2.8dBi
VSWR1.6
Polarization: Linear
Impedance: 50
Connector: 2x U.FL (2x IPEX1)
Cable: RF1.13
Weight: 2.9g
Size: 14x14mm
Features:
1. Dual-frequency 5.8Ghz / 2.4Ghz UFL antenna for improved signal reception and stability.
2. Suitable for use with Flywoo DJI O3 drones, providing a reliable connection between the drone and the remote control.
3. Compact and lightweight design for easy installation and transportation.
4. High-quality materials ensure durability and long-lasting performance.
5. Enhance your drone flying experience by reducing signal of interference and improving image transmission.
Package includes:
1 X Flywoo Bipolar Dual-Band 5.8Ghz/2.4Ghz UFL Antenna
